Saturn Truck
>>
2003
>>
VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
A Diagnostic System Check
A Diagnostic System Check

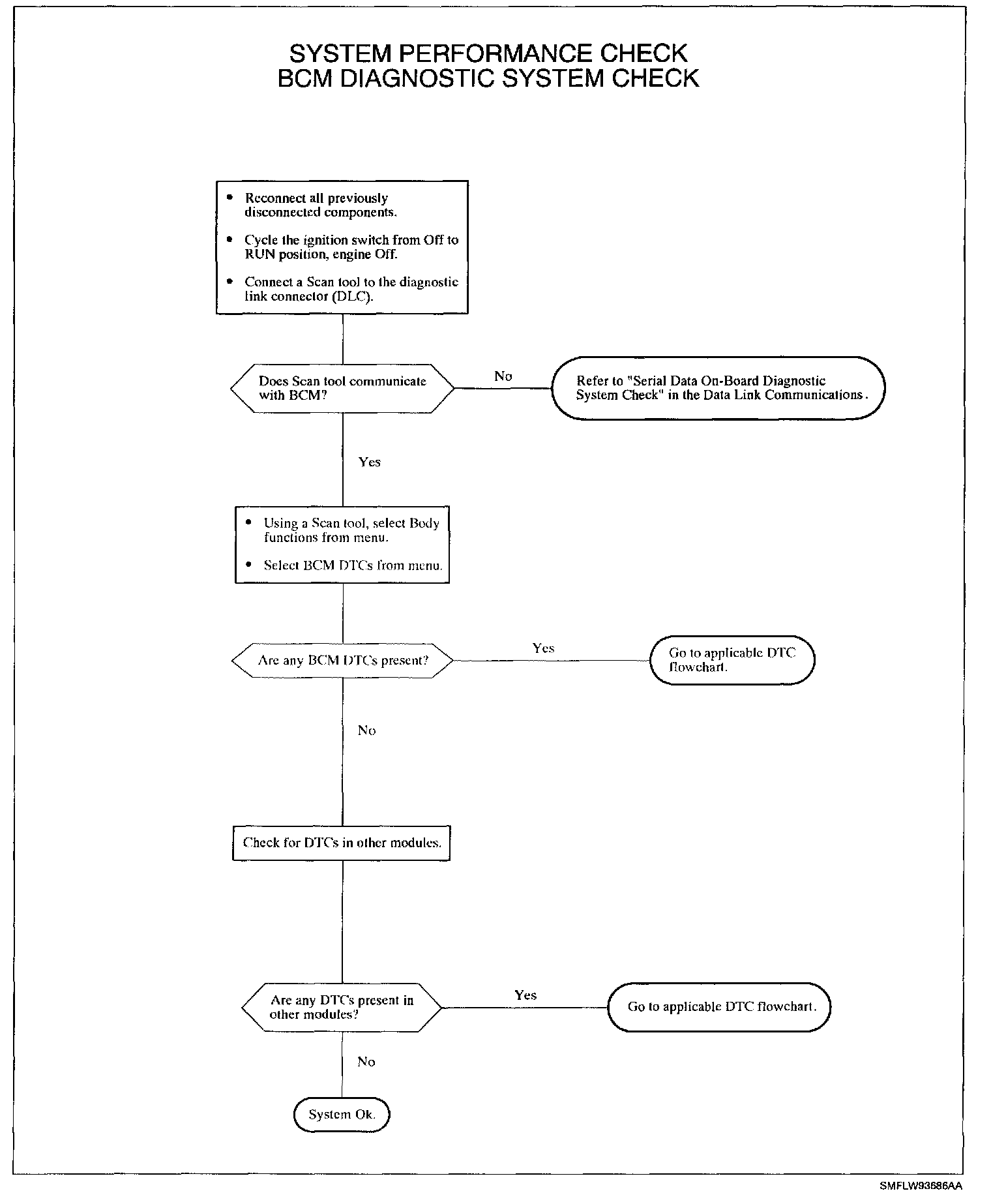

Diagnostic Chart:
