Saturn Truck
>>
2003
>>
VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Diagram
System Diagram

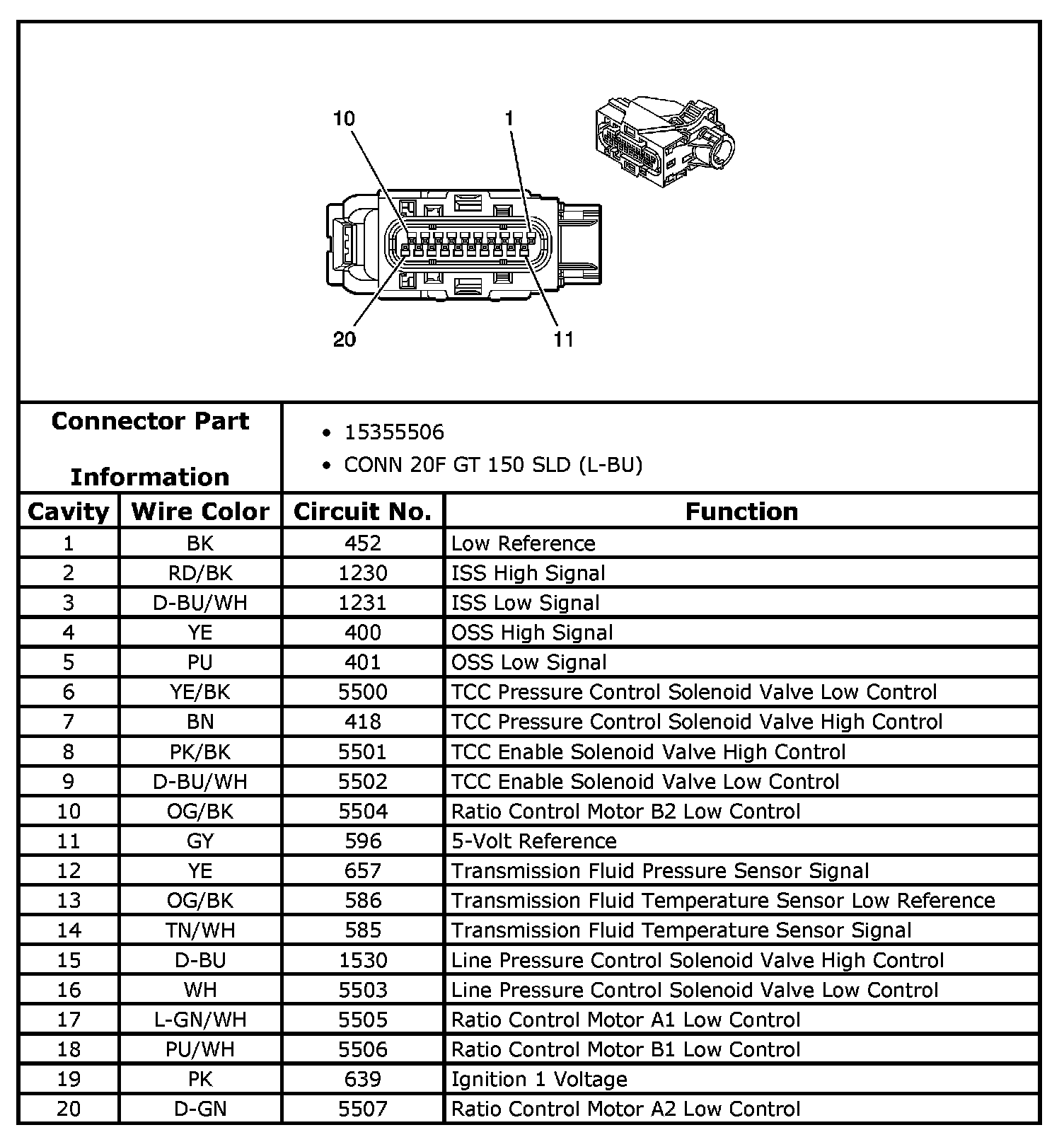

Transmission Inline Harness 20-Way Connector, Engine Side
