Home
>>
Saturn Truck
>>
2002
>>
VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Transmission Position Sensor/Switch, CVT
Transmission Position Sensor/Switch, CVT

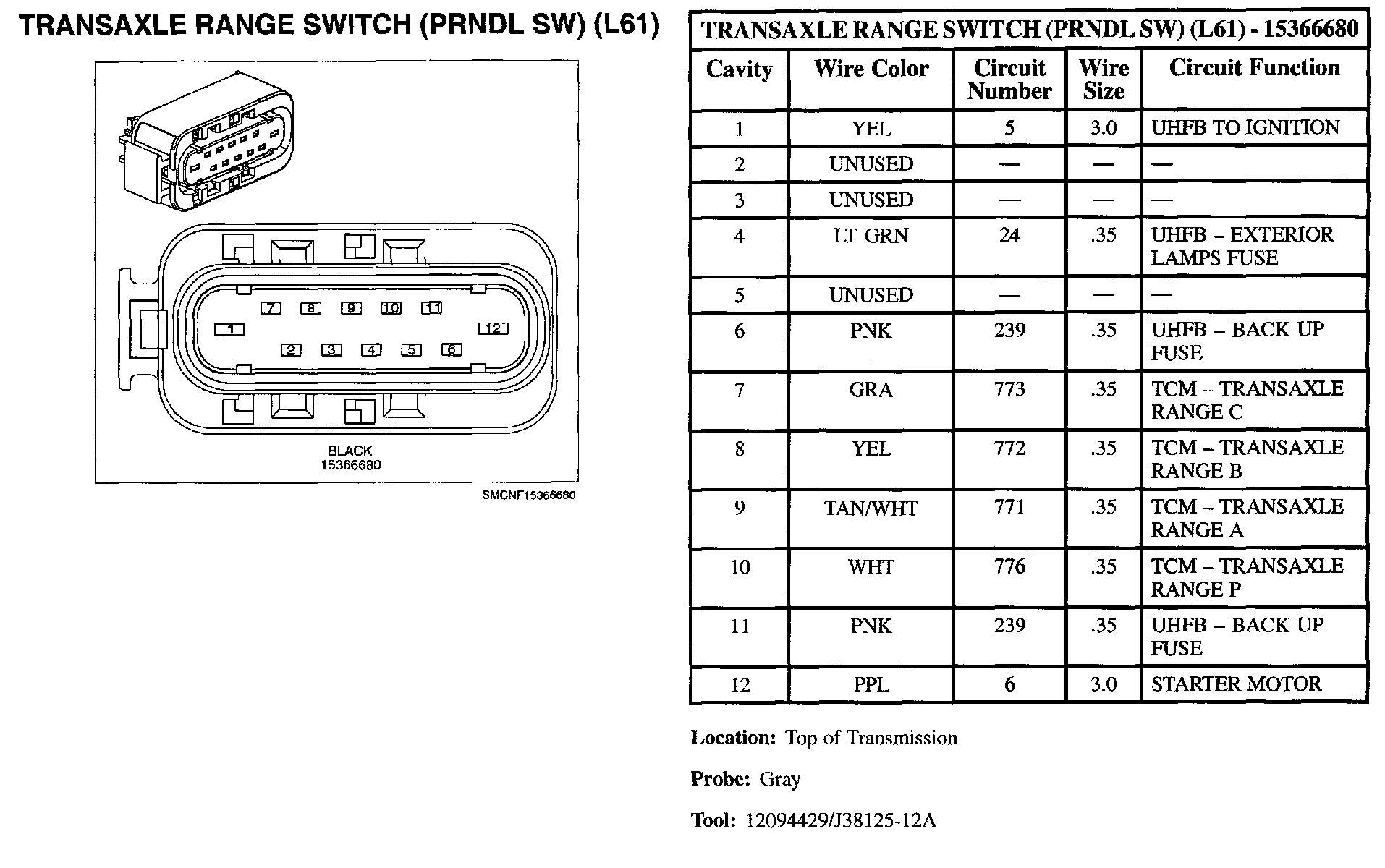

Trasaxle Range Switch (PRNDL SW) L61:
