Home >> Saab >> 1990 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Ground Distribution >> Ground Point 158

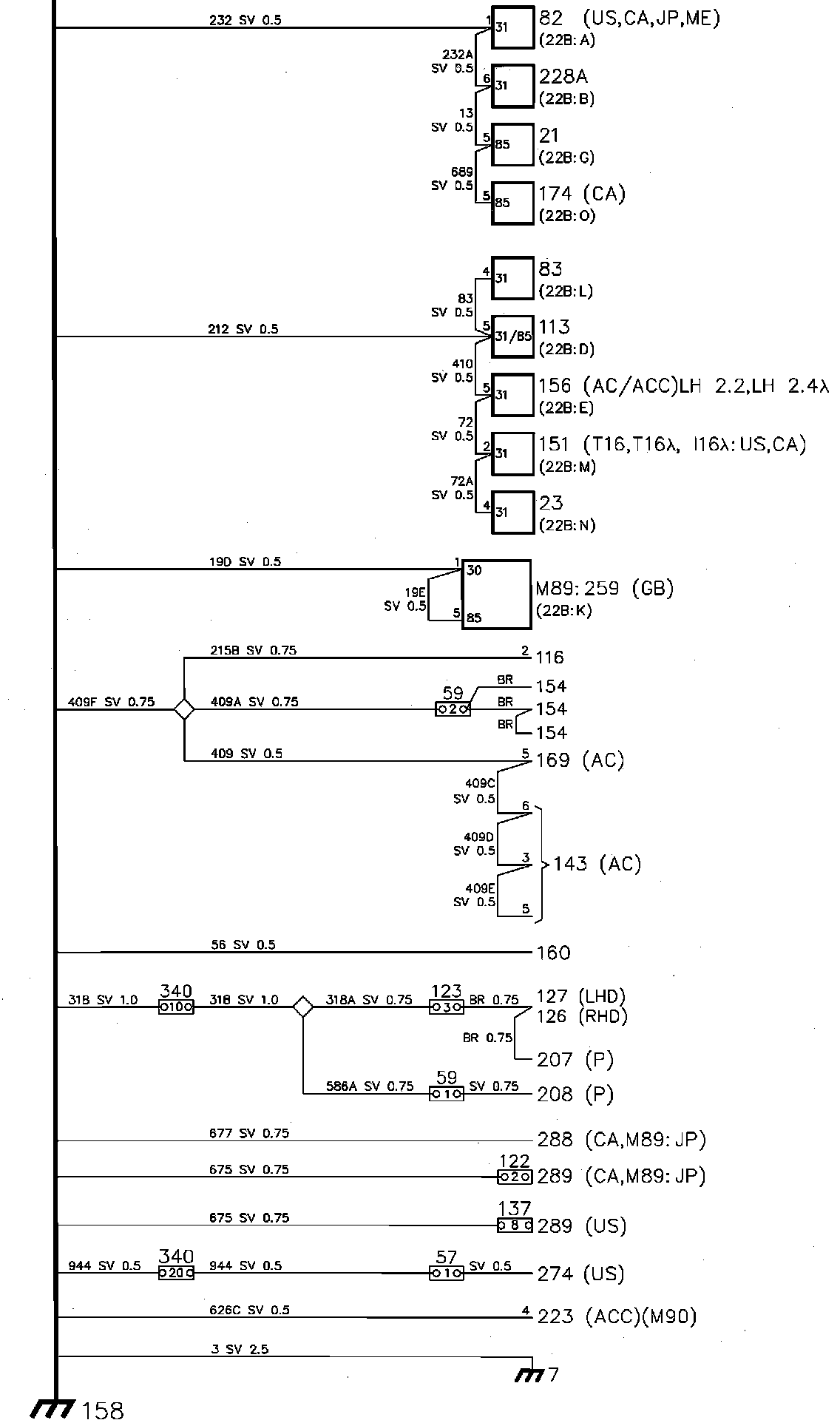

Ground Point 158

Ground 158:
