Home
>>
Saab
>>
1990
>>
9000 L4-2290cc 2.3L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Power Distribution
>>
Terminal +54
Terminal +54

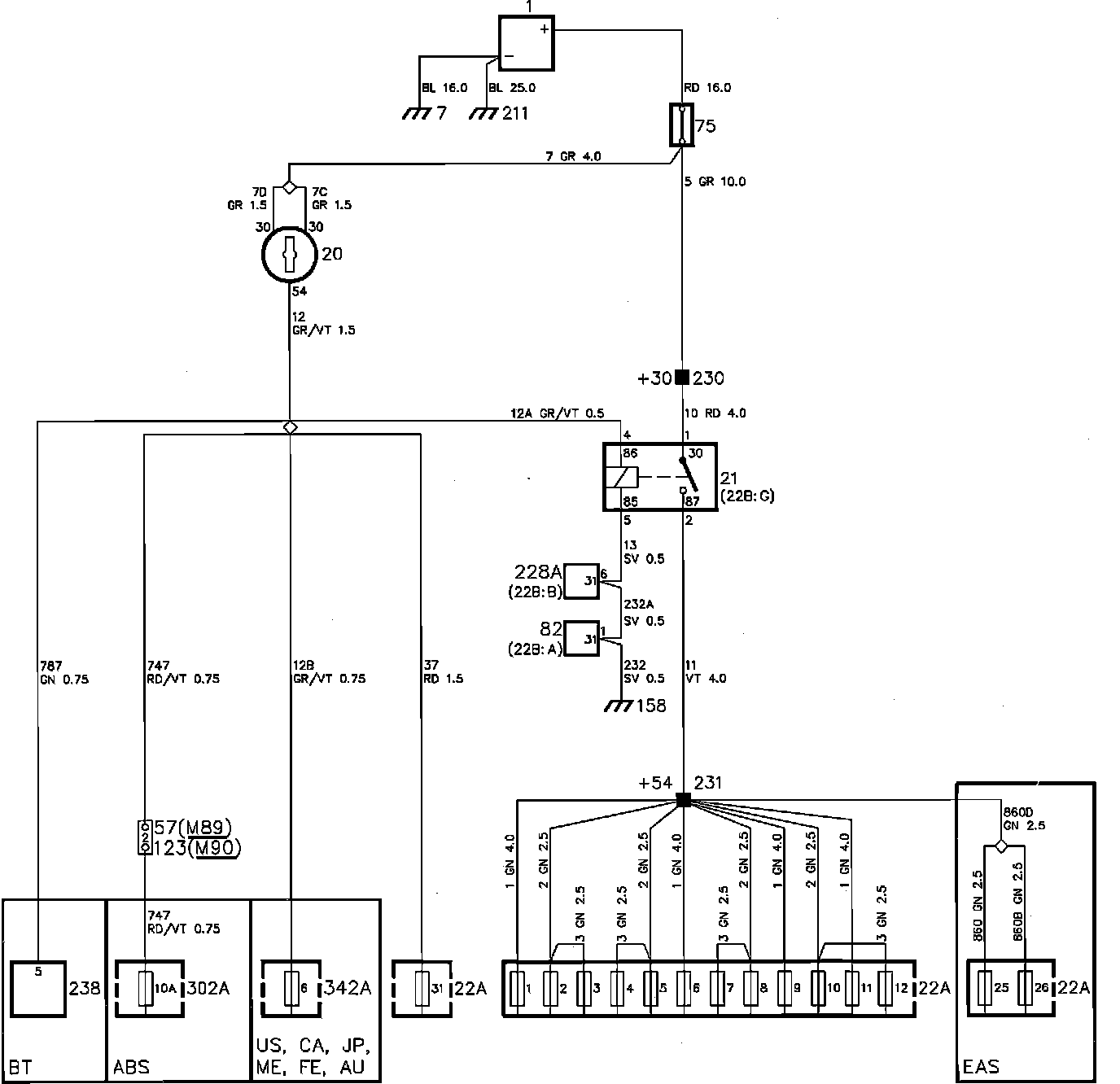

Power Distribution +54:
