38773750 Disassembling and assembling control mechanism for transmission

WM 387737 Disassembling and assembling control mechanism for transmission

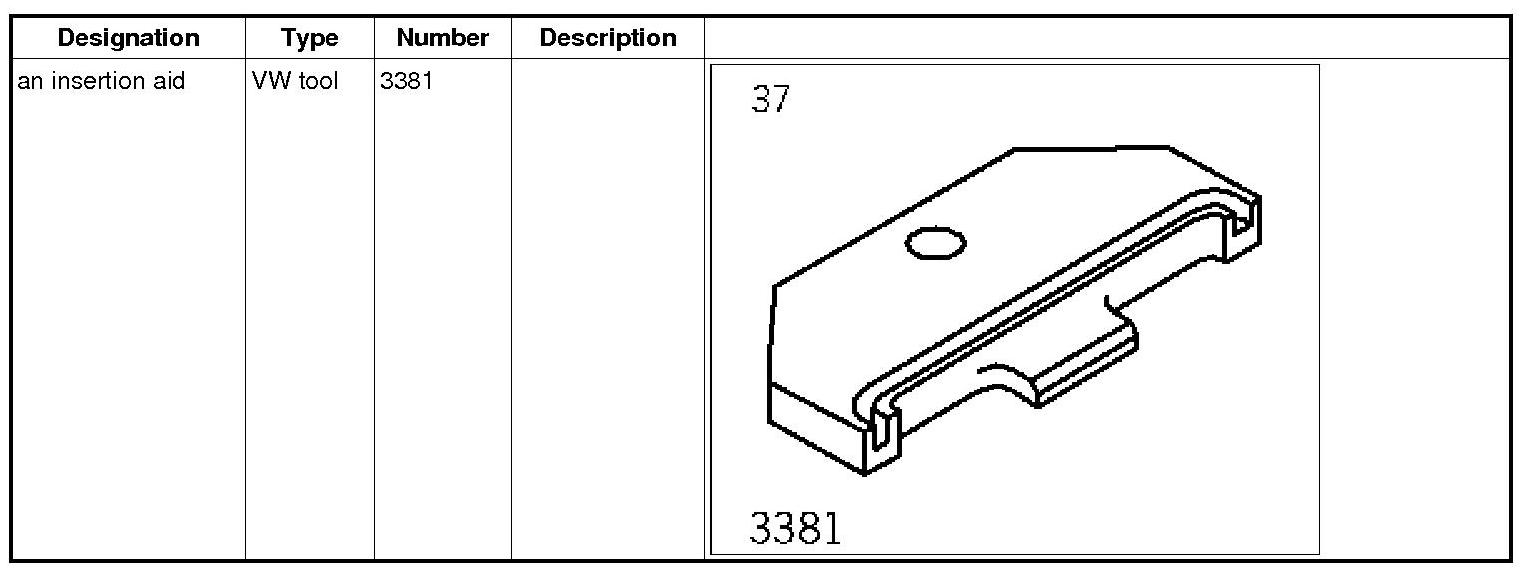

Tools

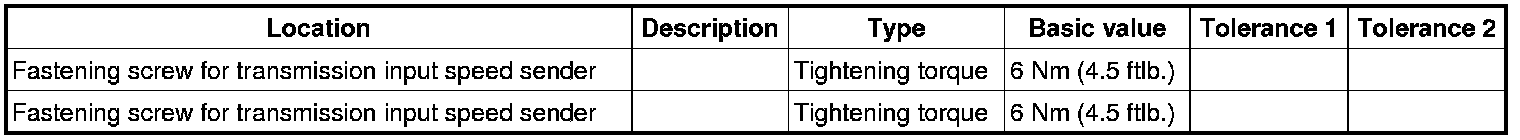

Technical values





Preliminary work

1. Raise the vehicle at the prescribed jacking points. -> 400000 Lifting the vehicle
2. Remove support plate. -> 421419 Removing and installing support plate - section on "Removing" 42141900 Removing and installing support plate
3. Drain ATF.
4. Remove ATF pan. -> 375519 Removing and installing ATF pan - section on "Removing" 37551900 Removing and installing ATF pan
5. Remove ATF filter. -> 375855 Replacing ATF filter - section on "Removing" 37585500 Replacing ATF filter
6. Remove control mechanism for transmission. -> 387719 Control mechanism for transmission - section on "Removing" 38771900 Removing and installing control mechanism for transmission

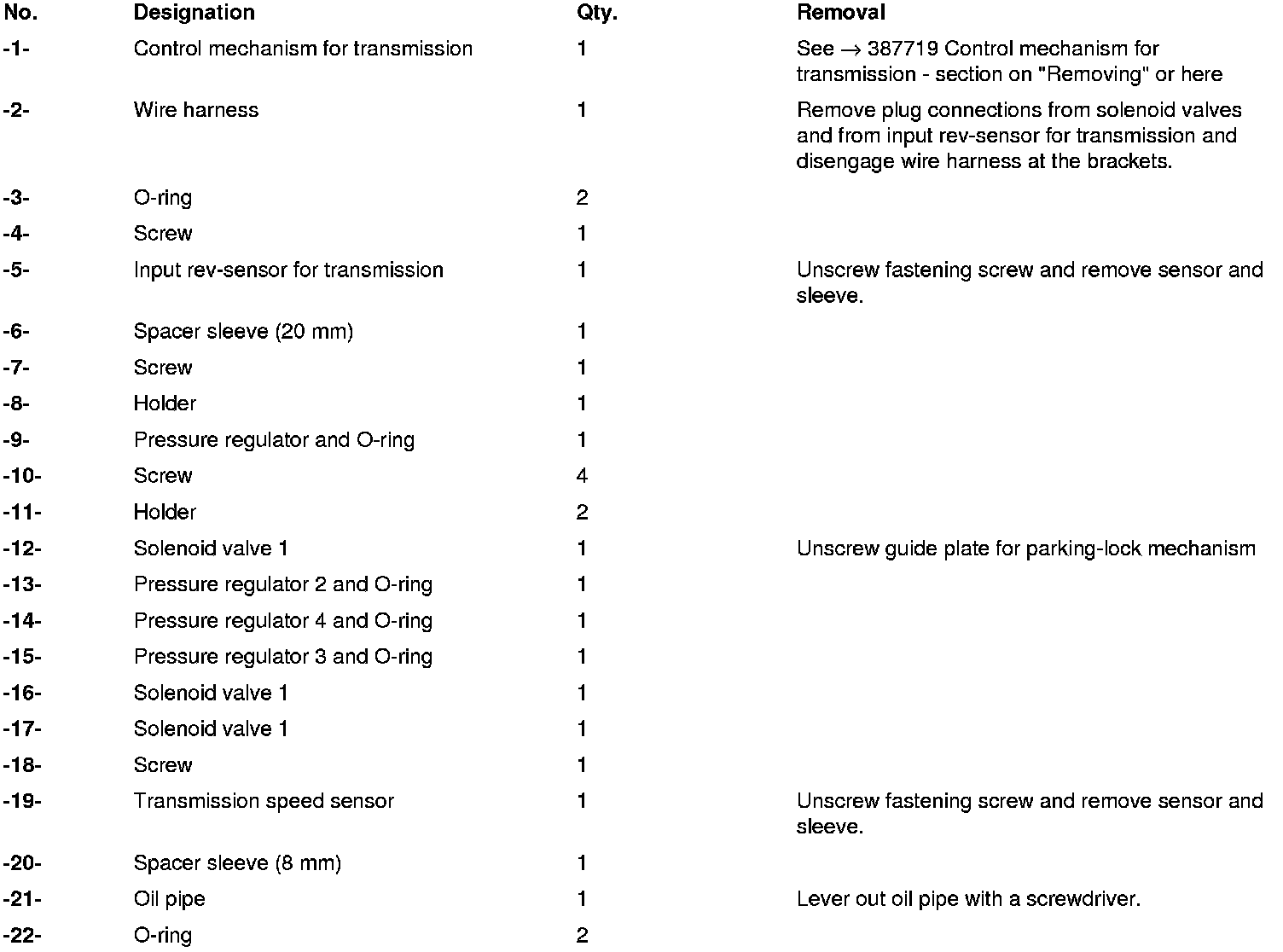

Disassembling control mechanism for transmission

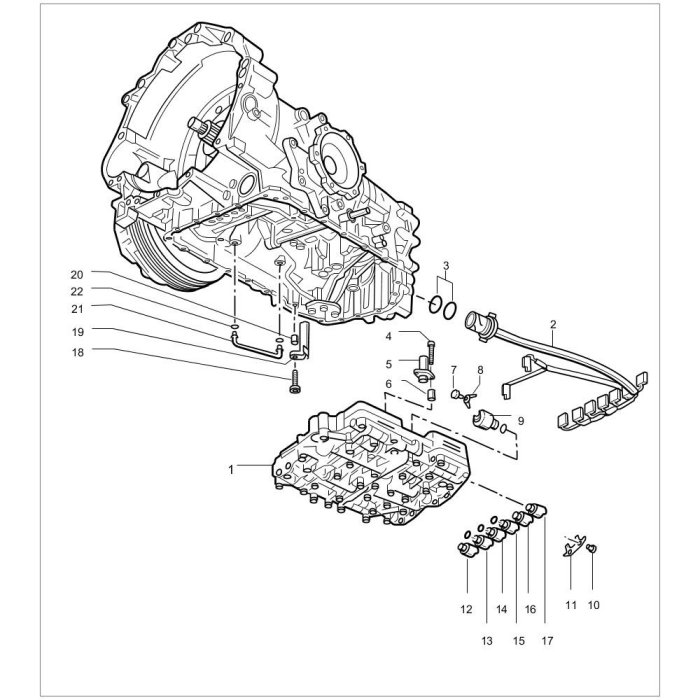

Overview

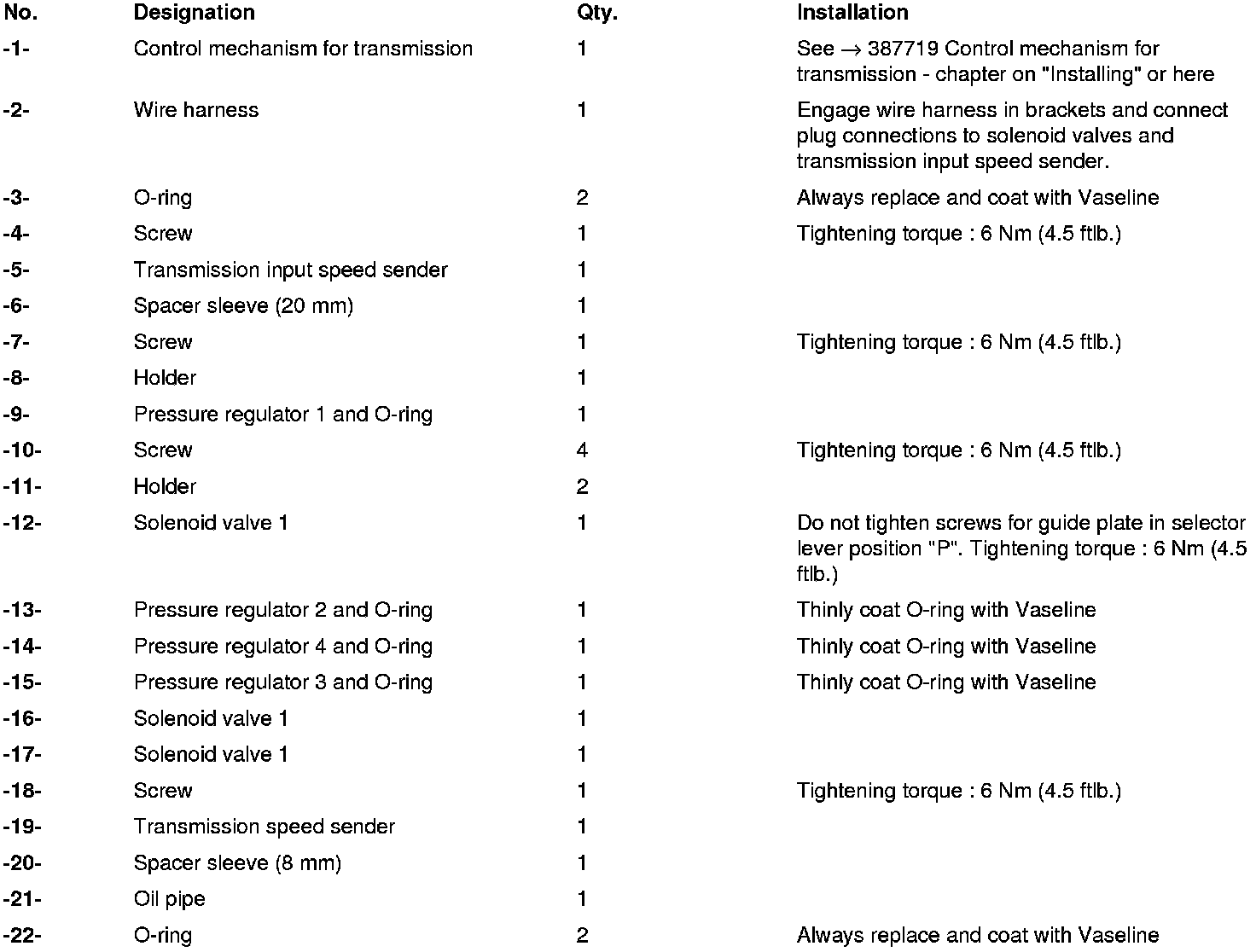

Assembling control mechanism for transmission





Overview





Instructions for assembling control mechanism

Information

The ATF temperature sender is integrated in the wire harness. Therefore, in the case of damage, the entire wire harness must be replaced.

Information

In the event of mechanical stress (e.g. if it falls) the transmission input speed sender or the transmission speed sender must not be reinstalled as the permanent magnet will have been destroyed.

Information

Always replace an oil pipe that has been removed.

Always insert an oil pipe using an insertion aid 3381 as otherwise the oil pipe can be bent.





Overview

1. Coat new oil pipe -21- and new O-rings -22- lightly with Vaseline.

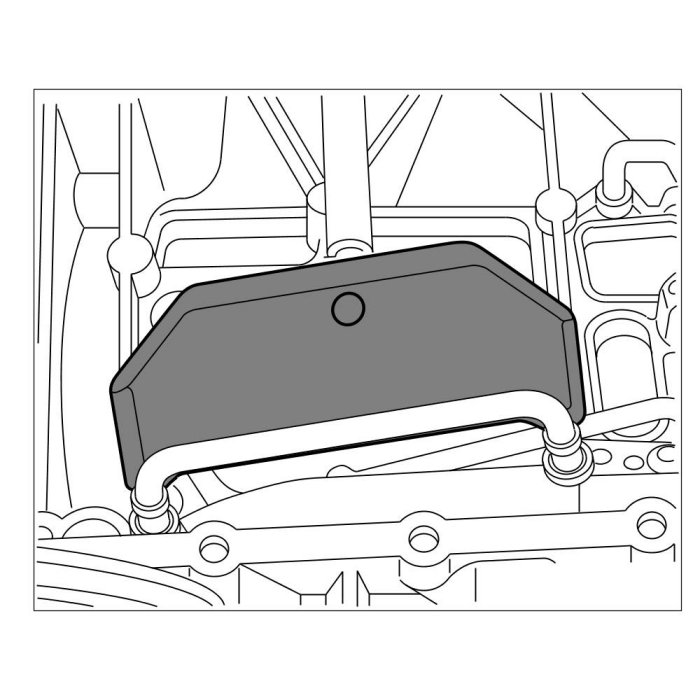

2. Insert oil pipe into insertion aid 3381 and drive evenly into transmission housing as far as the stop on the tool. The open side of the tool should face the outer wall of the transmission.





Insertion aid

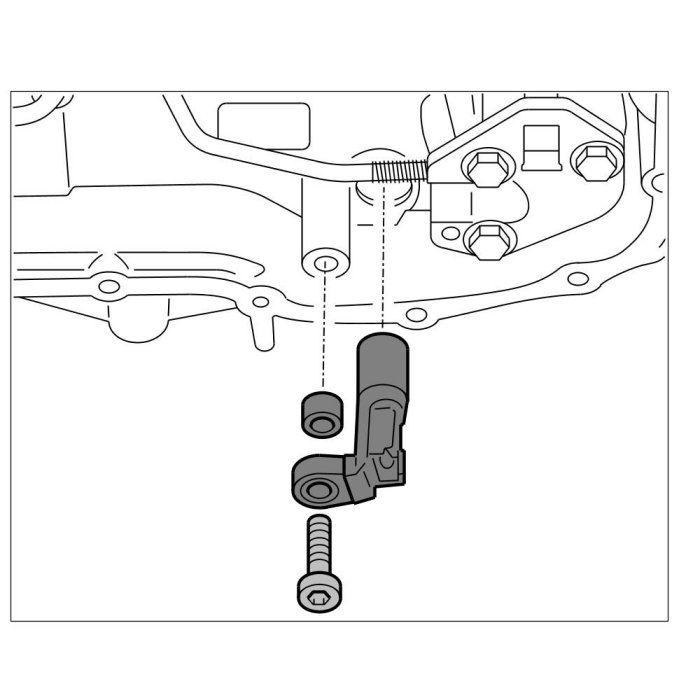

3. Screw in transmission speed sender -19- and spacer (8 mm) -20- and tighten screw -18-.





Transmission speed sender

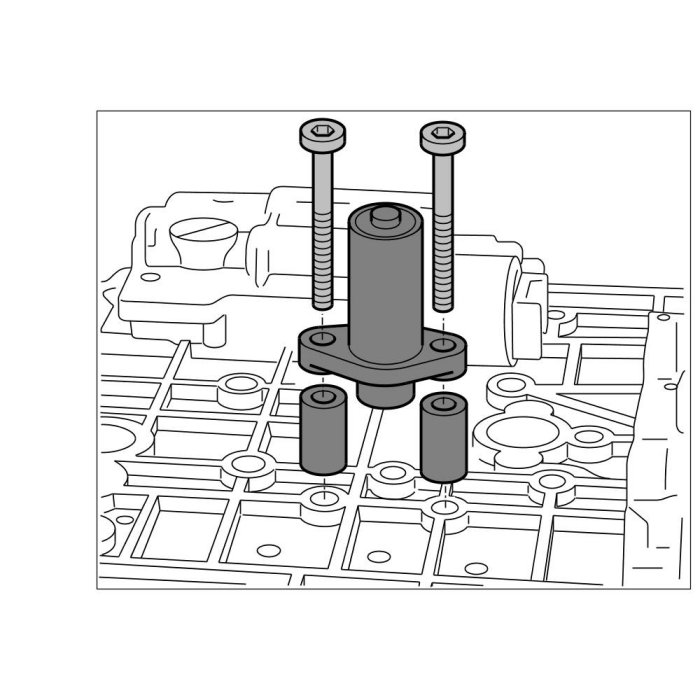

4. Screw in transmission input speed sender -5- and spacers (20 mm) -6- and tighten screws -4-.





Transmission input speed sender





5. Insert wiring harness -2- with the flat point facing the ATF pan.





Wire harness

Subsequent work

1. Install control mechanism for transmission. -> 387719 Control mechanism for transmission - section on "Installing" 38771900 Removing and installing control mechanism for transmission
2. Install ATF filter. -> 375855 Replacing ATF filter - section on "Installing" 37585500 Replacing ATF filter
3. Install ATF pan. -> 375519 Removing and installing ATF pan - section on "Installing" 37551900 Removing and installing ATF pan
4. Fill in ATF
5. Install support plate. -> 421419 Removing and installing support plate - section on "Installing" 42141900 Removing and installing support plate
6. Lower the vehicle.
