Connector Pin Assignment, Display and Operator Control Unit
Connector Pin Assignment, Display and Operator Control Unit

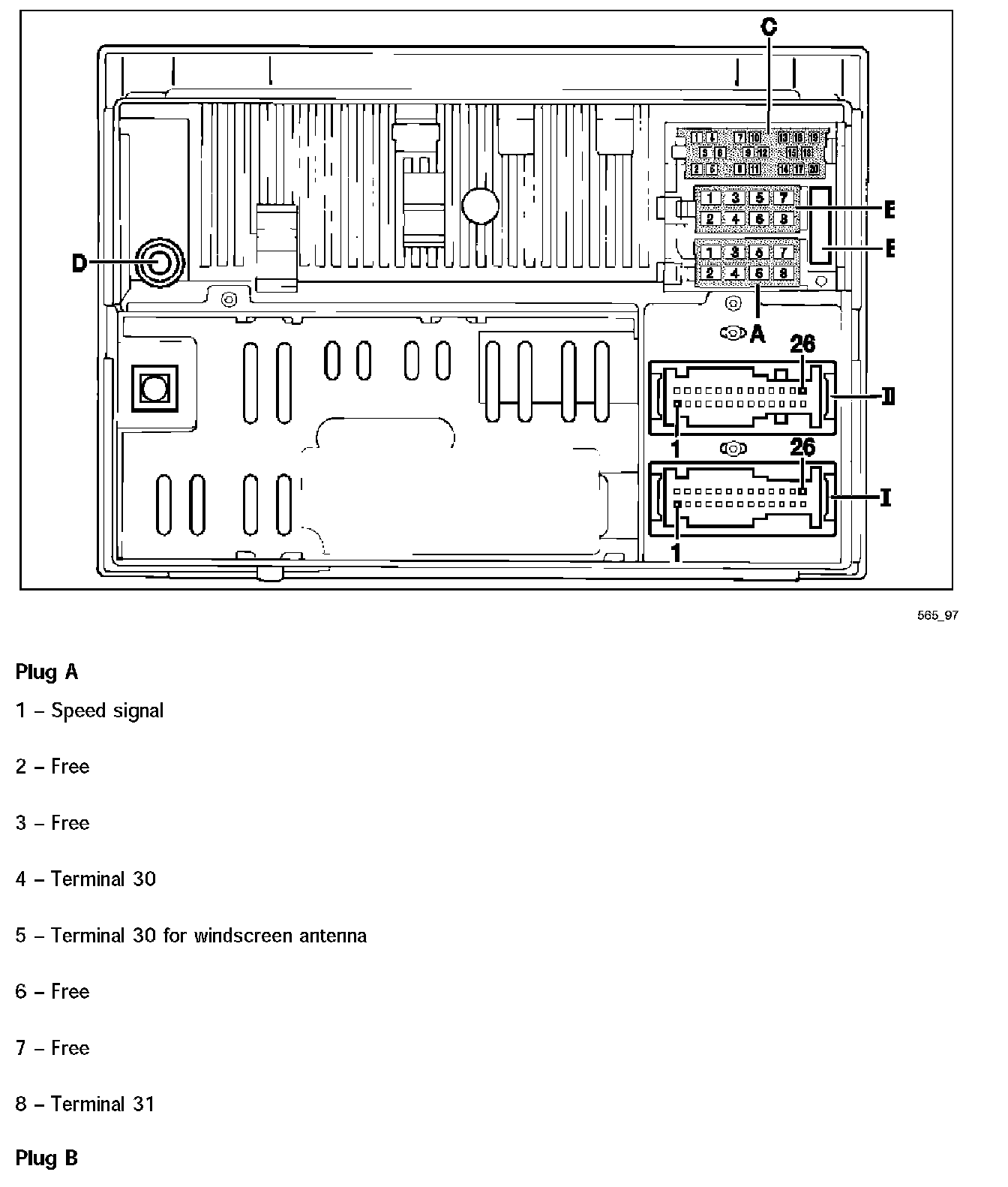

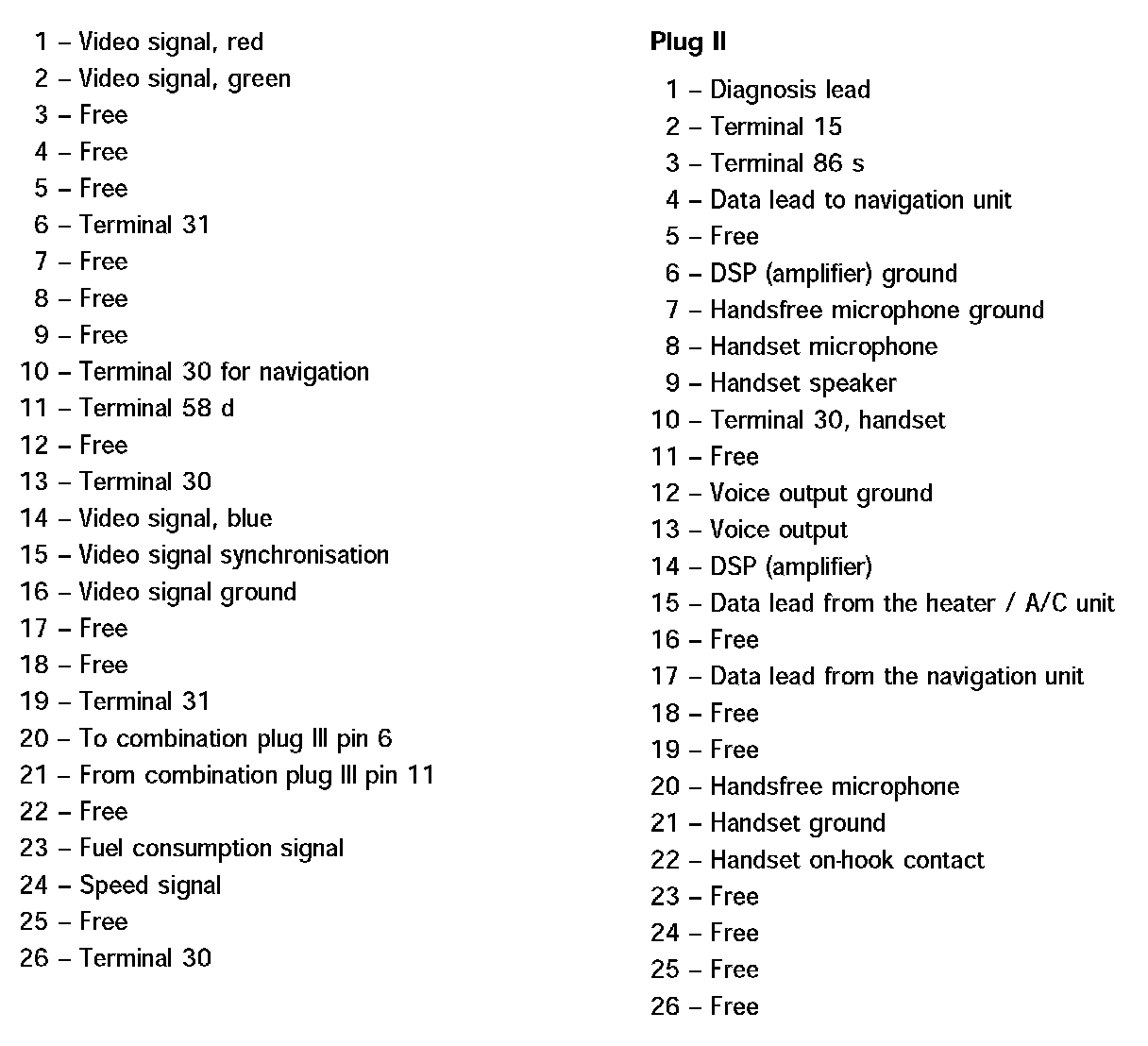

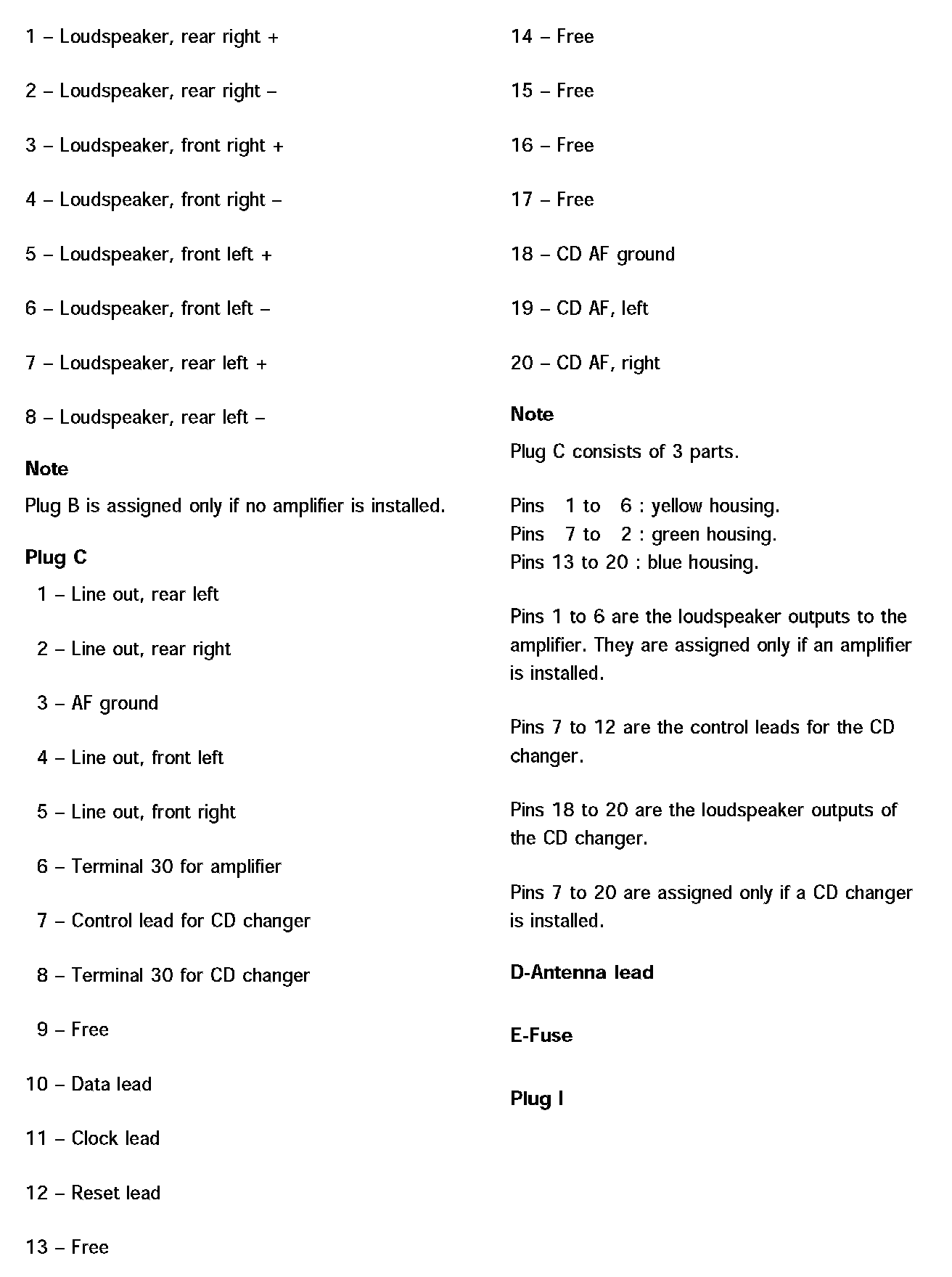

Connector pin assignment, display and operator
control unit
