System Specifications

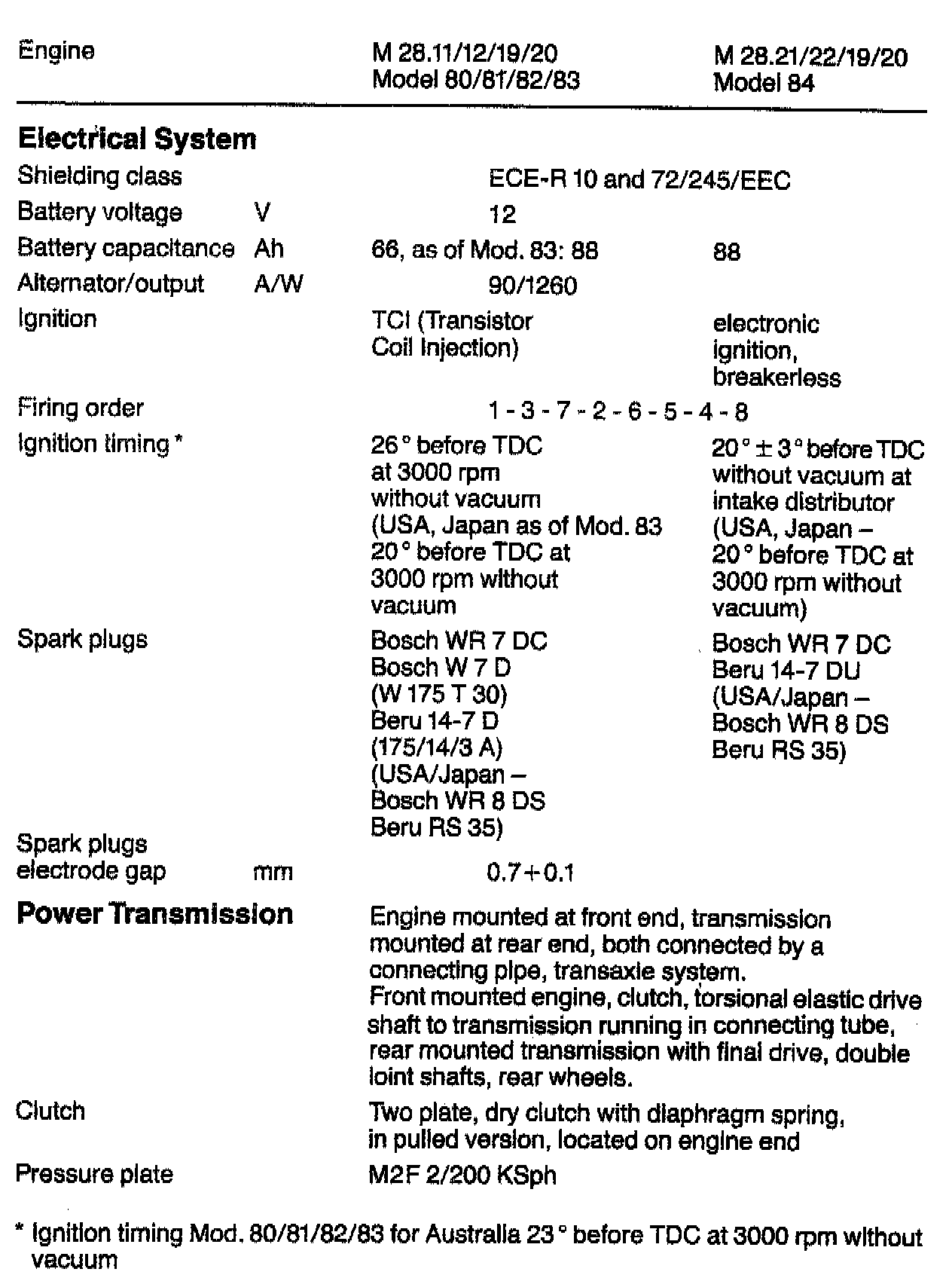

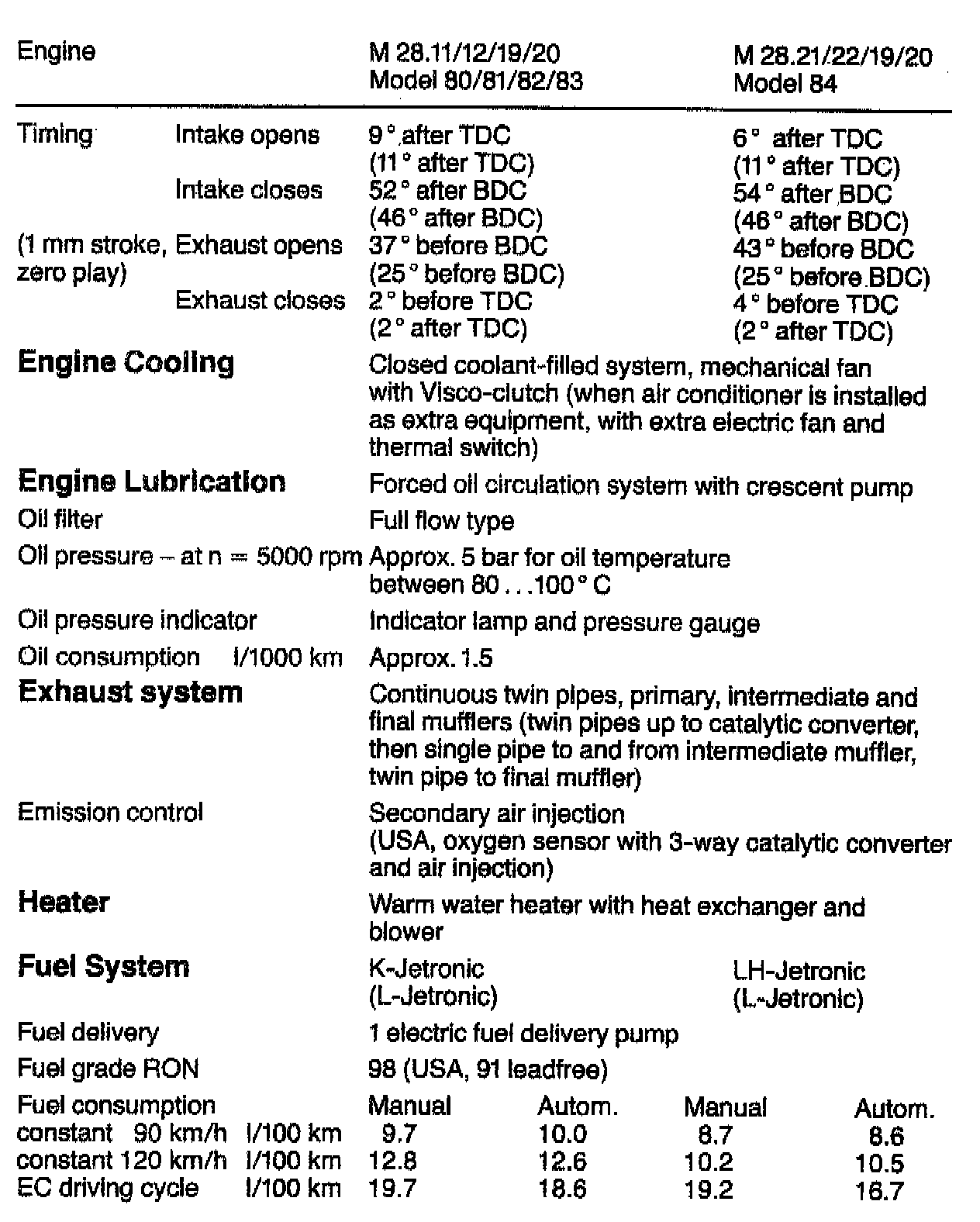

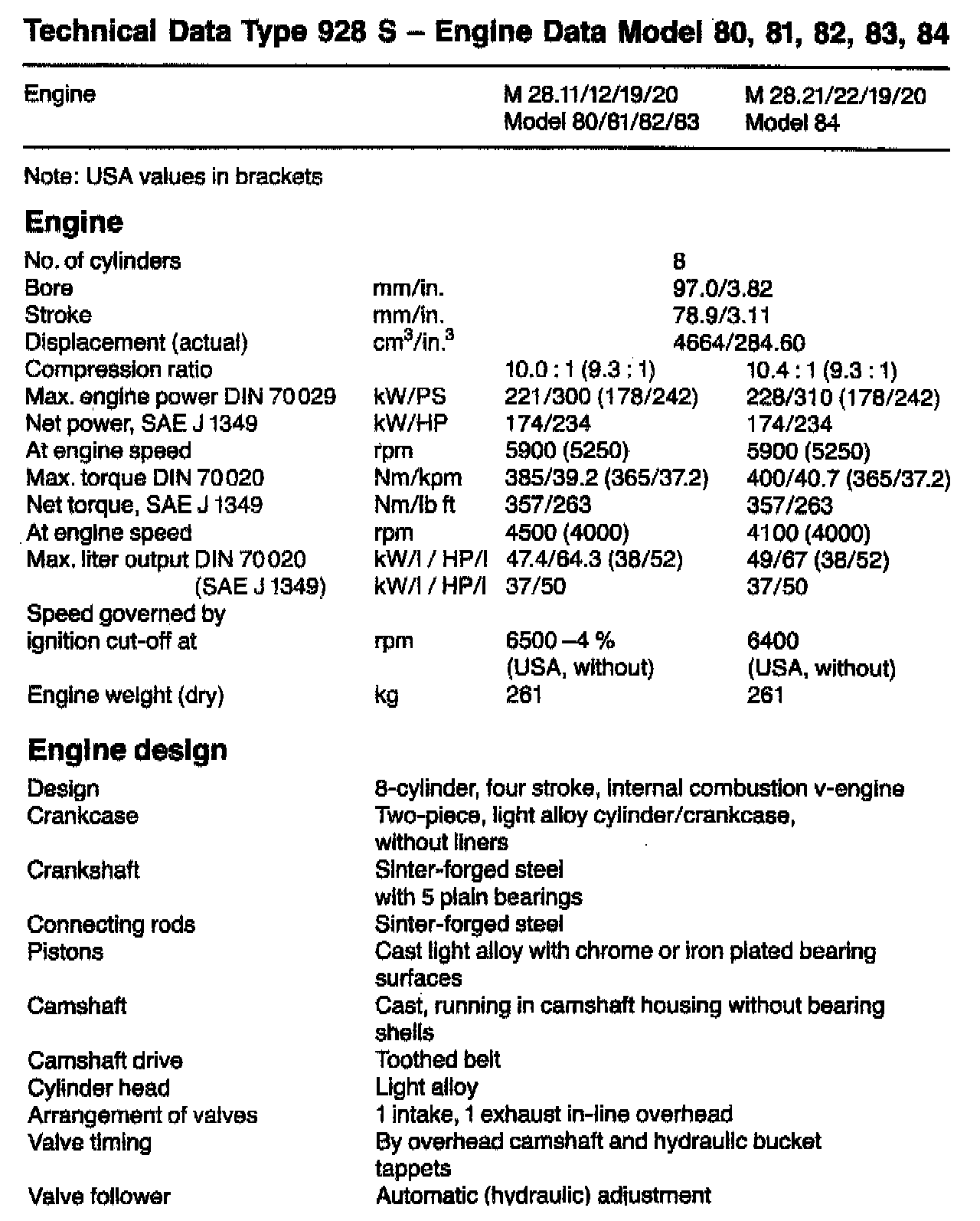

GENERAL SPECIFICATIONS

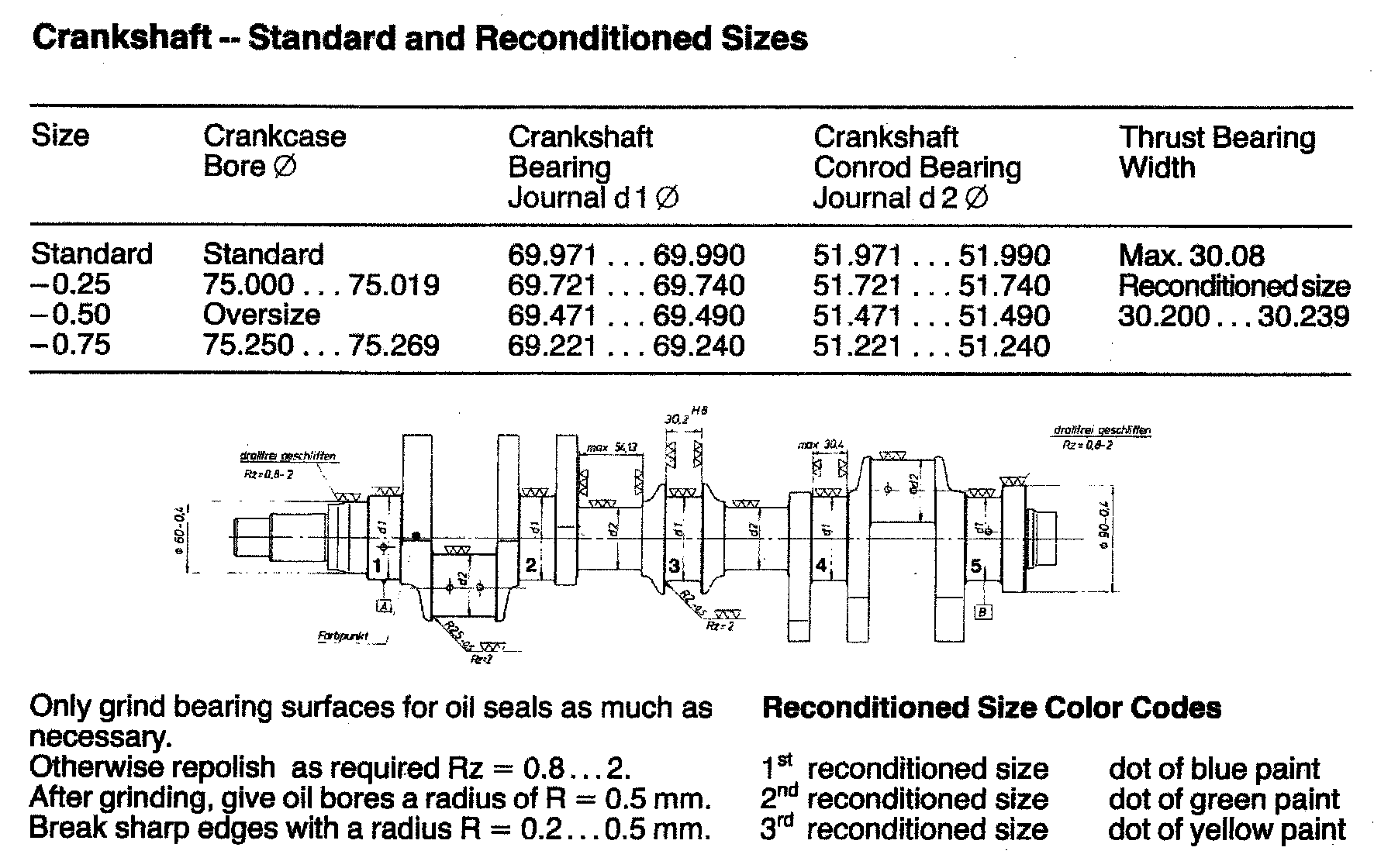

CRANKSHAFT SPECIFICATIONS

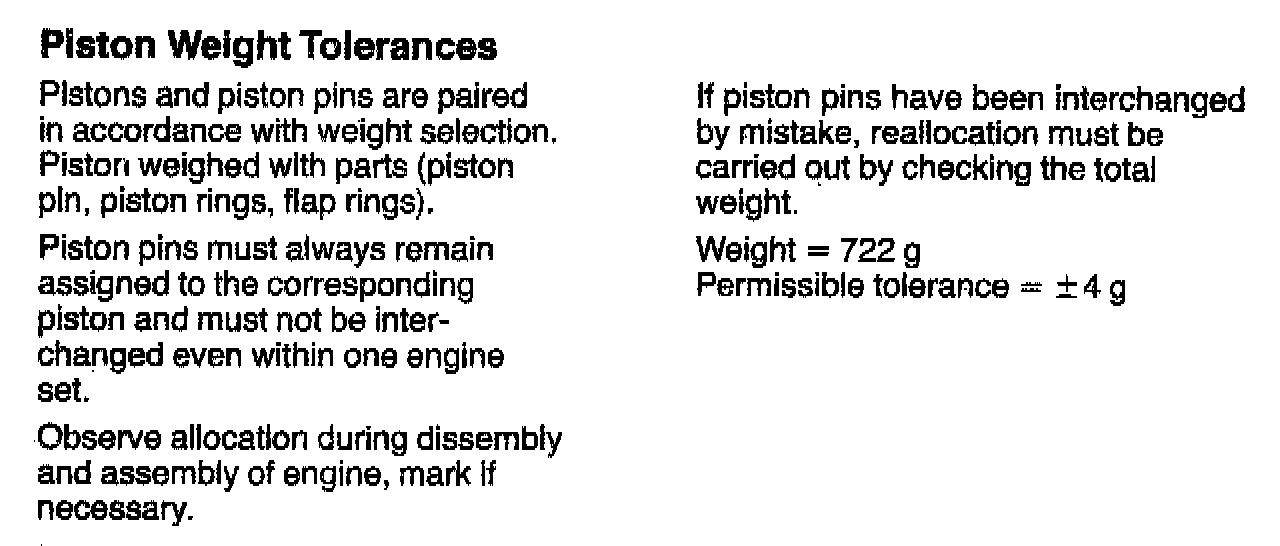

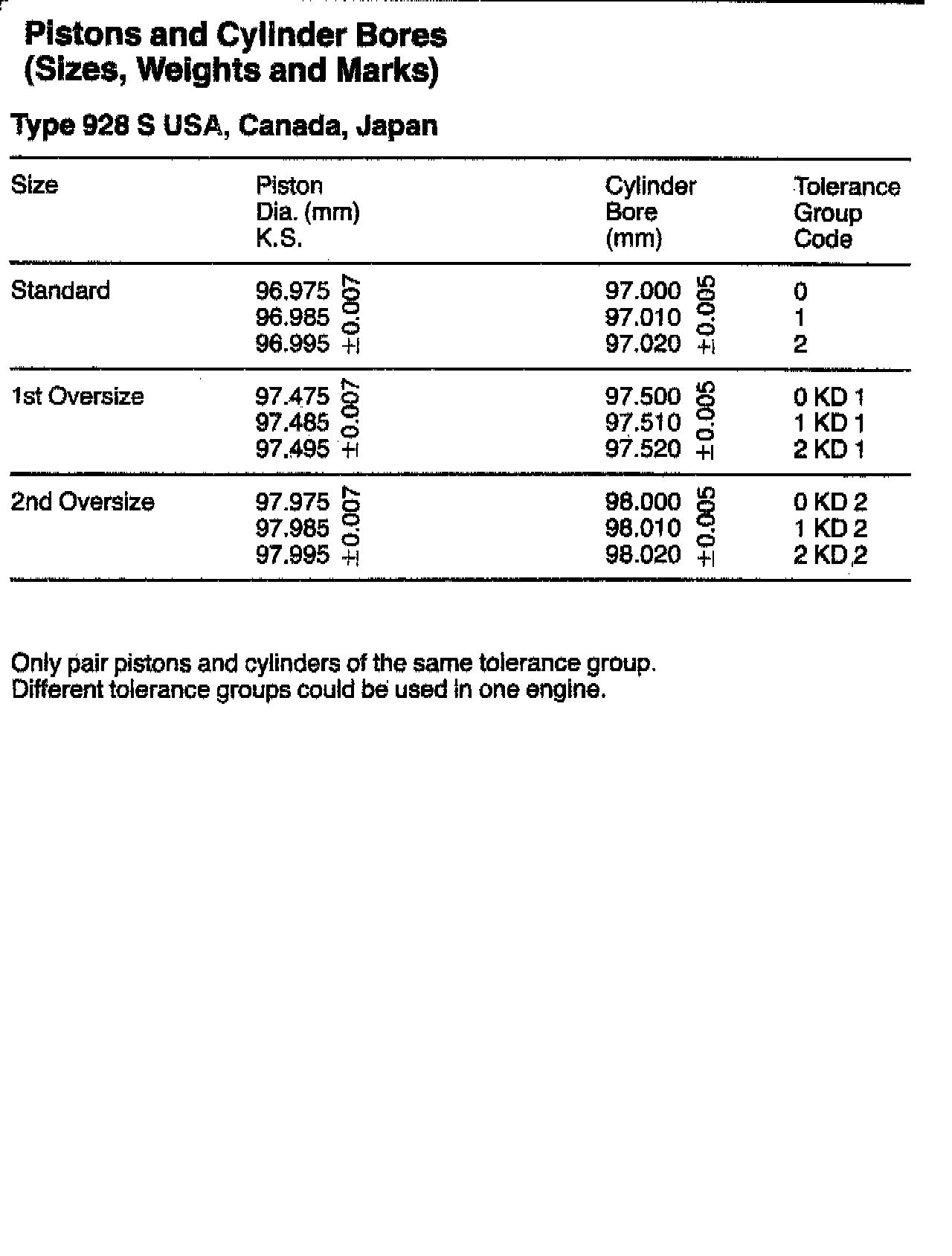

PISTON SPECIFICATIONS

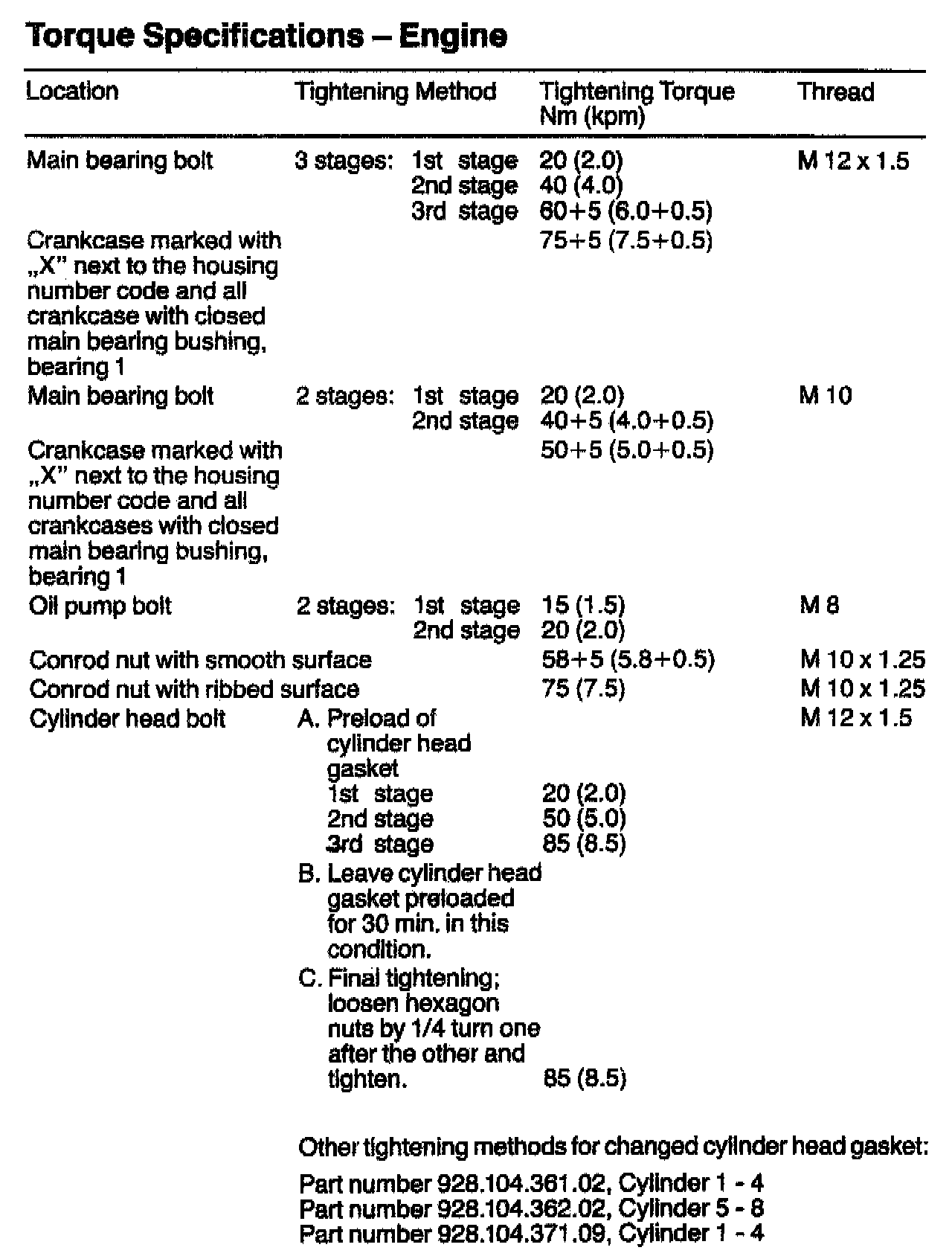

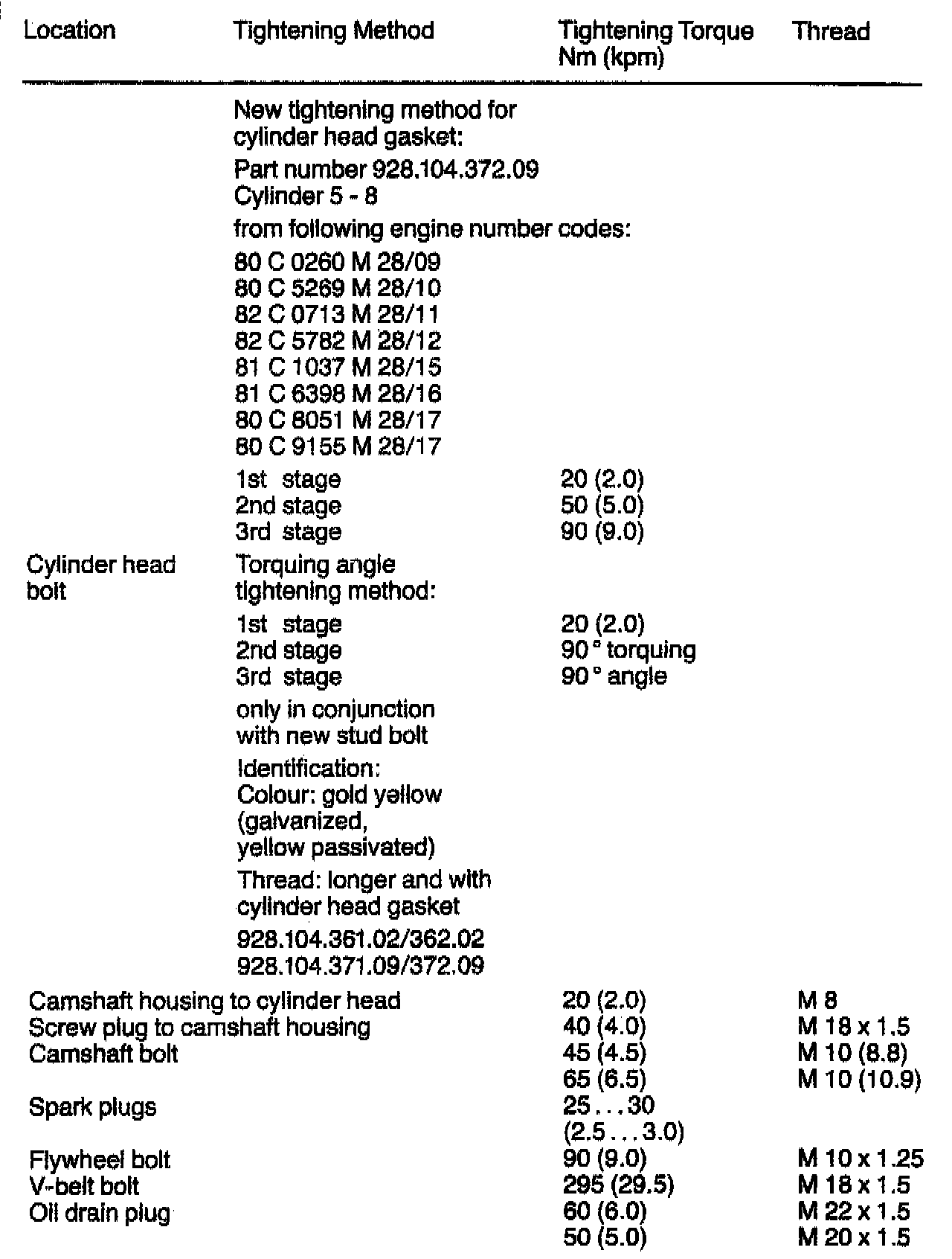

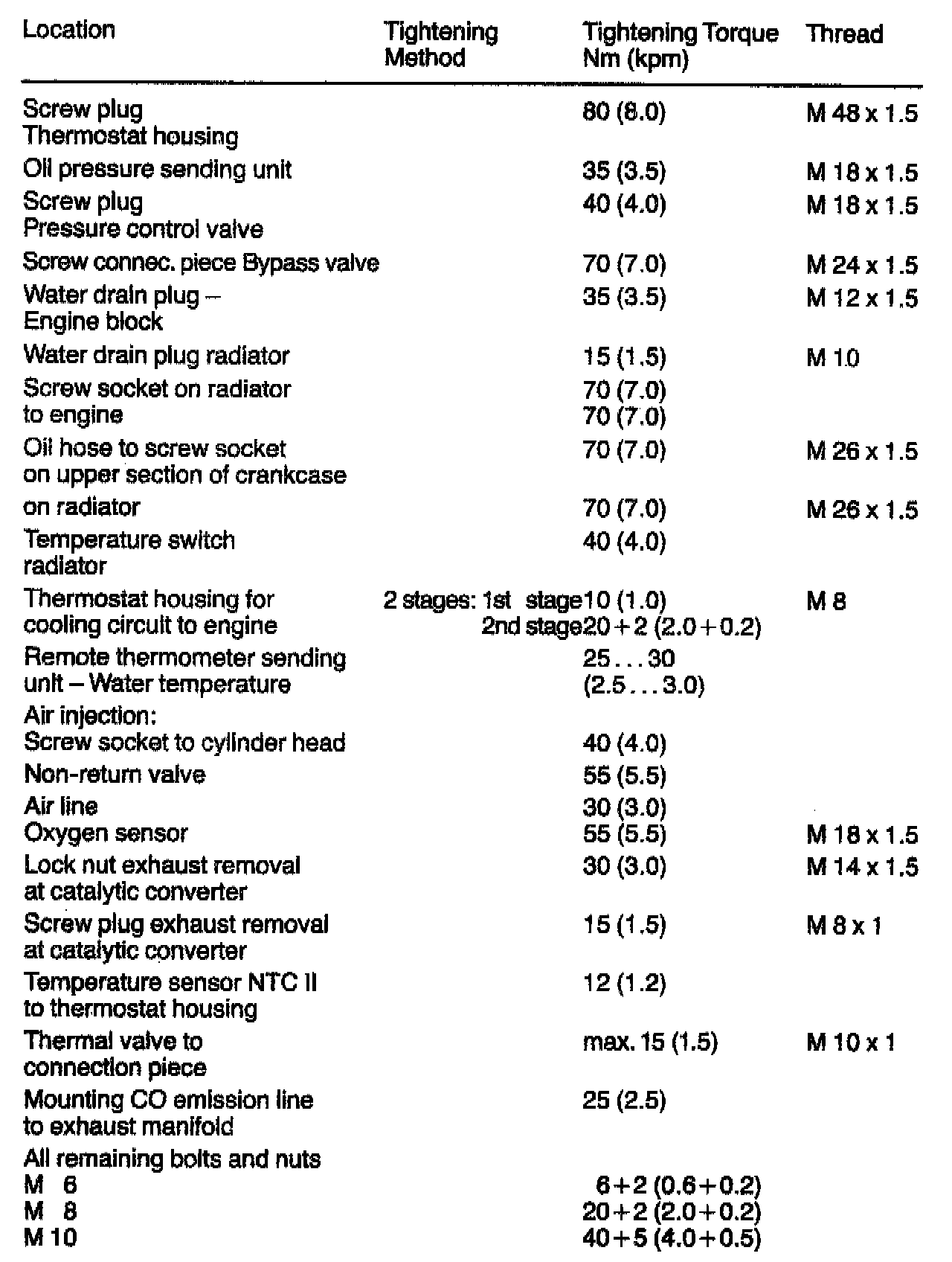

TIGHTENING SPECIFICATIONS

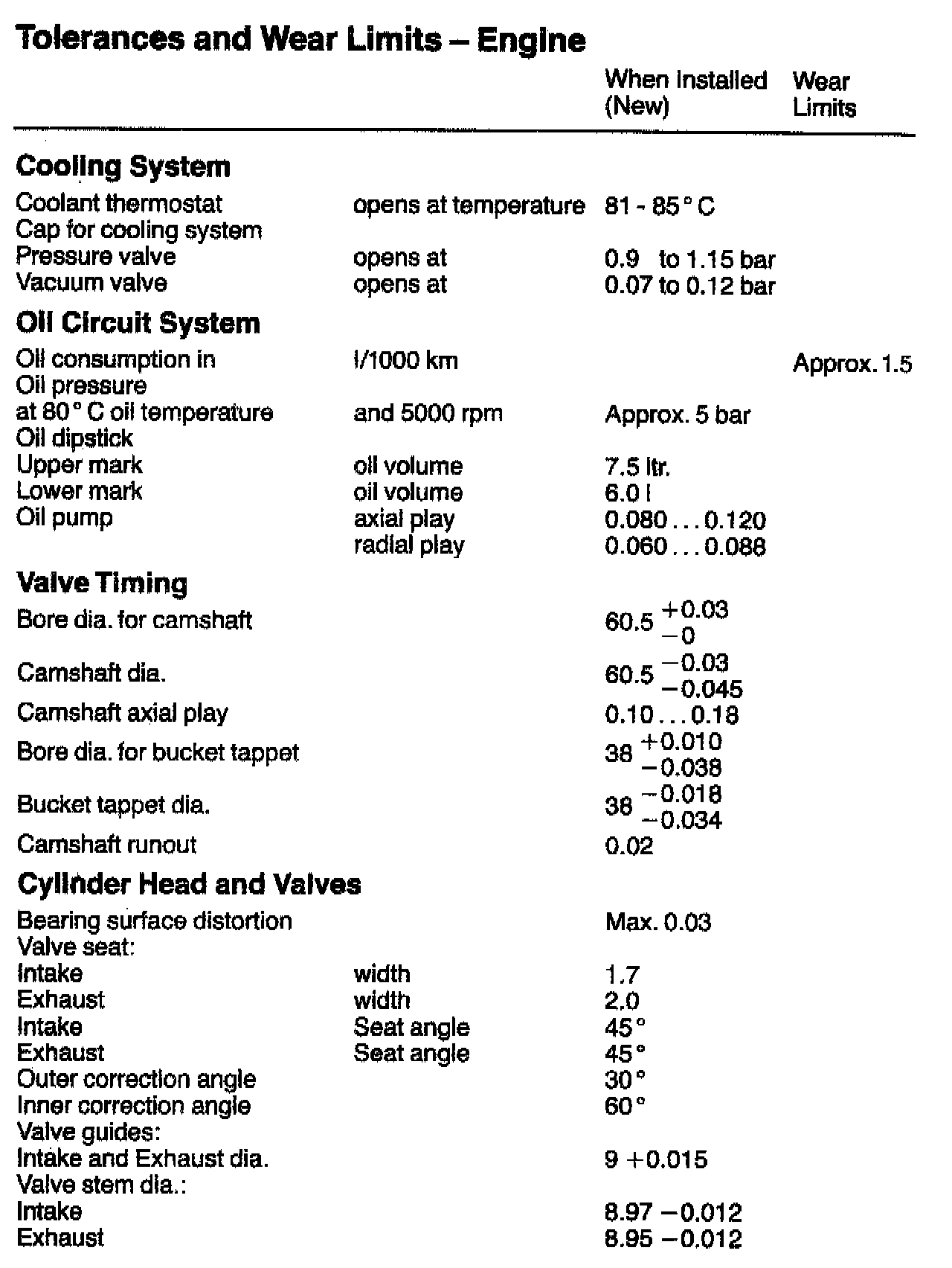

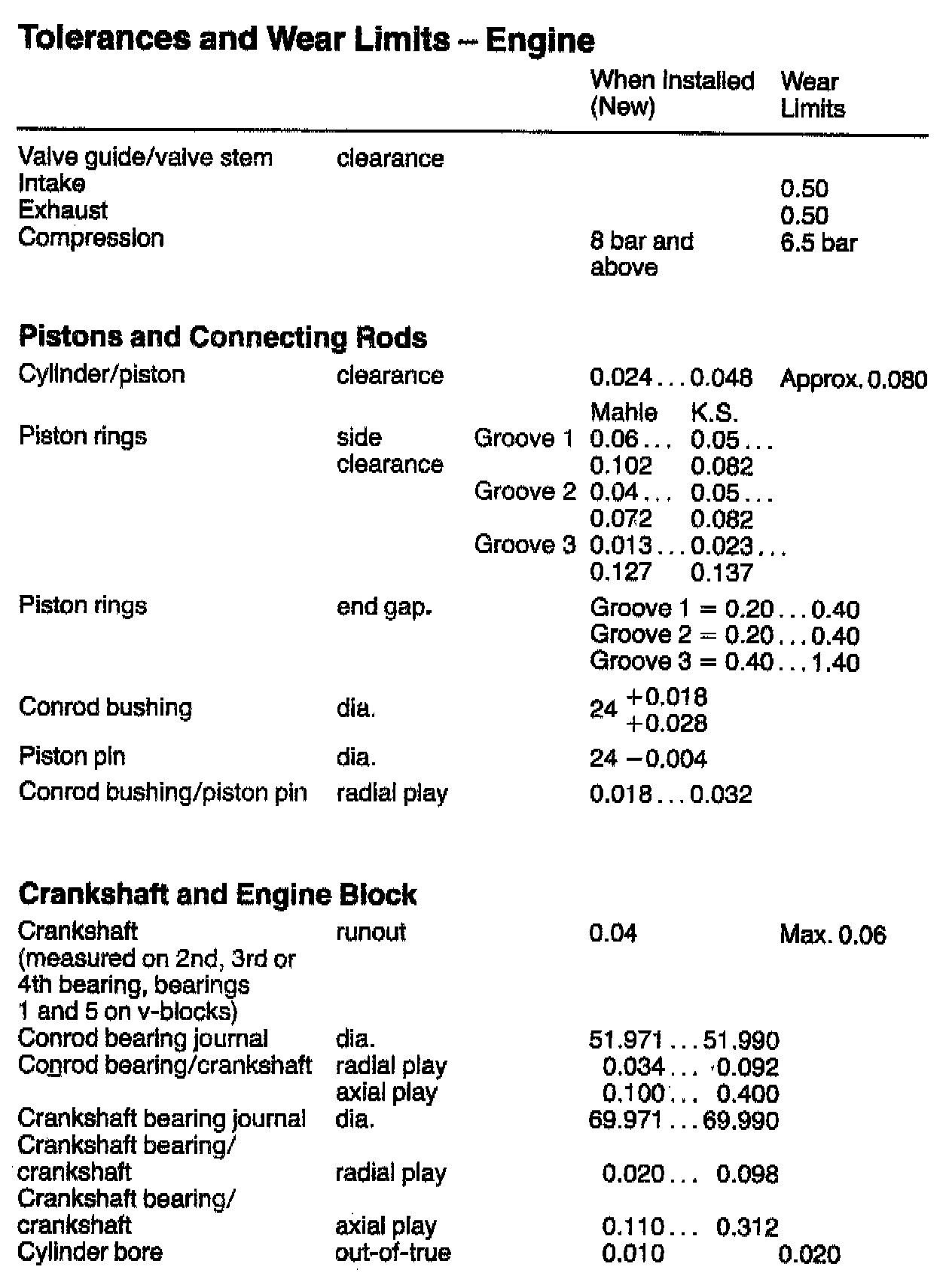

TOLERANCES AND WEAR LIMITS

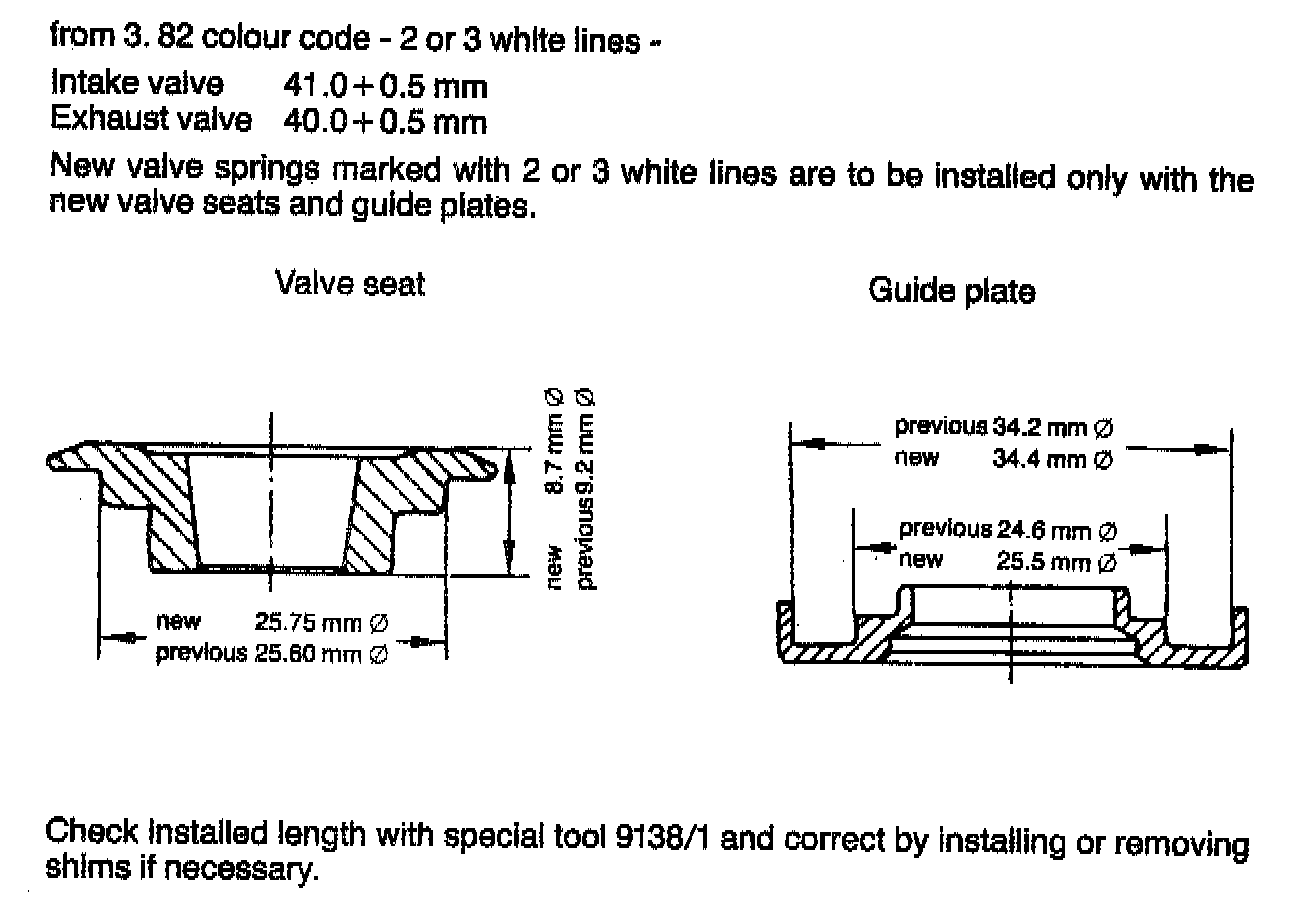

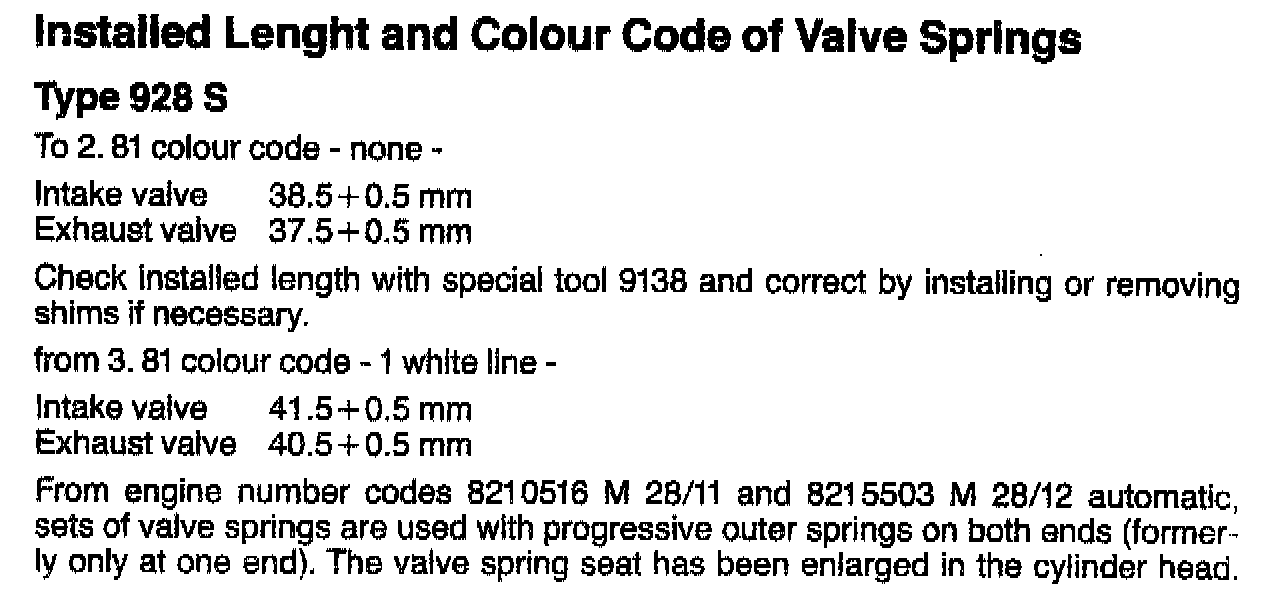

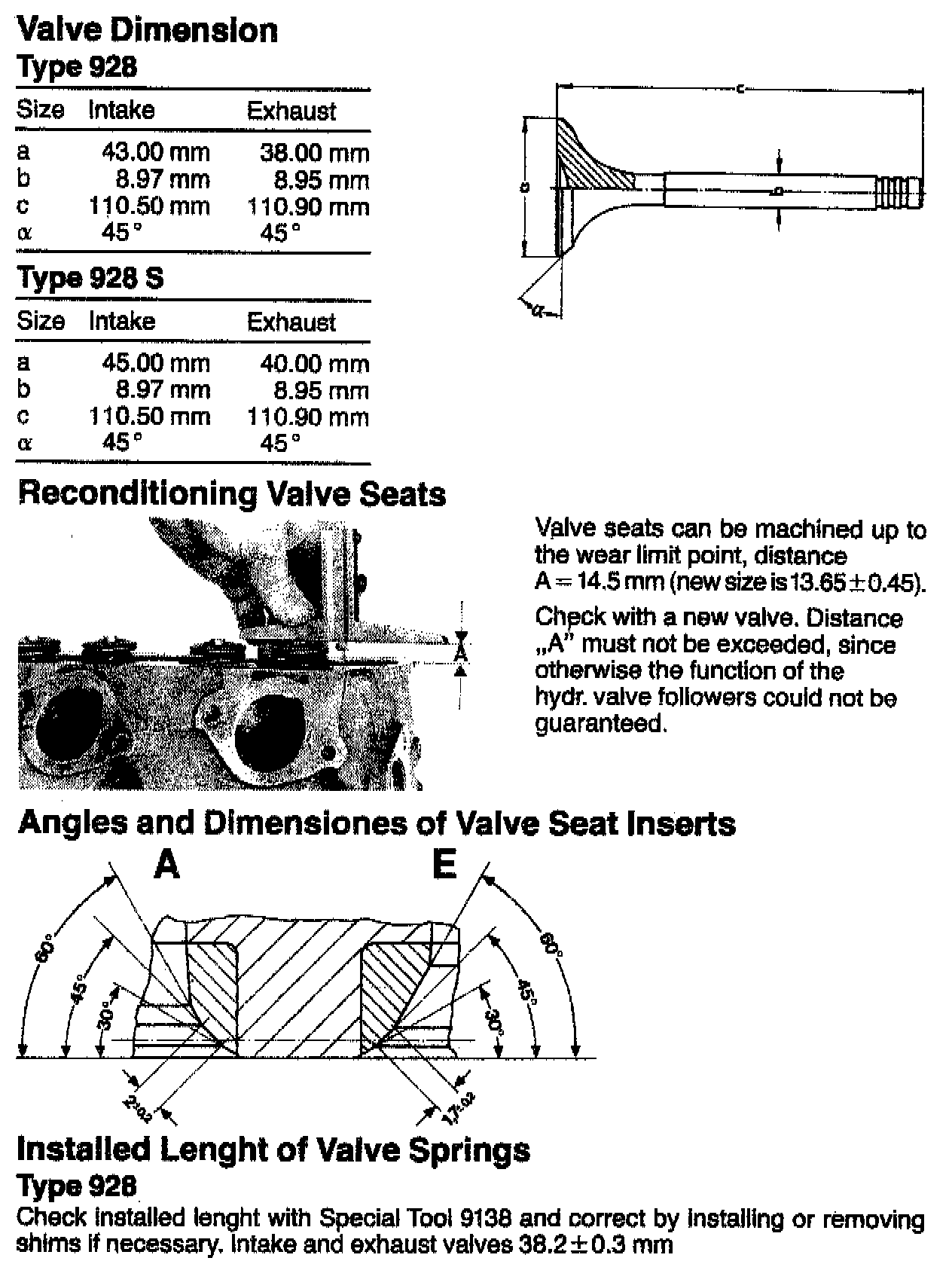

VALVE SPECIFICATIONS
