Home >> Pontiac >> 2005 >> G6 V6-3.5L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

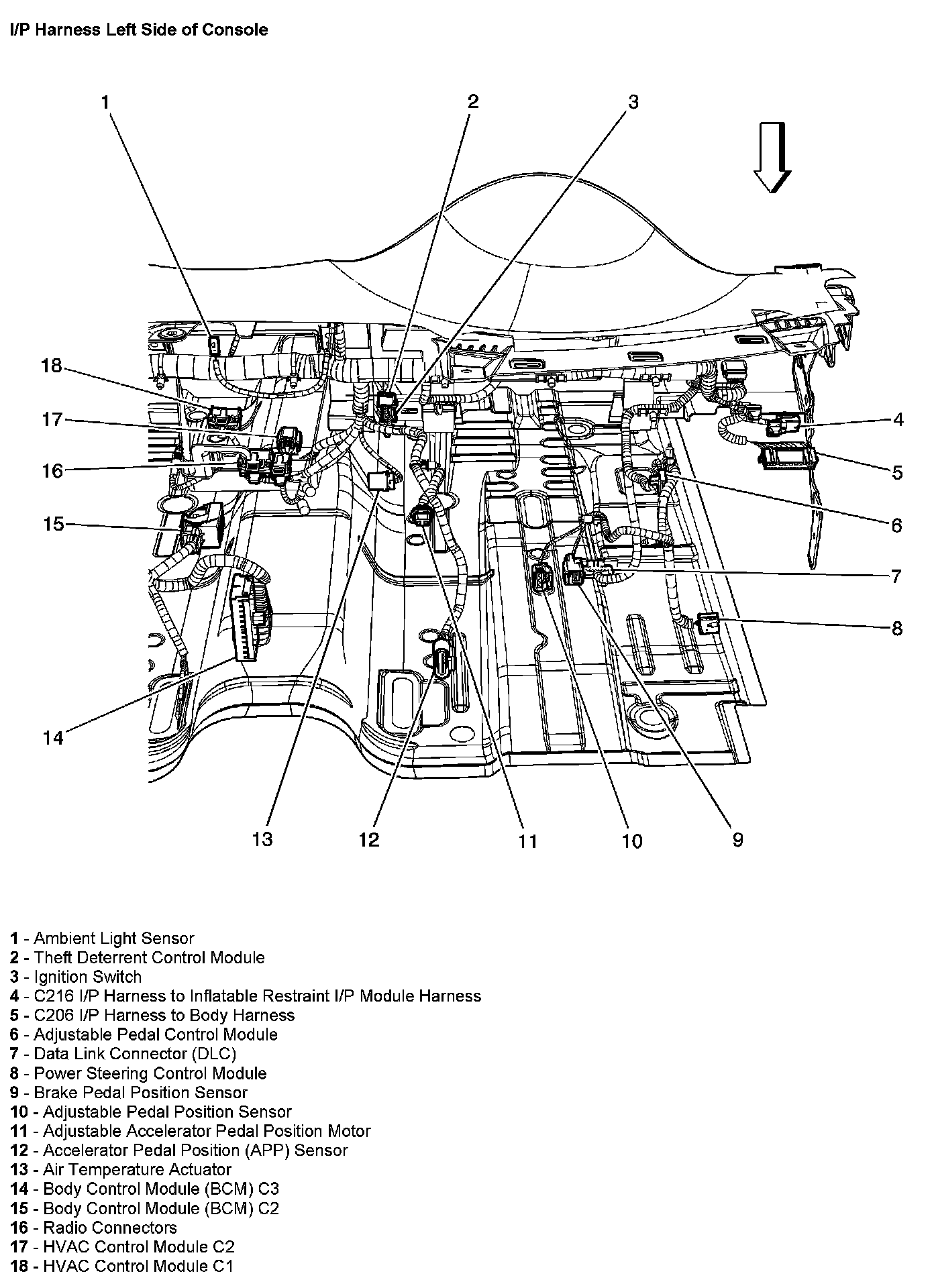

I/P Harness Left Side Of Console:

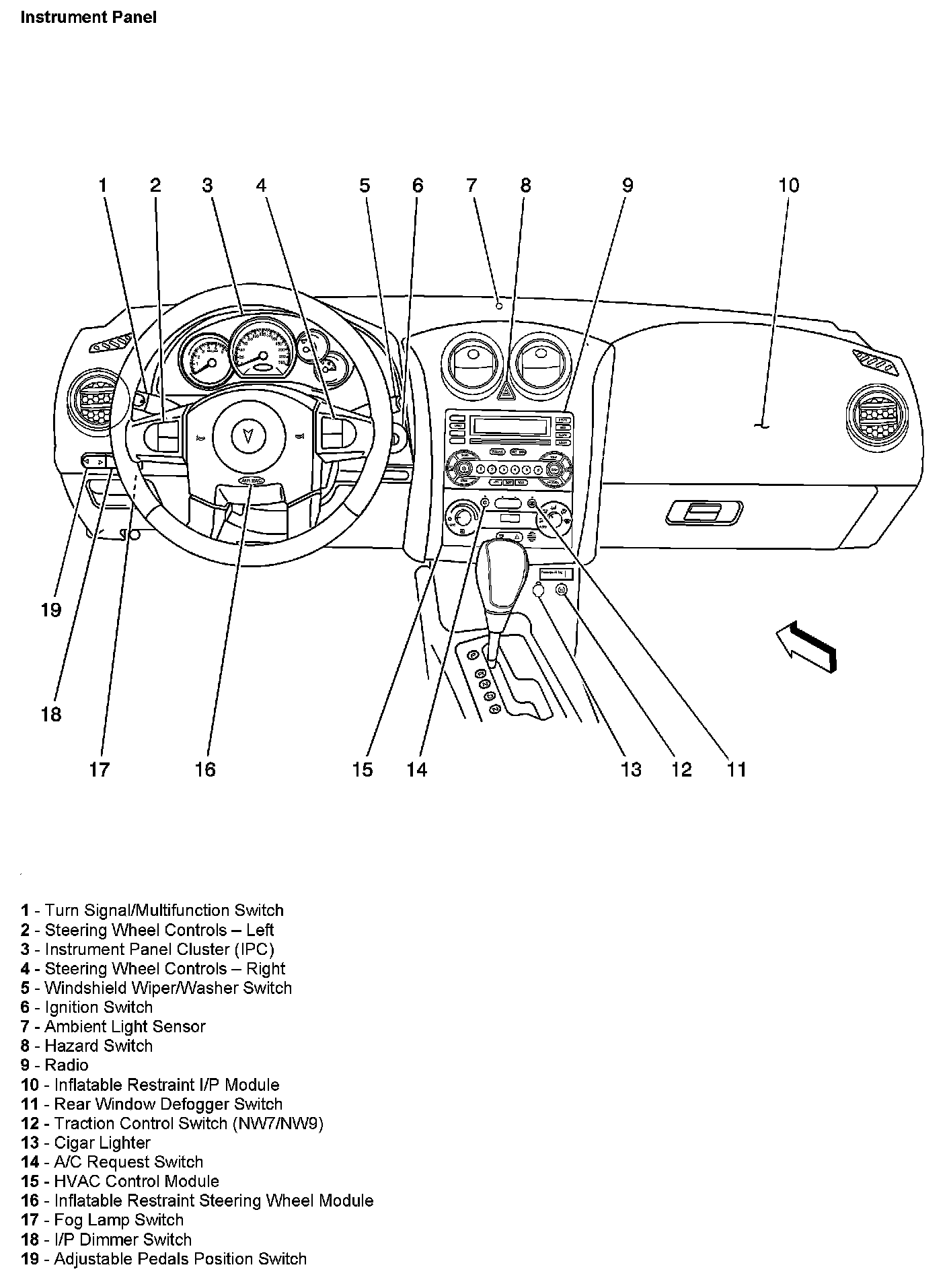

Instrument Panel:
