Door Control Module Schematics
>>
Simple Bus Interface (SBI)
Simple Bus Interface (SBI)

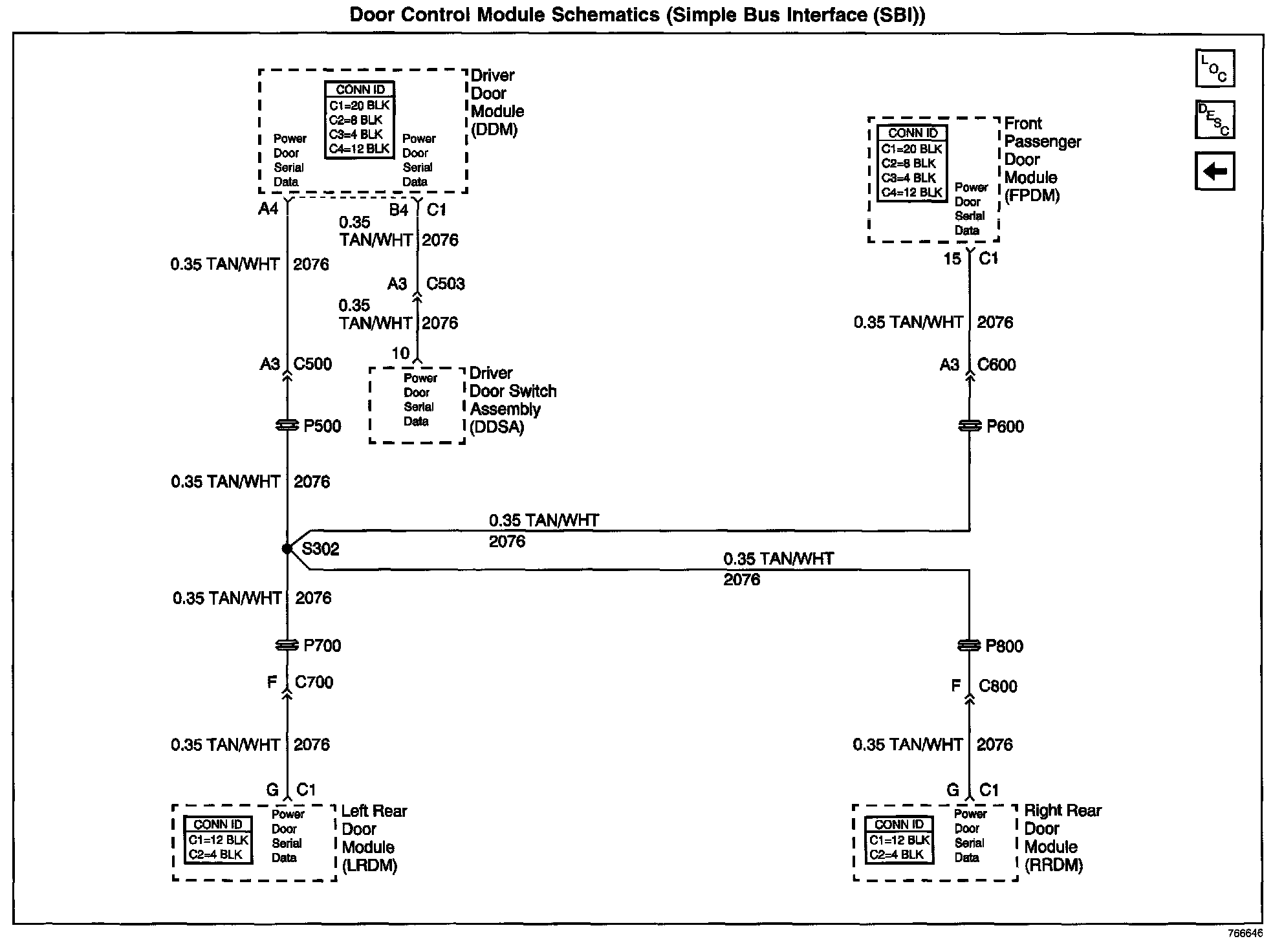

Door Control Module Schematics: Simple Bus Interface (SBI):
