Scan Tool Output Controls - Rear Integration Module (RIM)
Scan Tool Output Controls - Rear Integration Module (RIM)

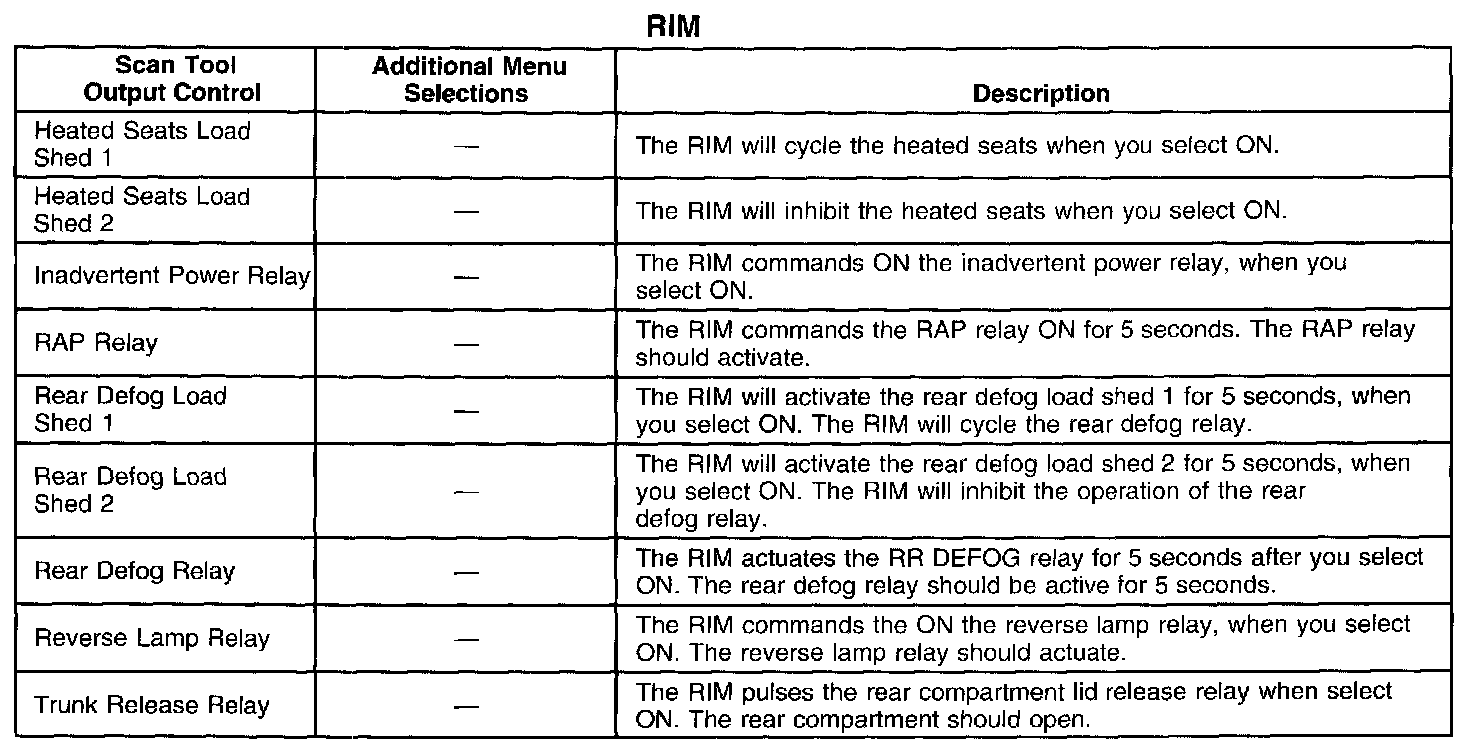

RIM Part 1:

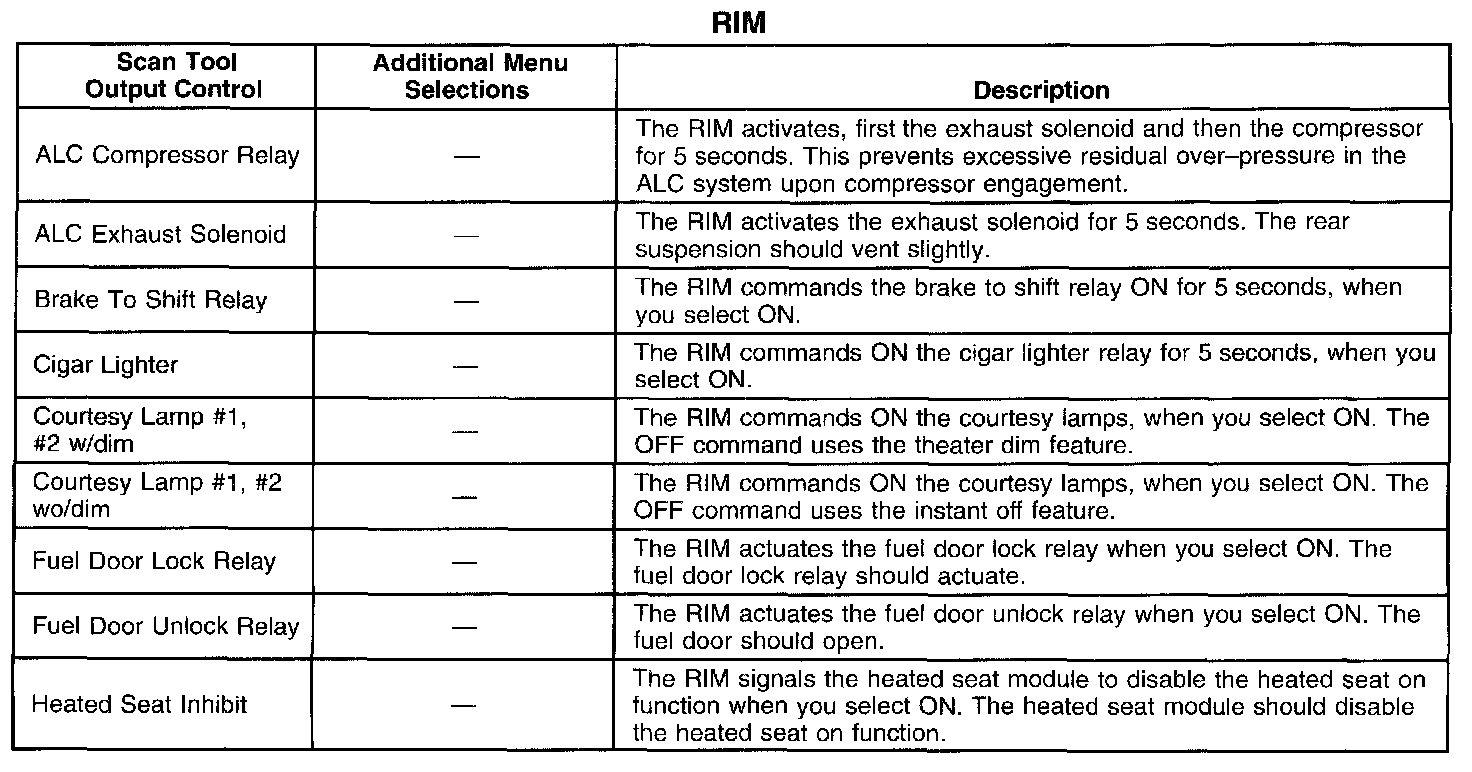

RIM Part 2:
