Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp Control Unit
>>
Daytime Running Lamps (DRL) Control Module C1
Daytime Running Lamps (DRL) Control Module C1

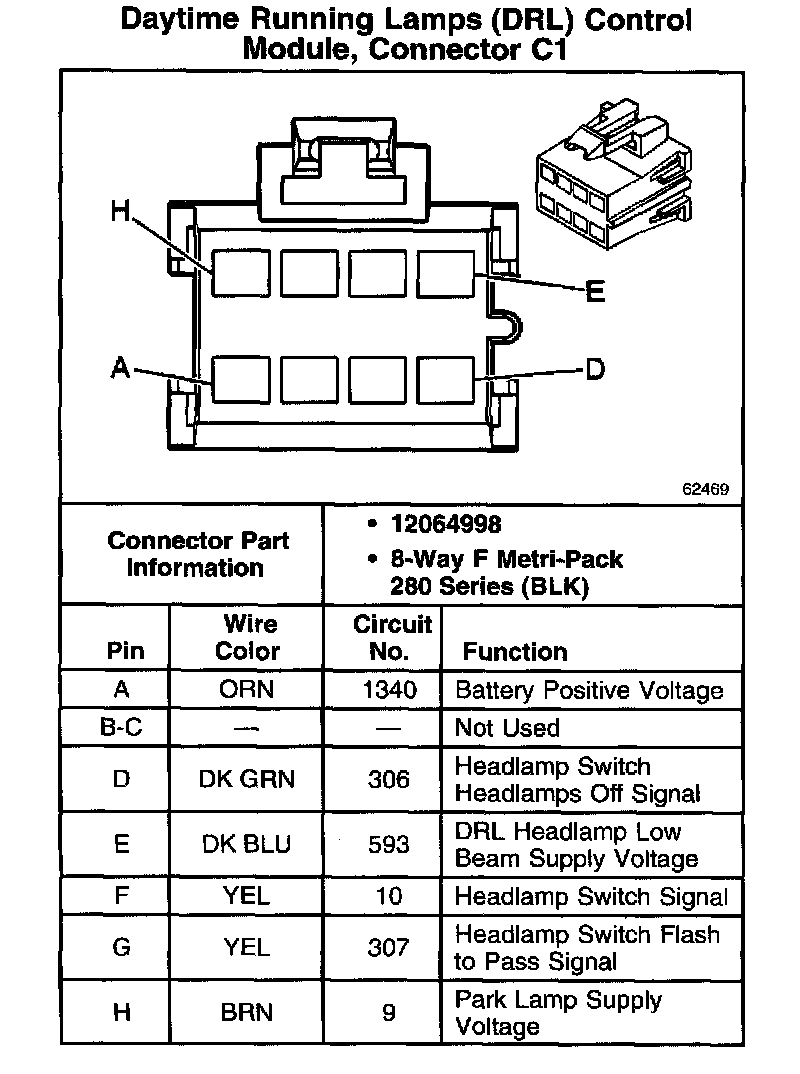

Daytime Running Lamps (DRL) Control Module, Connector C1:
