Home >> Pontiac >> 2001 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Front Passenger Door Module (FPDM) >> C3

C3

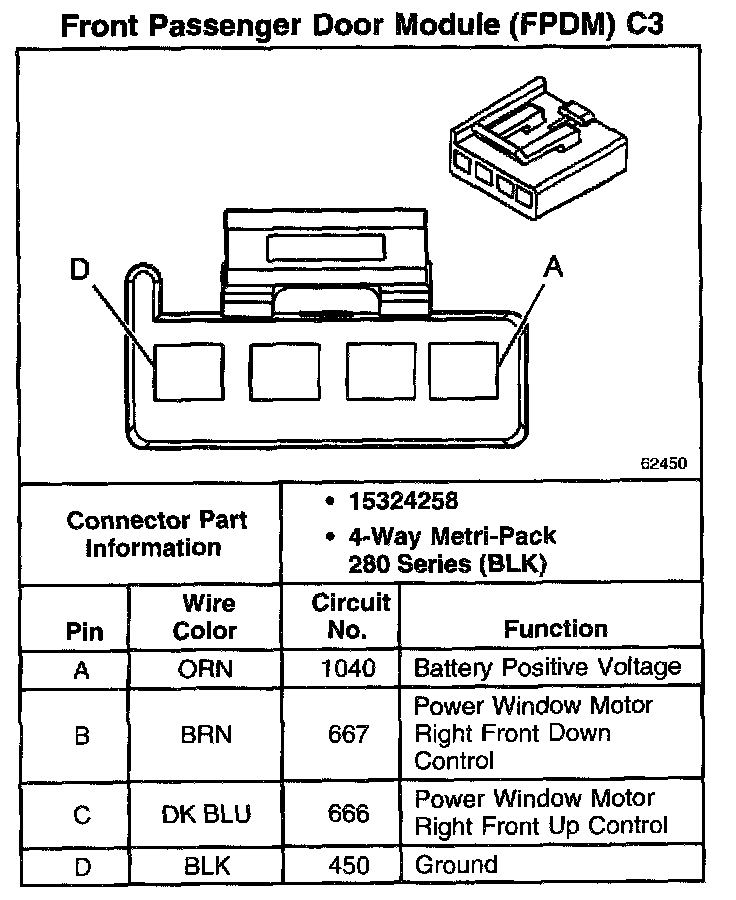

Front Passenger Door Module (FPDM) C3:
