Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>
Front Passenger Door Module (FPDM)
>>
C2
C2

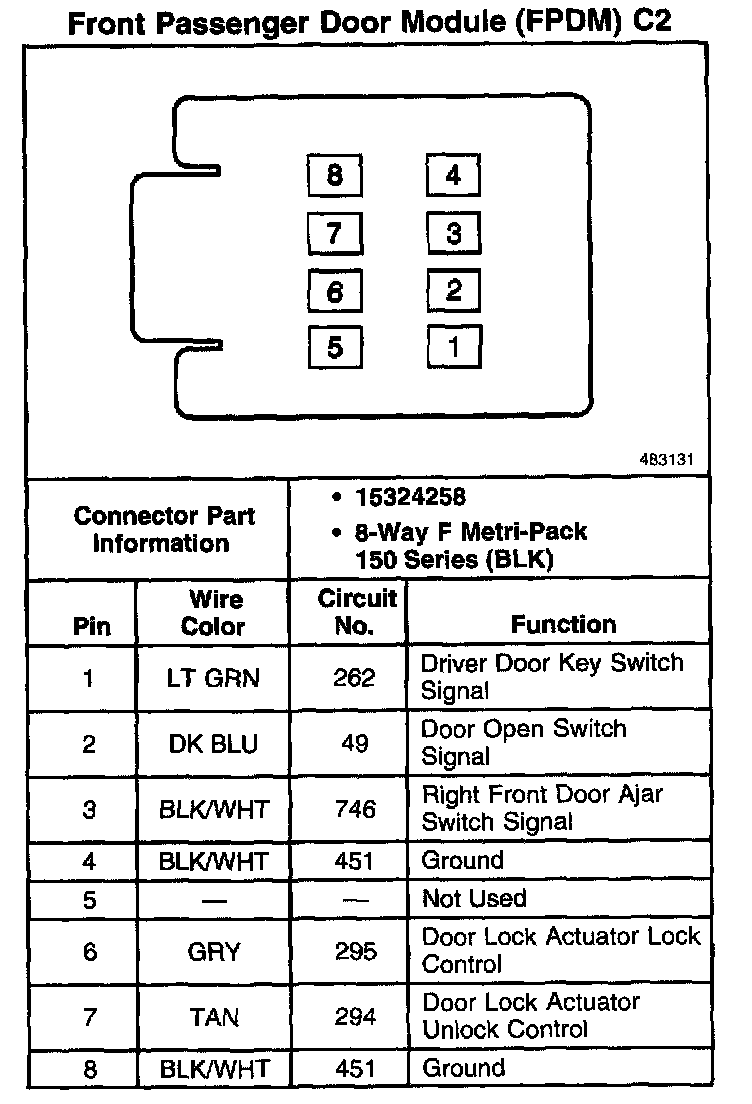

Front Passenger Door Module (FPDM) C2:
