Pontiac
>>
2000
>>
Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Ignition Controls
>>
Ignition Control Inputs
Ignition Control Inputs

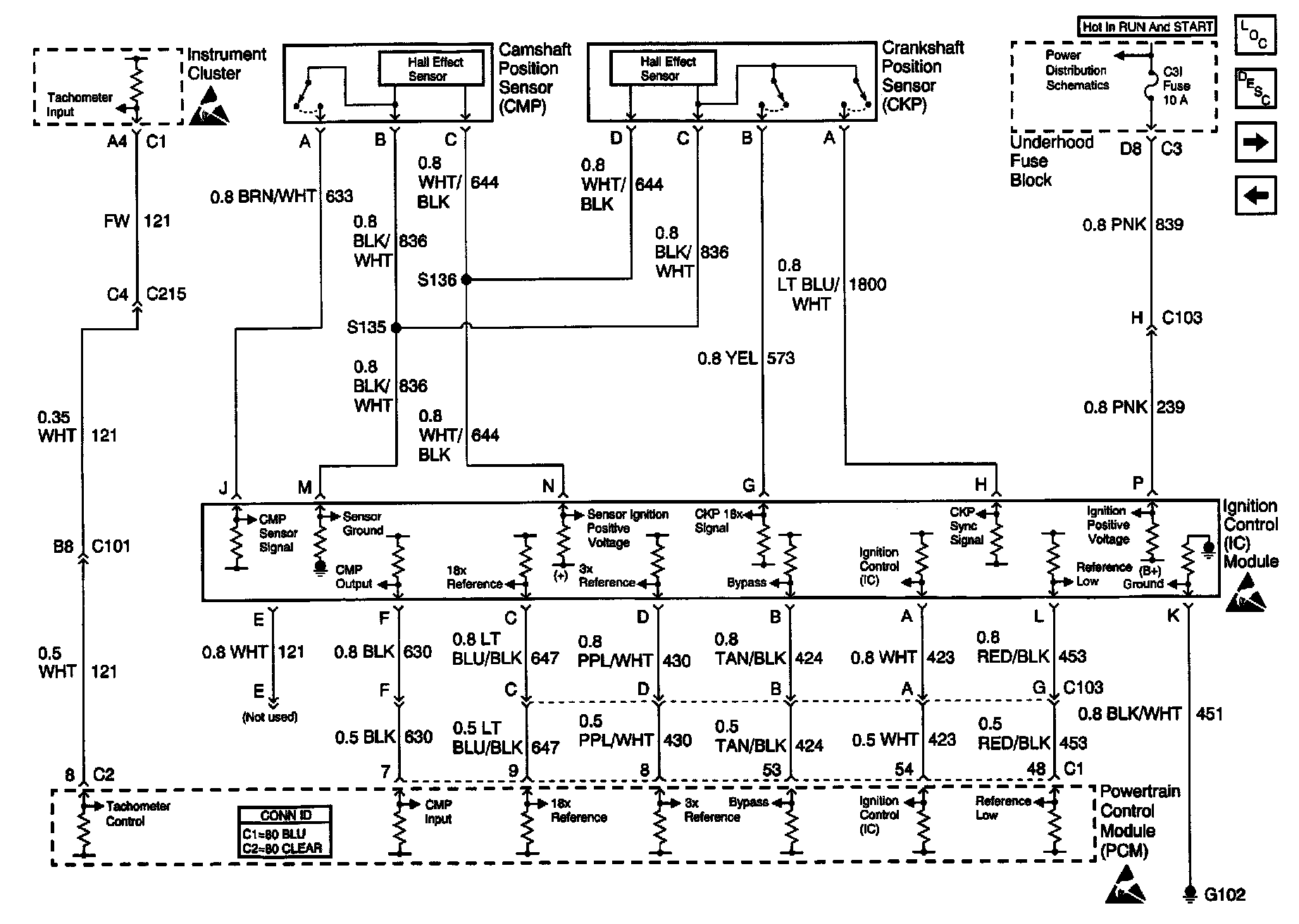

Engine Controls Schematics: Ignition Control Inputs:
