Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block - IP
Fuse Block - IP

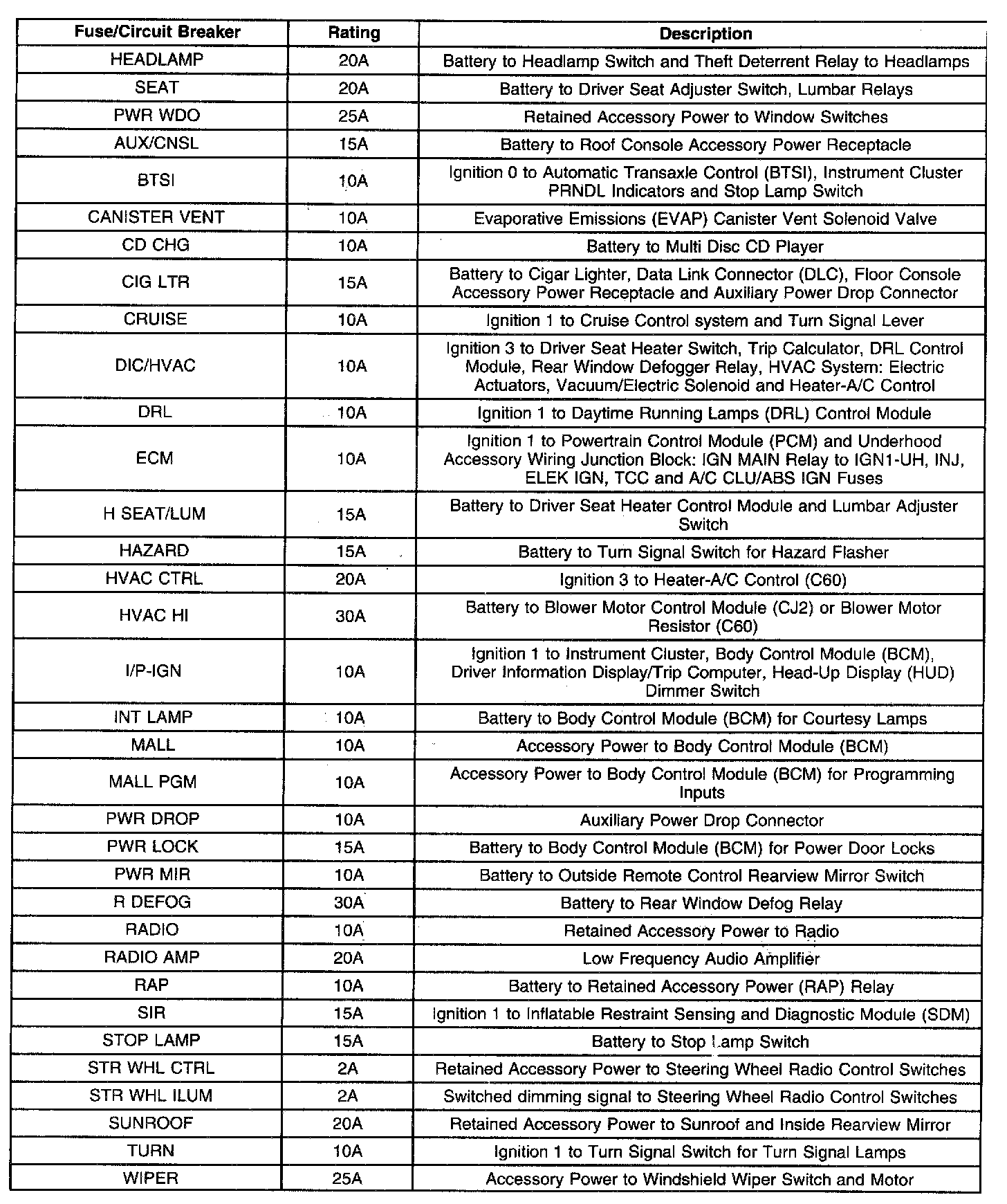

Fuse Blocks Details Schematics (I/P Fuse Block):

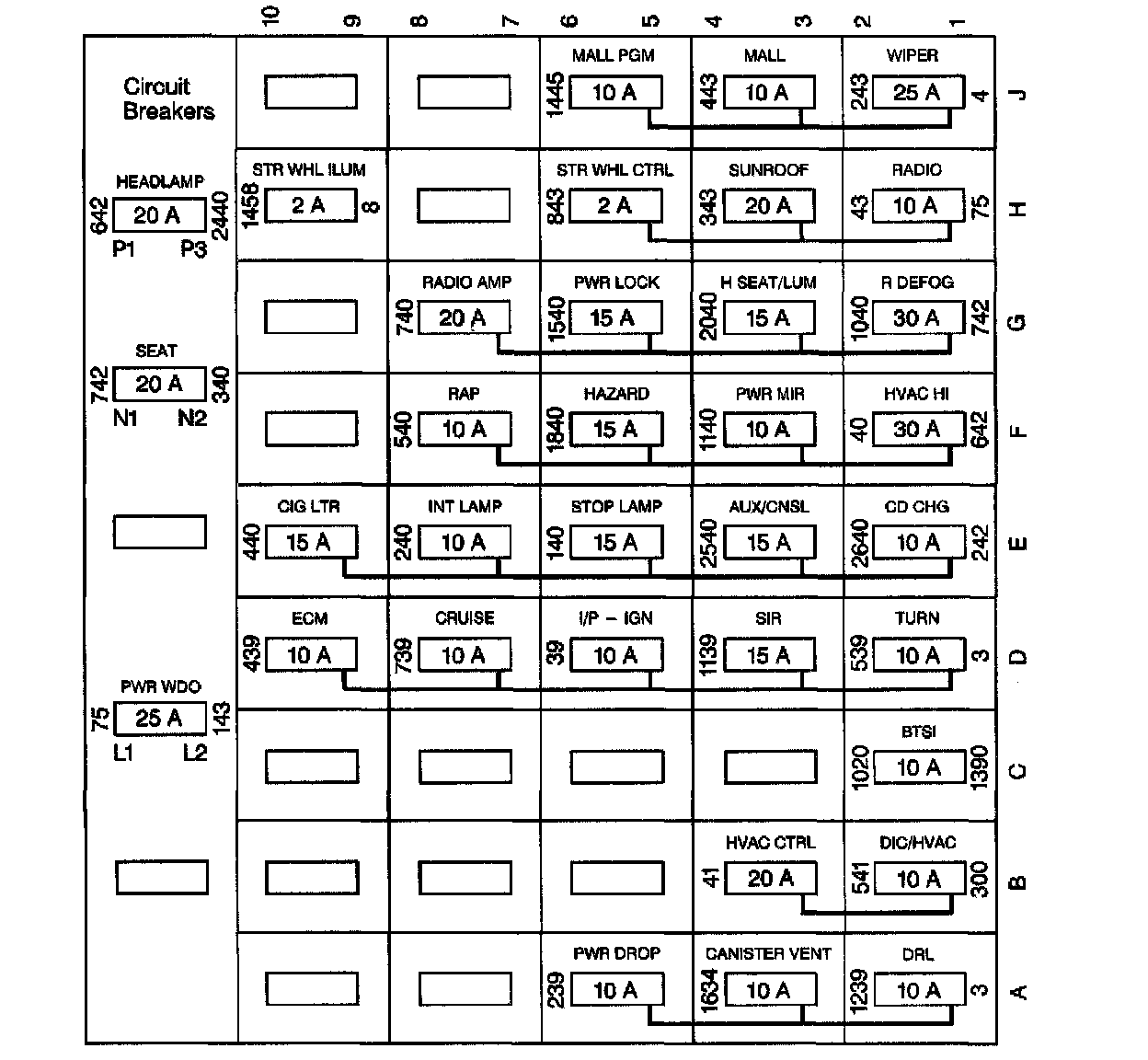

Fuse Blocks Details Schematics:
