Power Seat Control Module
>>
Seat Control Module (SCM)
>>
C4
C4

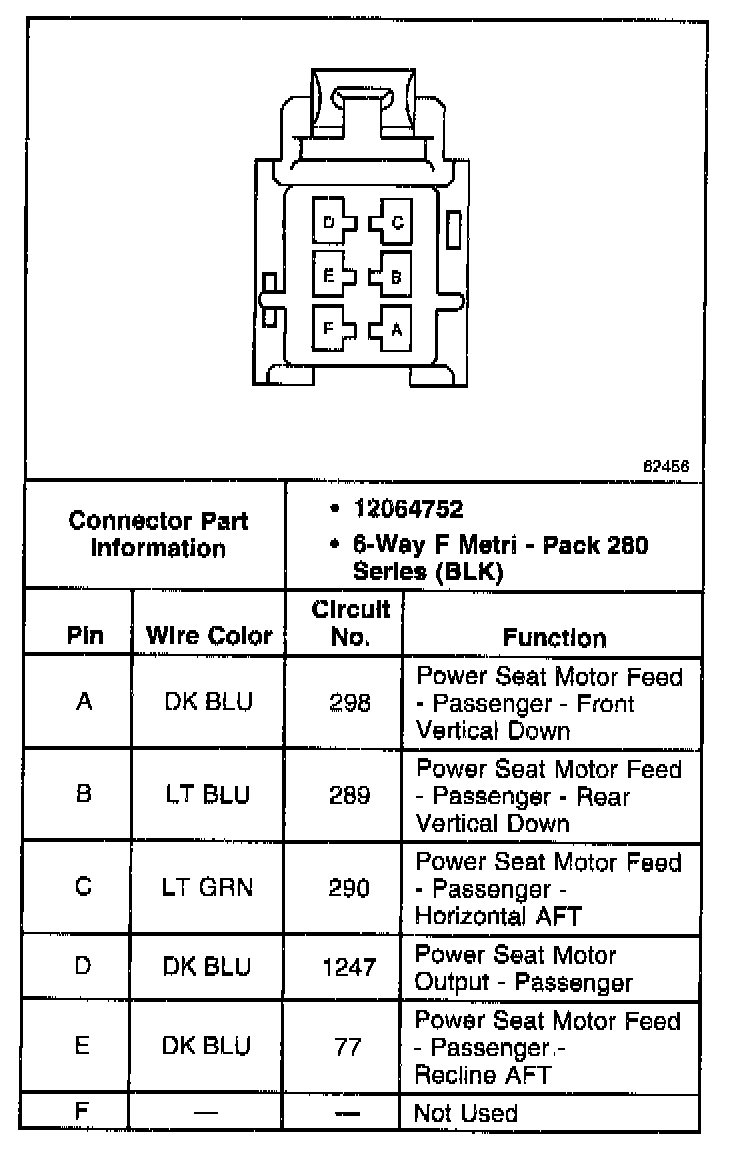

Seat Control Module C4 (Pontiac):

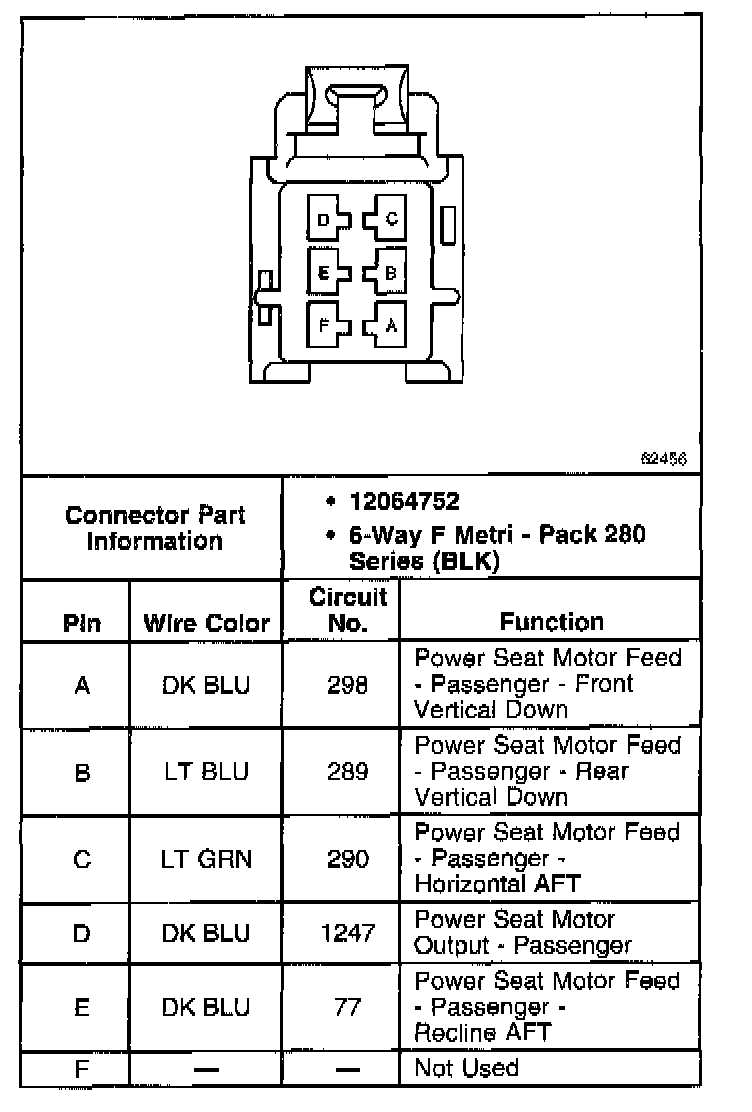

Seat Control Module C4 (Pontiac):
