Heater Core: Service and Repair

Removal Procedure

1. Remove the heater case.

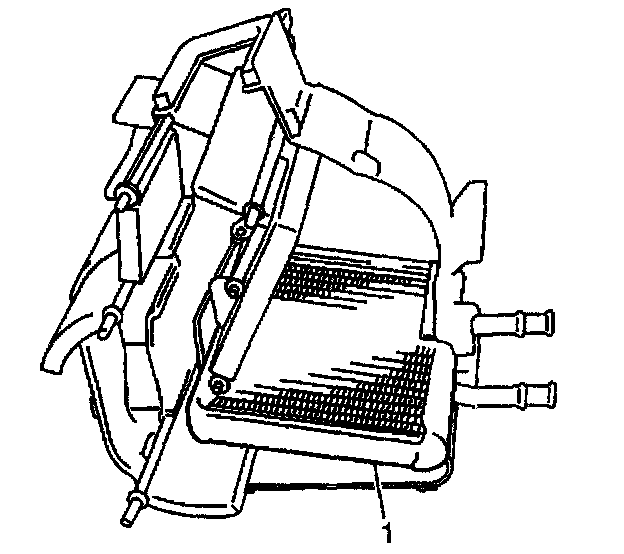

2. Remove the heater core (1) from the heater case.

Installation Procedure

1. Install the heater core (1) to the heater case.
2. Install the heater case.
