Home >> Pontiac >> 1998 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Sensing and Diagnostic Module (SDM)

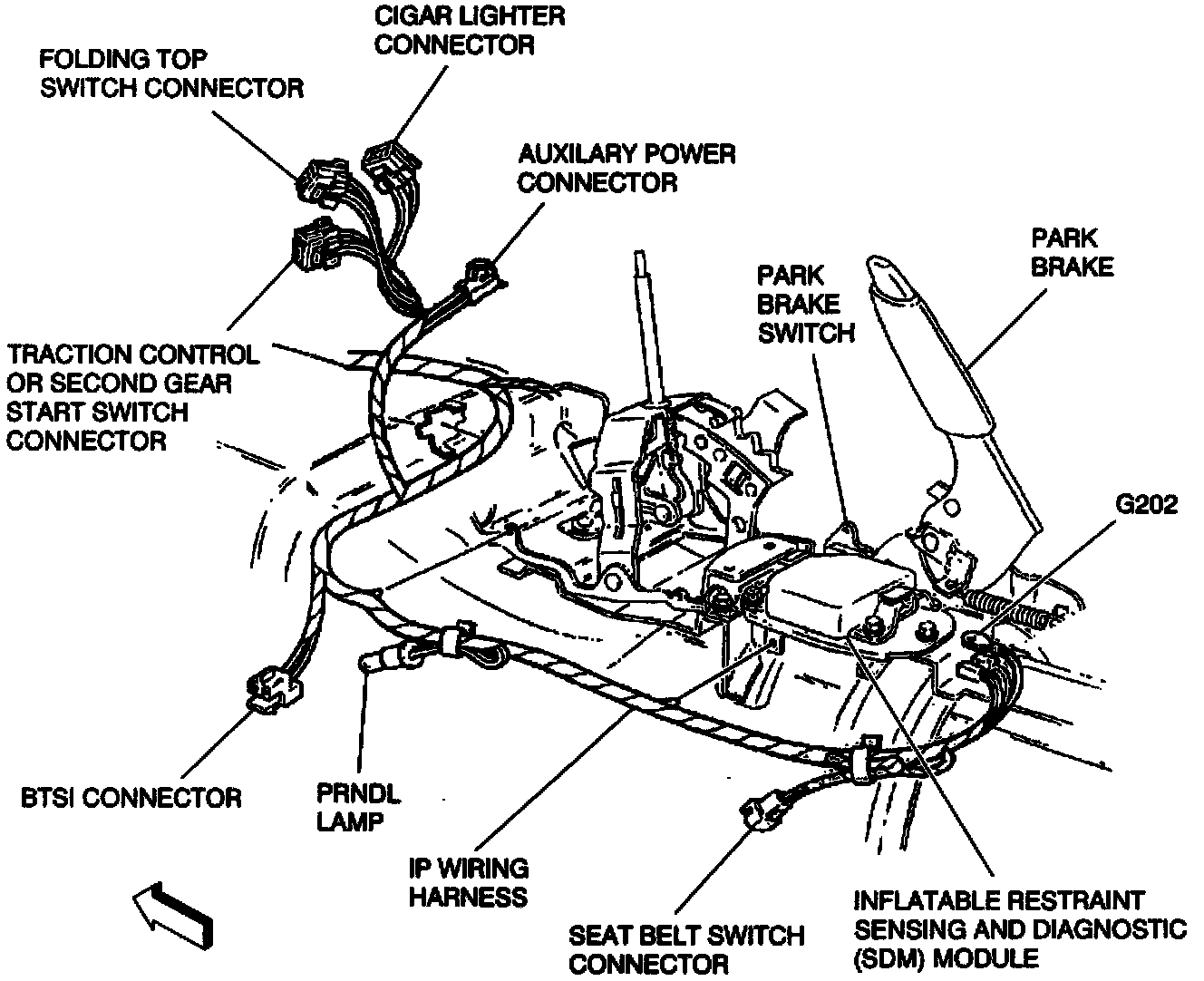

Sensing and Diagnostic Module (SDM)

Under Console, Left Side (Automatic Transmission):
