Pontiac
>>
1997
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>

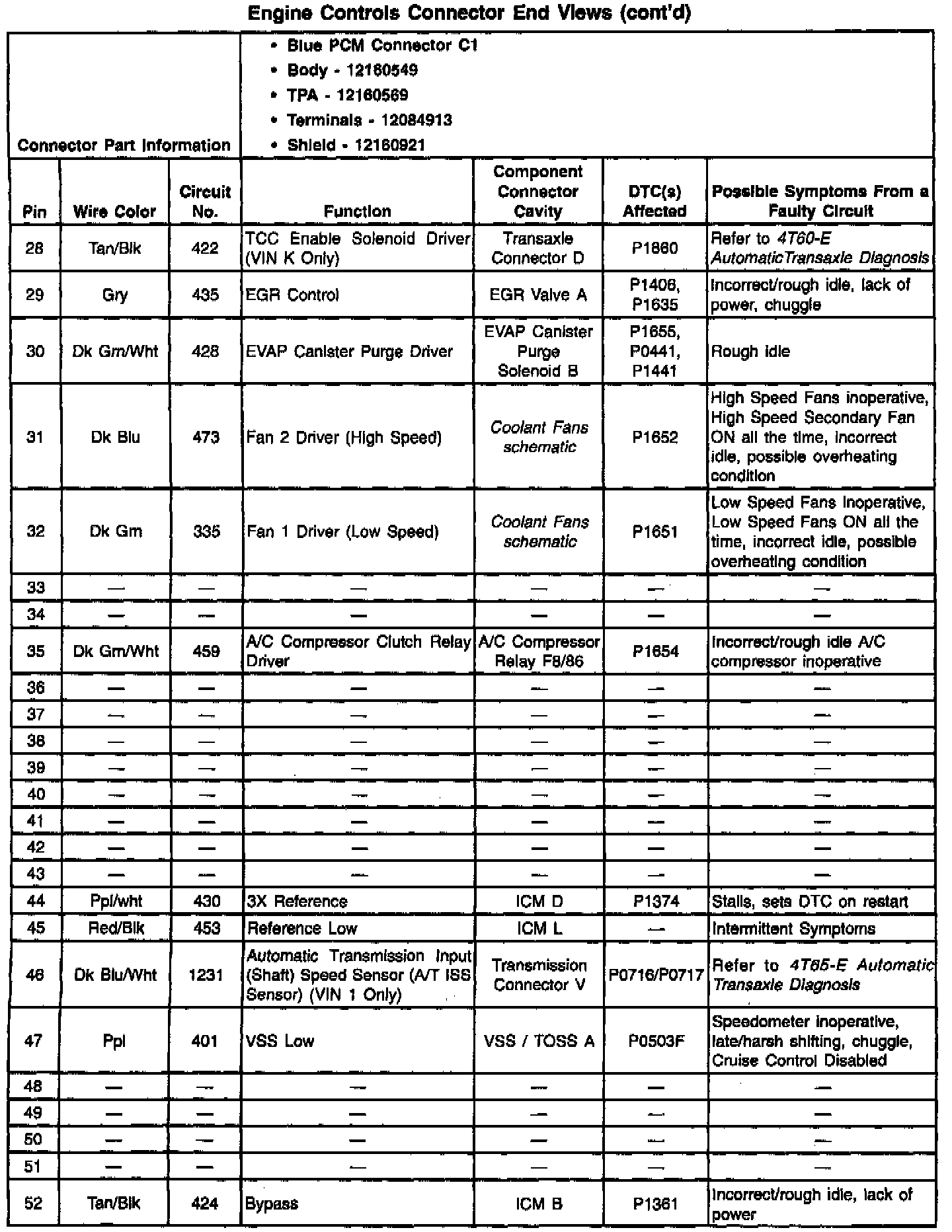

C1 (Blue)
>>
Pin Information
>>
Pins 28-52
Pins 28-52
Diagnostic Chart:
