Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
Electronic Brake/Traction Control Module (EBTCM)
>>

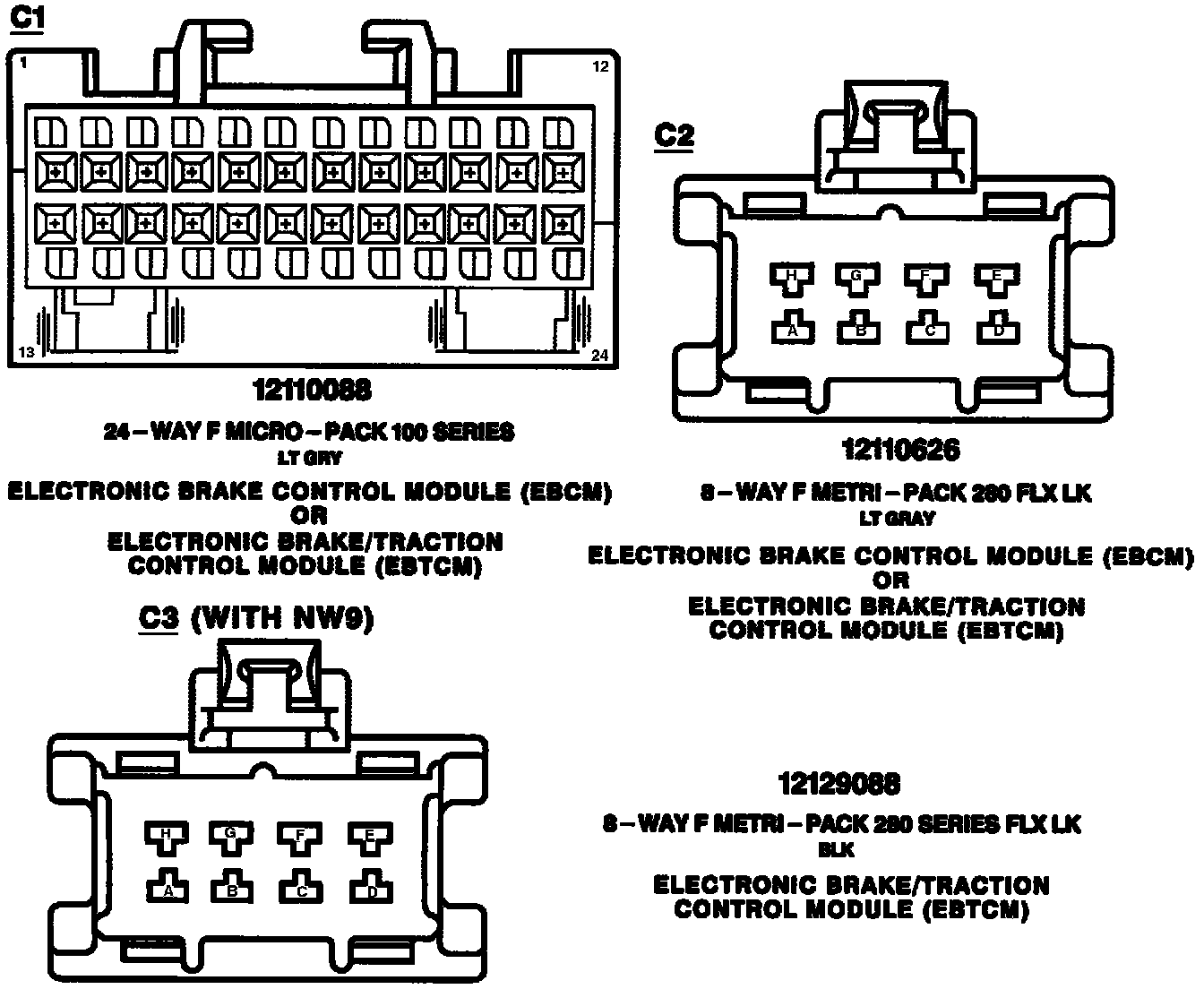

Harness Connector
Harness Connector
Electronic Brake Control Module Or Electronic Brake/traction Control Module:
