Alternator: Service and Repair

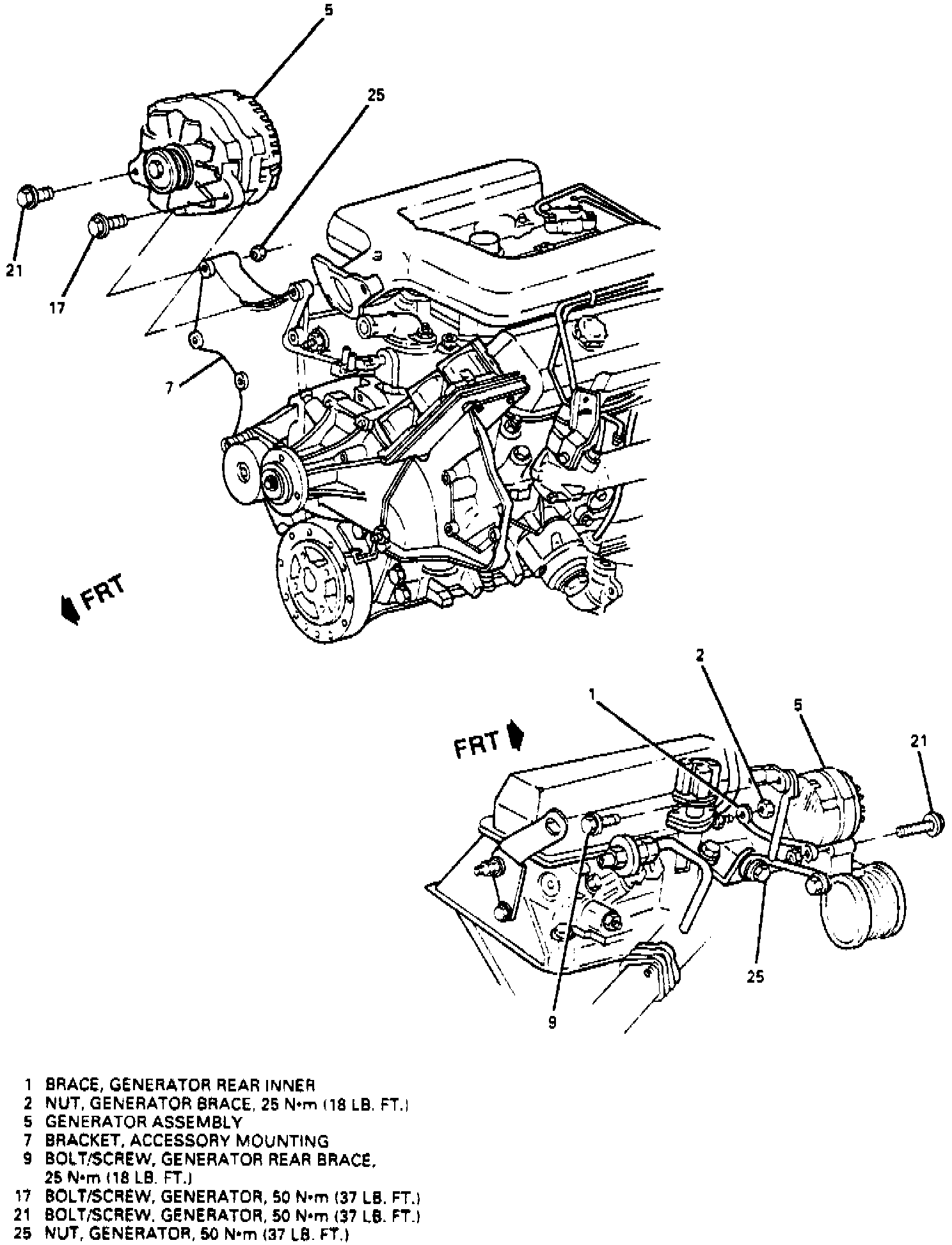

Fig. 3 Alternator Replacement:

Disconnect battery ground cable. Refer to Fig. 3 for alternator replacement.
