Home >> Pontiac >> 1992 >> Grand AM V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> C2

C2

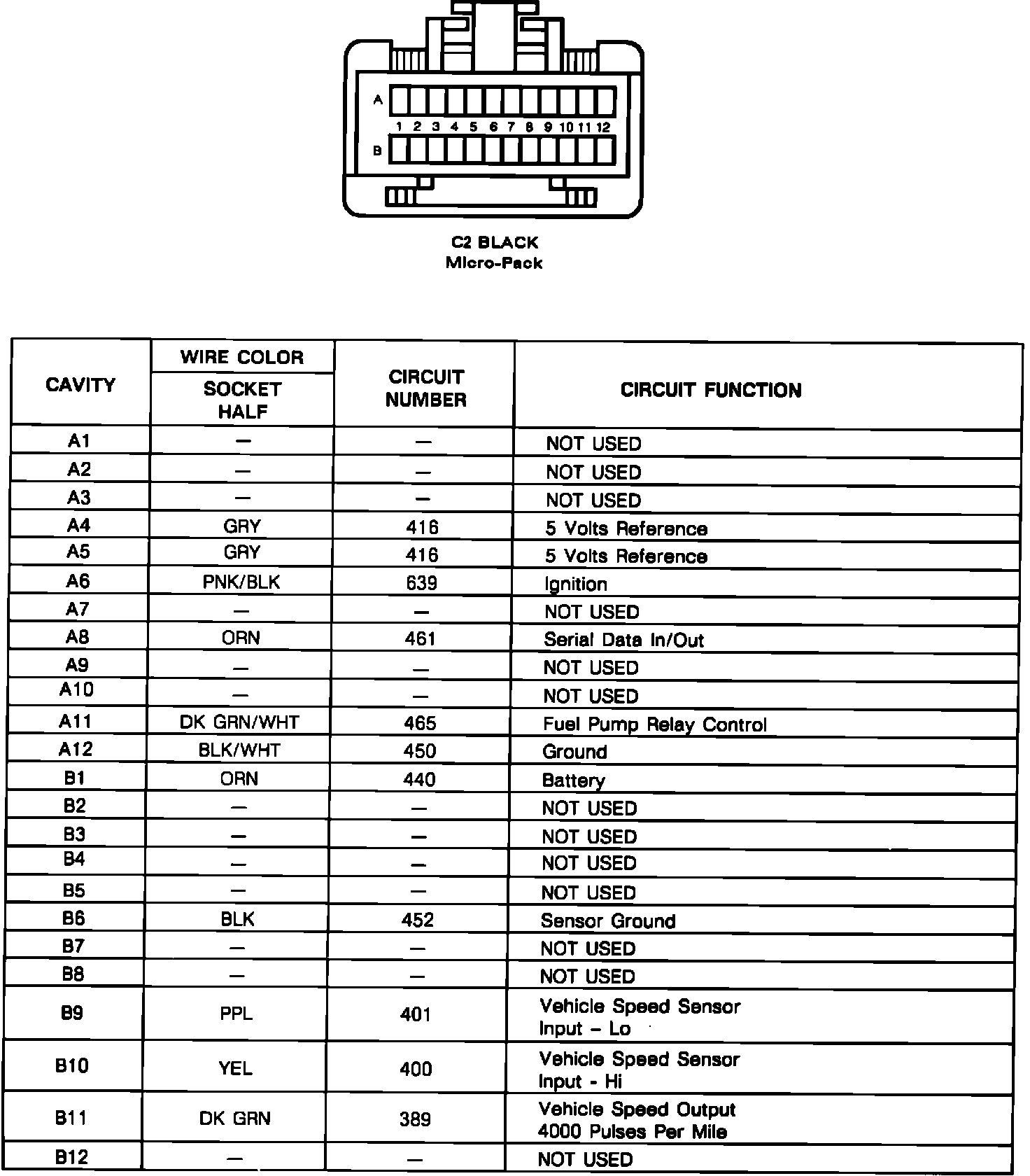

ECM C2 Connector Face:
