Oxygen Sensor
>>
Diagrams
>>
Connector Views
Connector Views

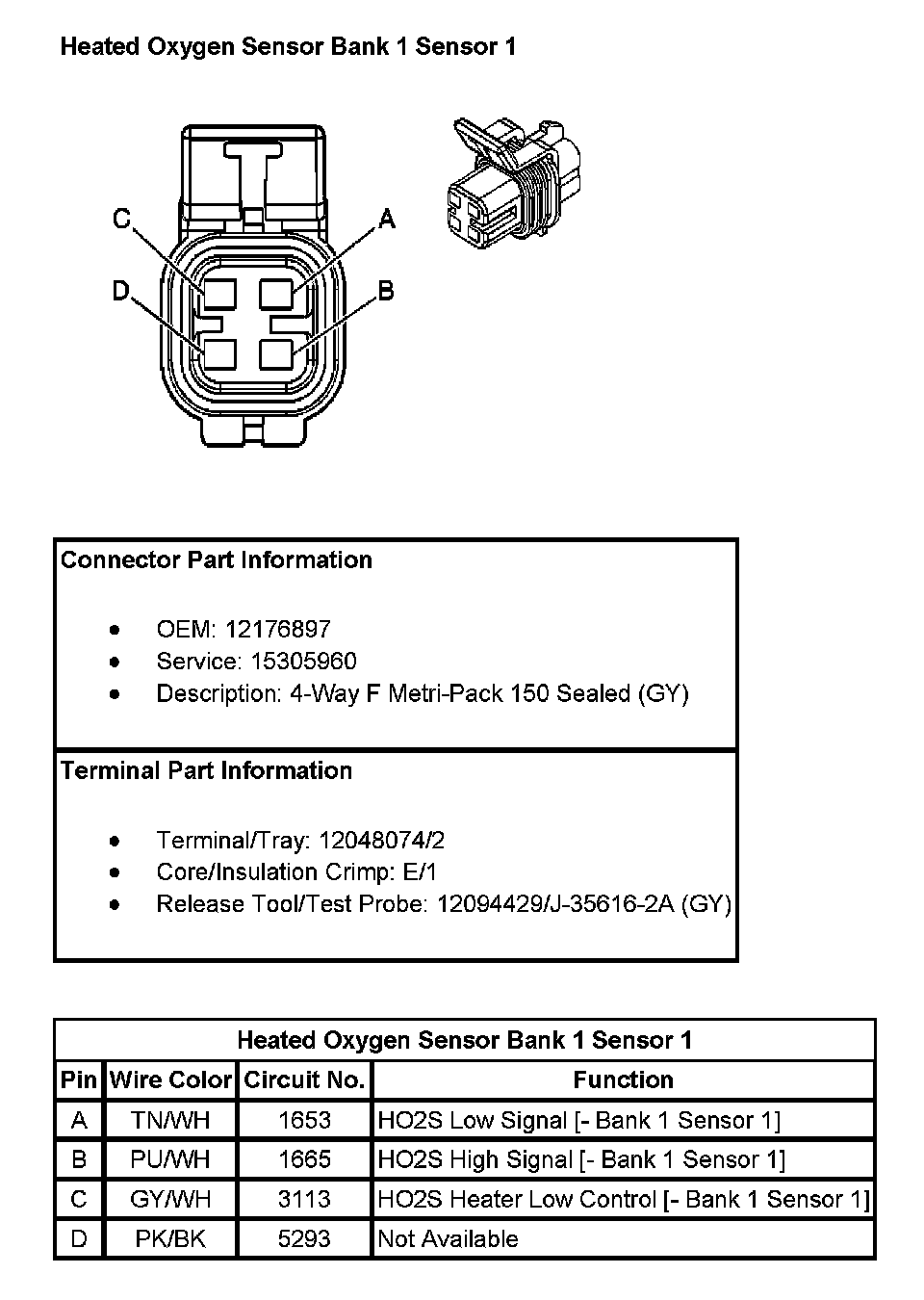

Heated Oxygen Sensor Bank 1 Sensor 1:

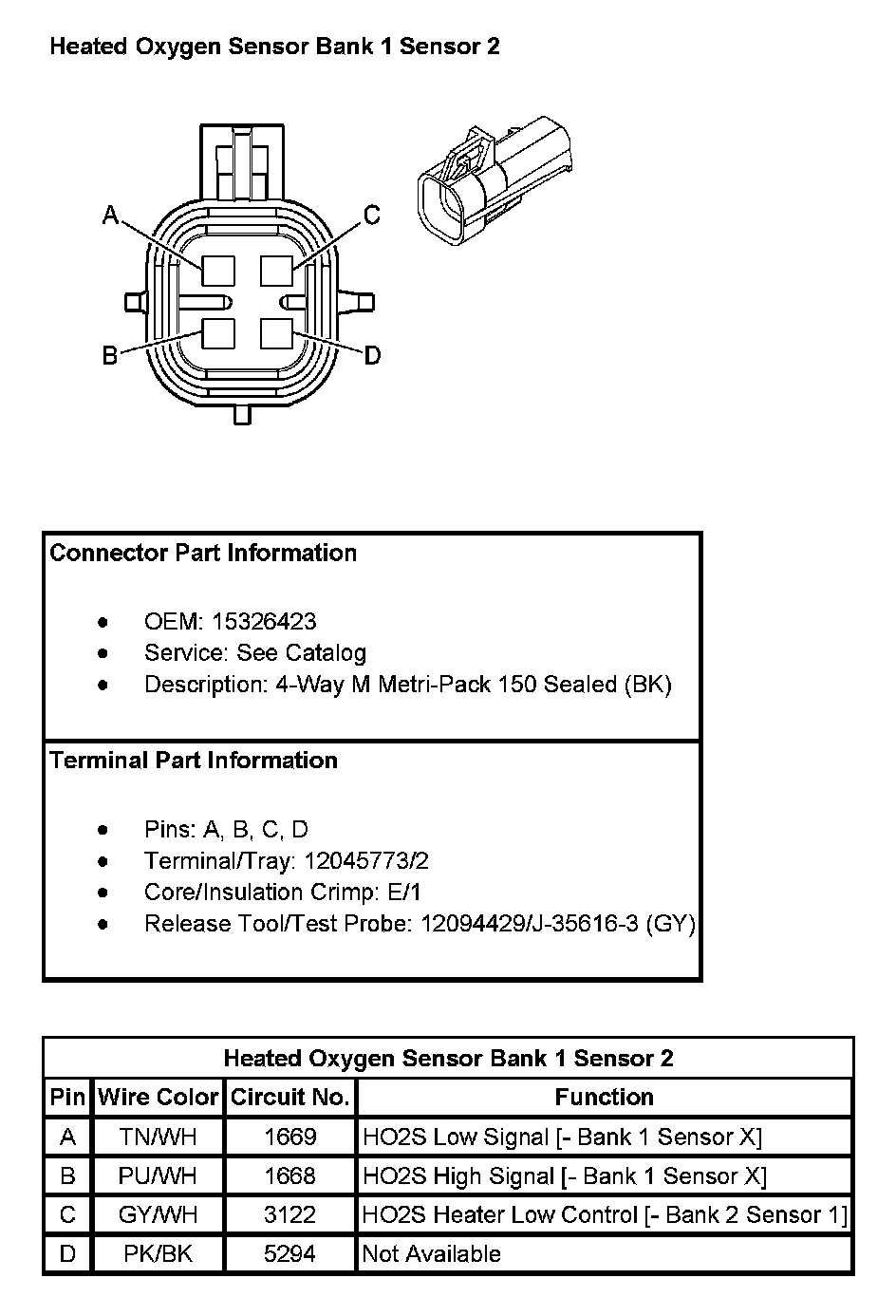

Heated Oxygen Sensor Bank 1 Sensor 2:
