Home >> Pontiac Truck >> 2007 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations

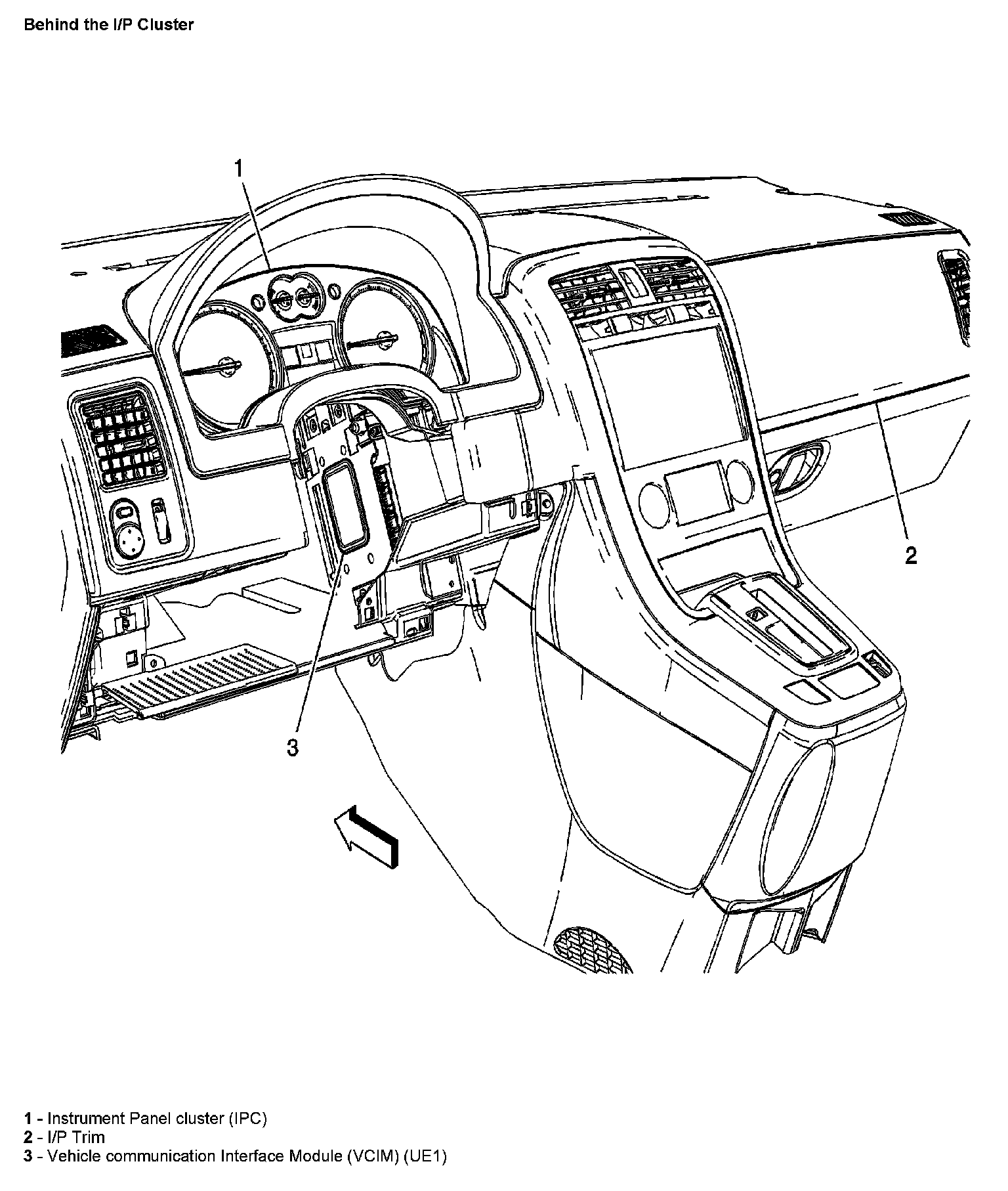

Behind The I/P Cluster:

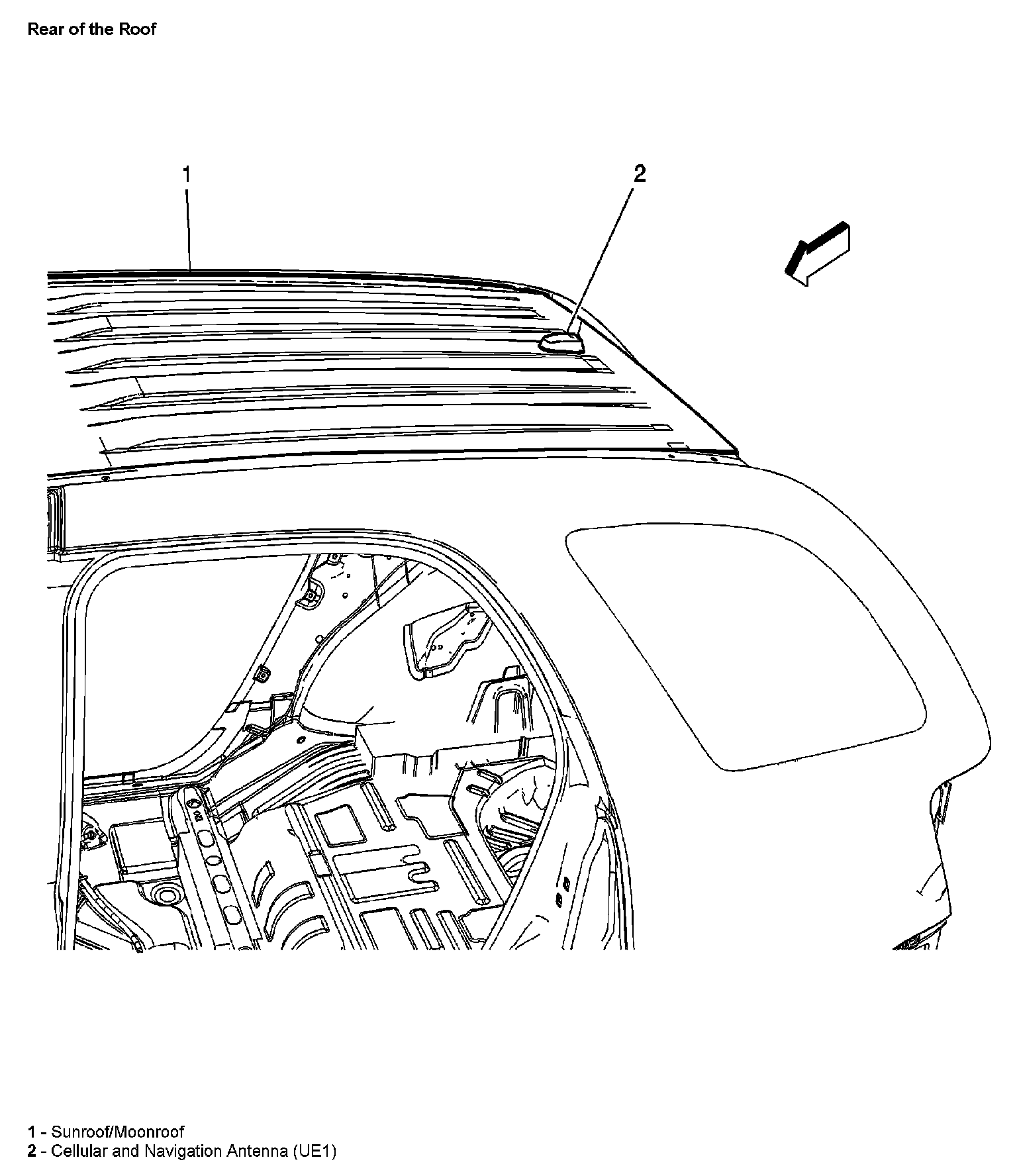

Rear Of The Roof:
