Pontiac Truck
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

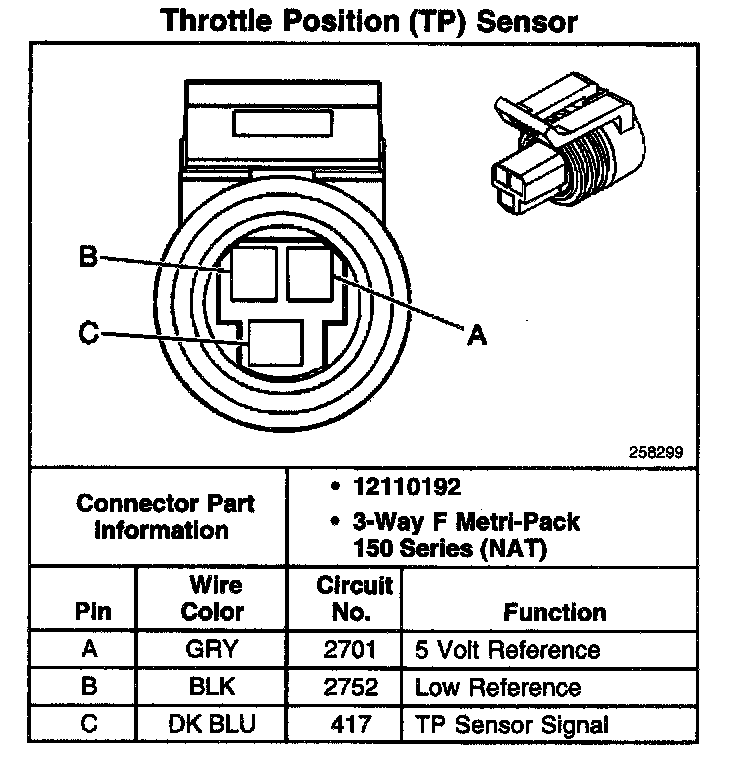

Trottle Position (TP) Sensor:
