Home >> Pontiac Truck >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> TCC Solenoid Control,SS Valve Control and TFT Sensor

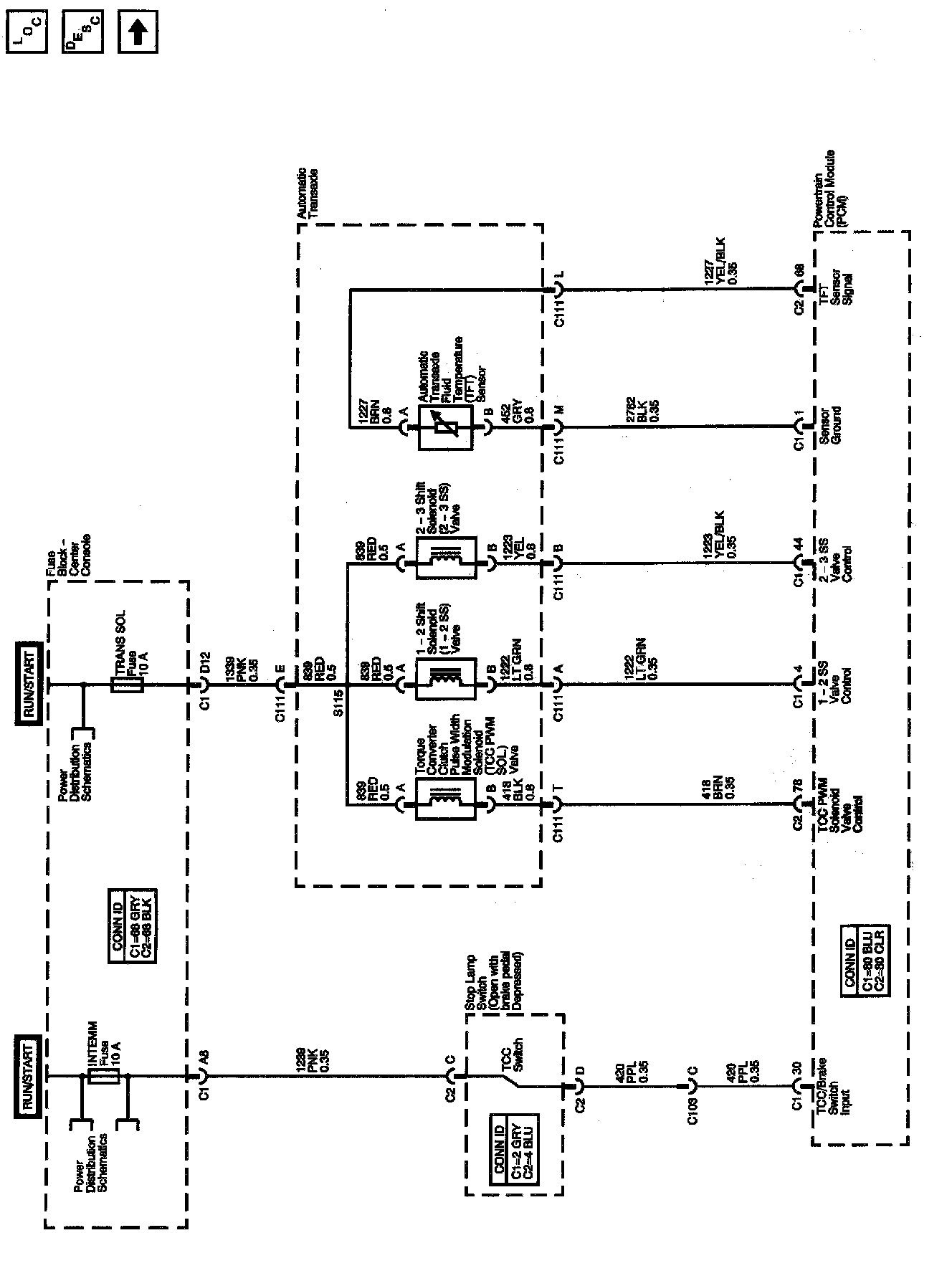

TCC Solenoid Control,SS Valve Control and TFT Sensor
