Curiosii for ever!: Car repair manuals for everyone.
Home >> Pontiac Truck >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Control Module - C1

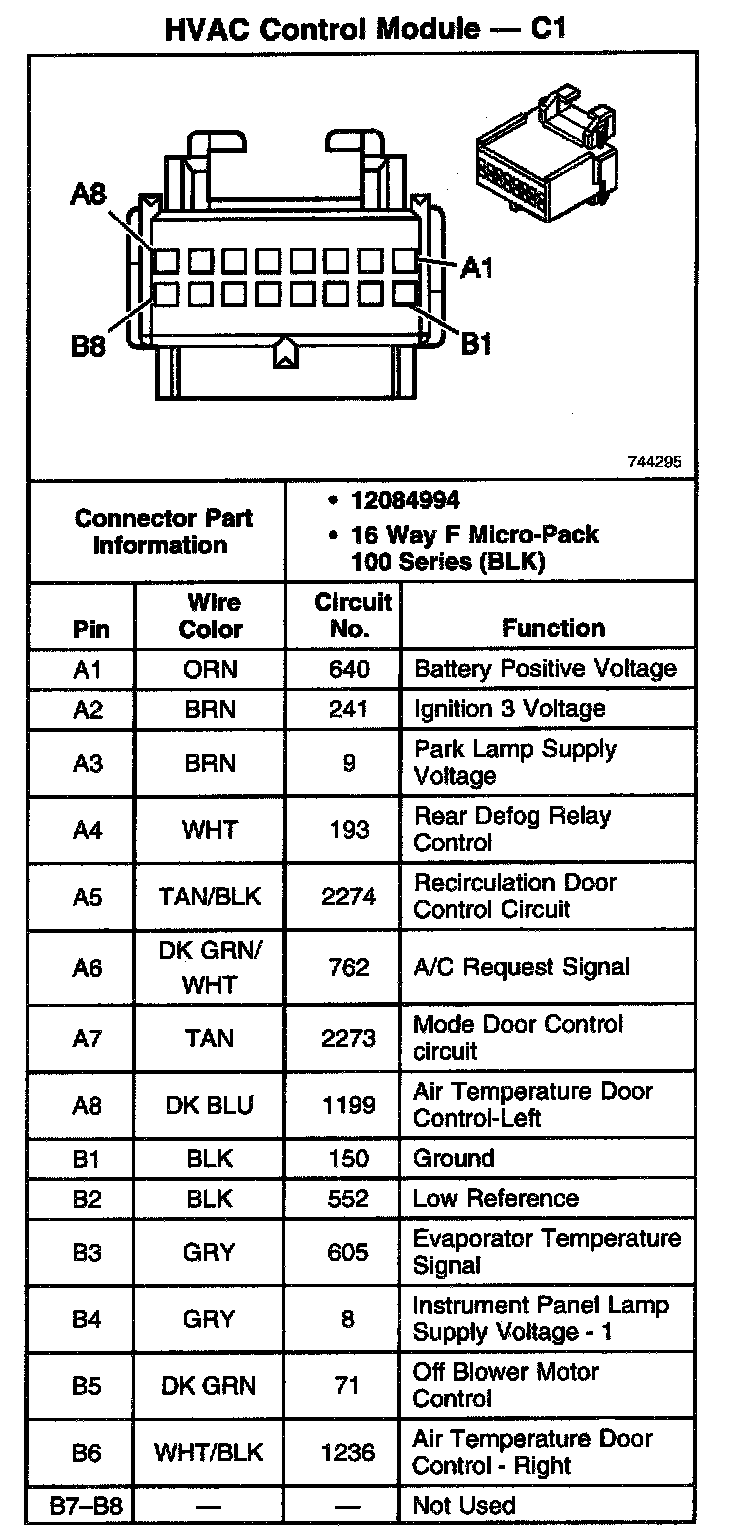

HVAC Control Module - C1

HVAC Control Module - C1:
