Home >> Plymouth Truck >> 1982 >> Arrow/D50 Import L4-2000cc 2.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Firing Order >> Specifications

Firing Order: Specifications

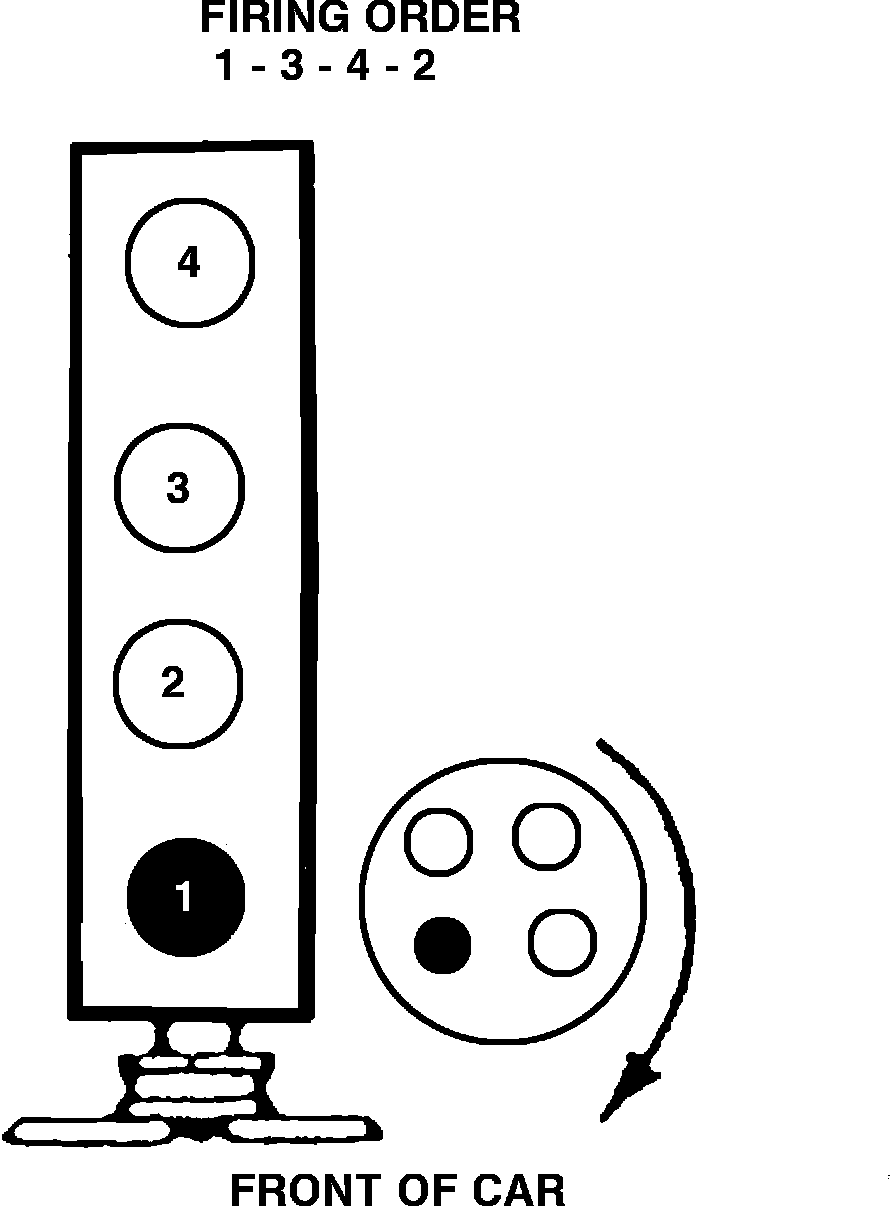

FIRING ORDER 2.0L FWD:

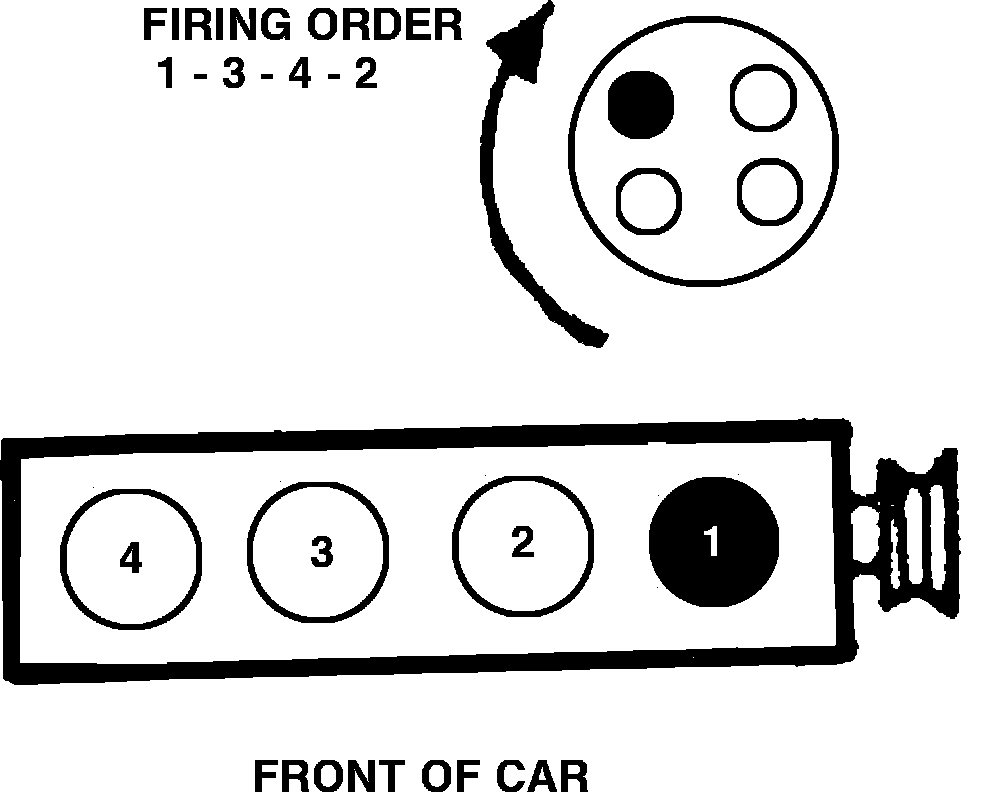

FIRING ORDER 2.0L RWD & 2.6L:
