Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Intake Manifold
Intake Manifold
Intake Manifold

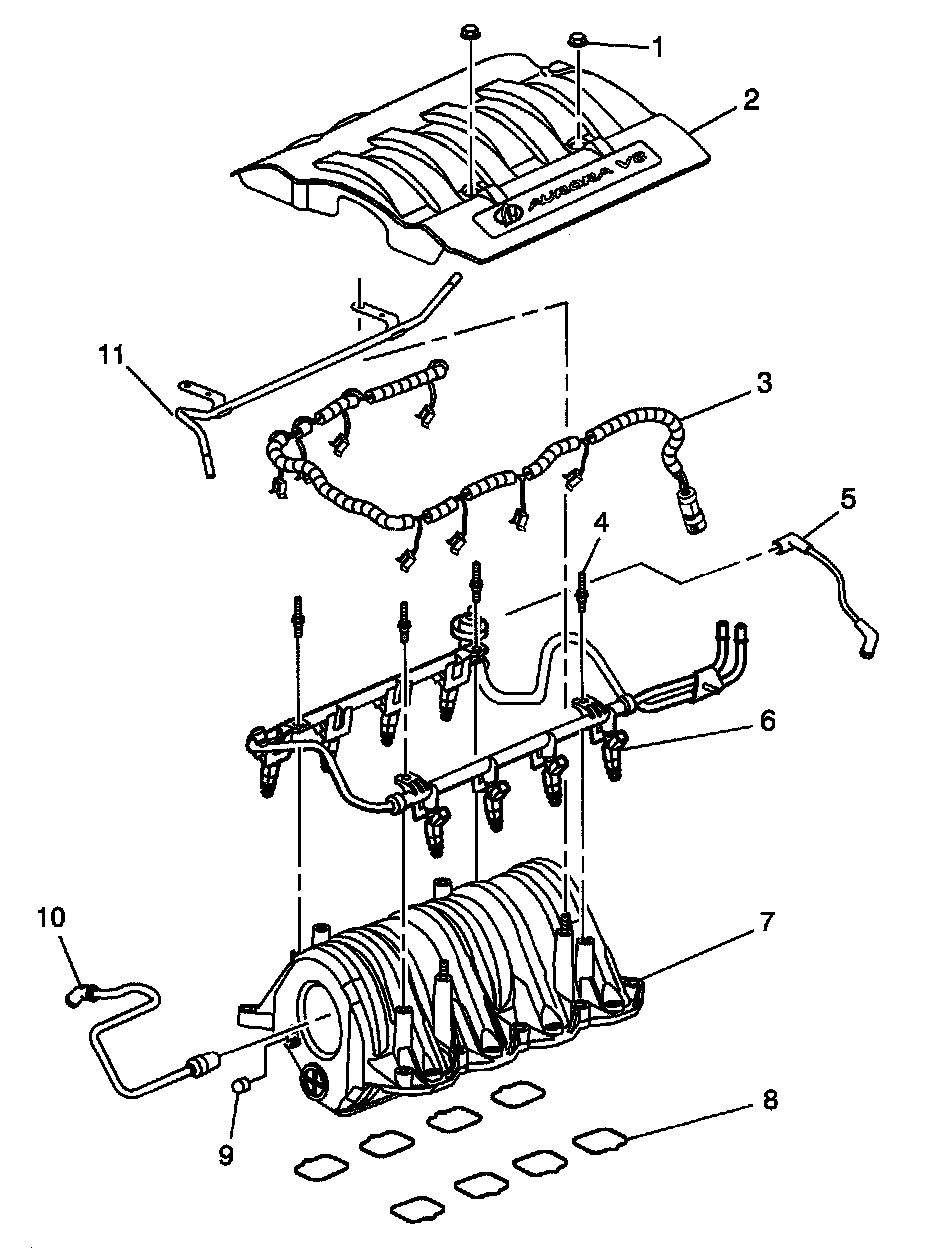

Disassembled View

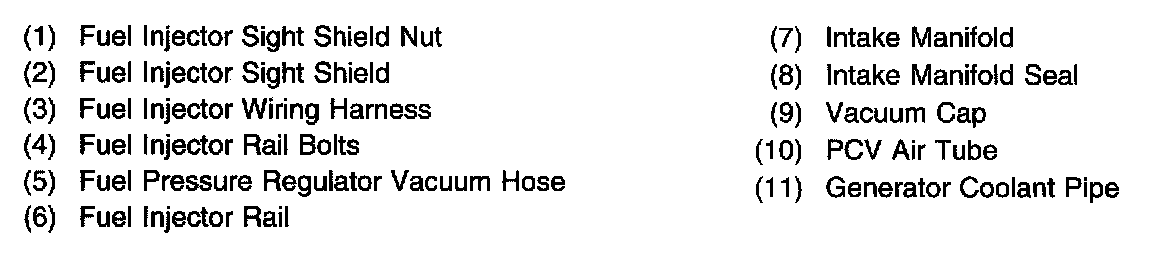

Legend
