Rear Seat Back Sound Barrier Replacement

Rear Seat Back Sound Barrier Replacement

Removal Procedure

1. Remove the rear window trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).
2. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) in Seats.
3. Remove the rear seatback. Refer to Rear Seat Back Replacement (Stationary Seatback) (Rear Seat Back Replacement (Stationary Seatback))Rear Seat Back Replacement (Split Folding Seatback) (Rear Seat Back Replacement (Split Folding Seatback)) in Seats.

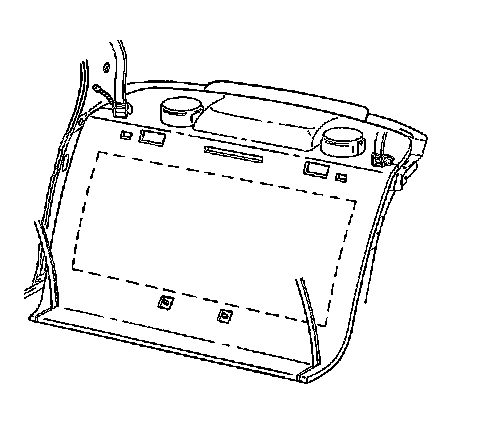

4. Lift the rear seatback sound barrier from the rear seatback reinforcement panel.
5. Remove the sound barrier from the vehicle.


Installation Procedure




1. Install the rear seatback sound barrier to the rear seatback reinforcement panel.
2. Install the rear window trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).
3. Install the rear seatback. Refer to Rear Seat Back Replacement (Stationary Seatback) (Rear Seat Back Replacement (Stationary Seatback))Rear Seat Back Replacement (Split Folding Seatback) (Rear Seat Back Replacement (Split Folding Seatback)) in Seats.
4. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) in Seats.
