Rear Seat Back Cover Replacement

Rear Seat Back Cover Replacement

Removal Procedure

1. Remove the seat back. Refer to Rear Seat Back Replacement (Stationary Seatback) (Rear Seat Back Replacement (Stationary Seatback))Rear Seat Back Replacement (Split Folding Seatback) (Rear Seat Back Replacement (Split Folding Seatback)).




2. Remove the hog rings connecting the cover to the frame.

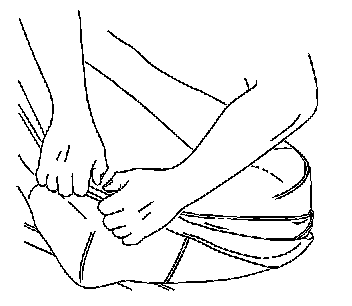

3. Reach inside of the rear seat back cover and unfasten the hook and loop retainers securing the seat back cover to the pad.
4. Remove the cover from the frame.


Installation Procedure




1. Install the cover over the frame.




2. Install the hog rings.
3. Close the J-retainers on the seat back support bolsters.
4. Install the seat back. Refer to Rear Seat Back Replacement (Stationary Seatback) (Rear Seat Back Replacement (Stationary Seatback))Rear Seat Back Replacement (Split Folding Seatback) (Rear Seat Back Replacement (Split Folding Seatback)).
