Seat Temperature Switch: Service and Repair

Front Seat Heater Switch Replacement

Removal Procedure




1. Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Front Floor Console Trim Plate Replacement) in Instrument Panel, Gages and Console.

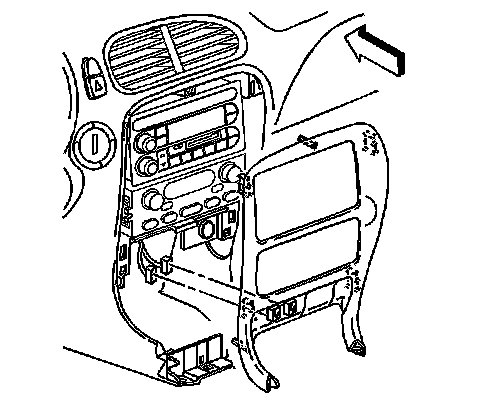

2. Pull the instrument panel (IP) accessory trim plate away from the IP trim pad.
3. Disconnect the seat heater leads from the IP harness.




4. Remove the seat heater switches from the IP accessory trim plate.

Installation Procedure




1. Install the seat heater switches to the IP accessory trim plate.




2. Connect the seat heater leads to the IP harness.
3. Align the retainers on the IP accessory trim plate to the openings in the IP trim pad.
4. Press the IP accessory trim plate to the IP trim pad. Fully seat the retainers.
5. Install the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Front Floor Console Trim Plate Replacement) in Instrument Panel, Gages and Console.
