Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> IP Junction Block, RH

IP Junction Block, RH

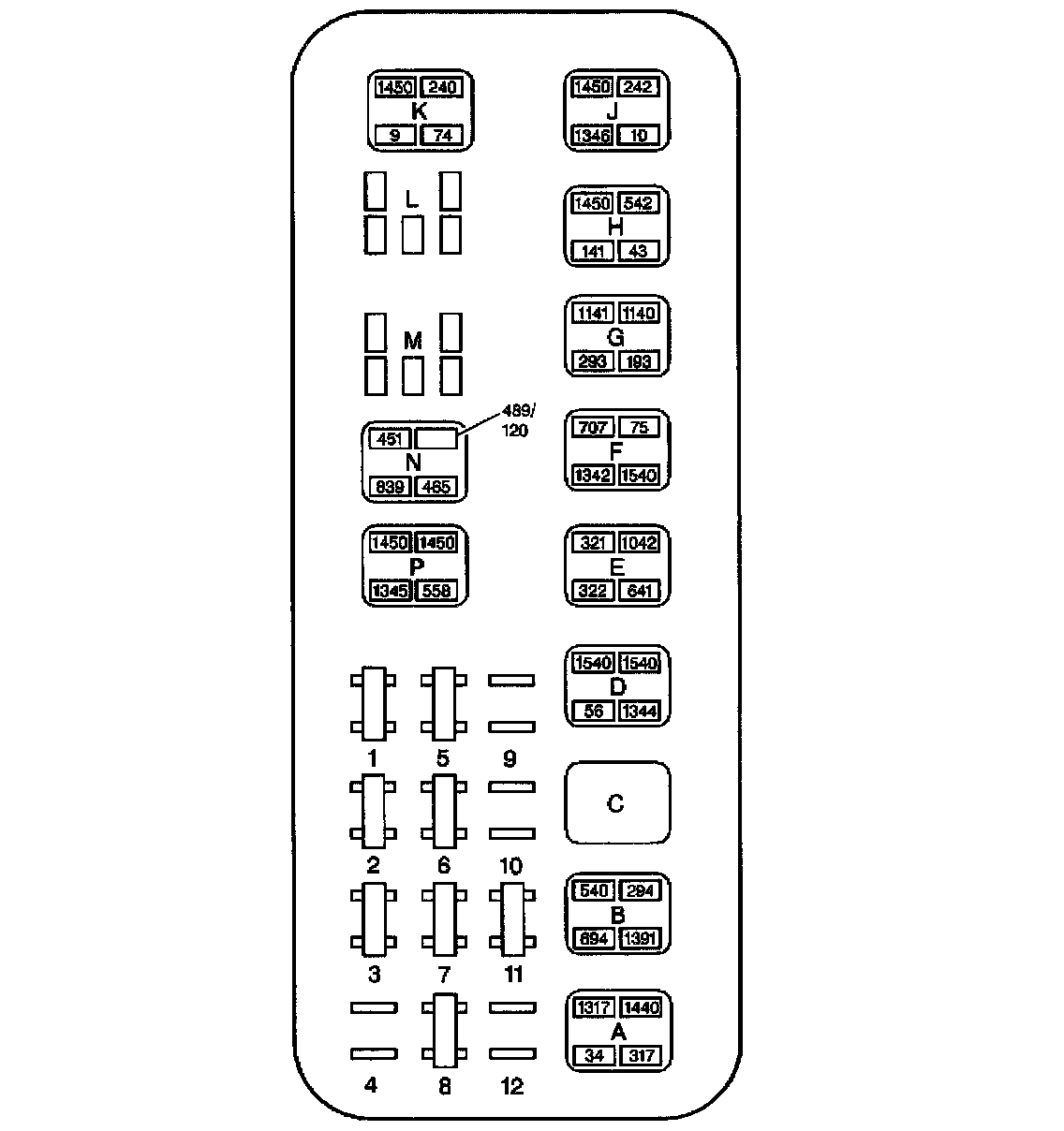

RH IP Fuse Block:
