Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Lumbar Seat Module (C2)

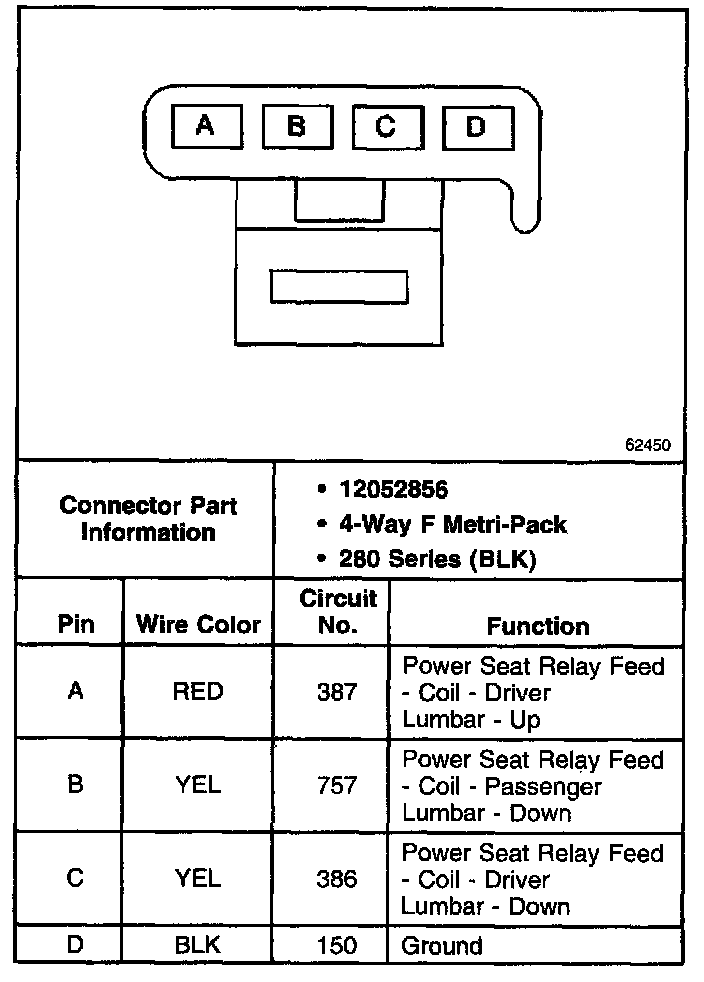

Lumbar Seat Module (C2)

Lumbar Seat Module (C2):
