Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Lumbar Seat Module (C1)

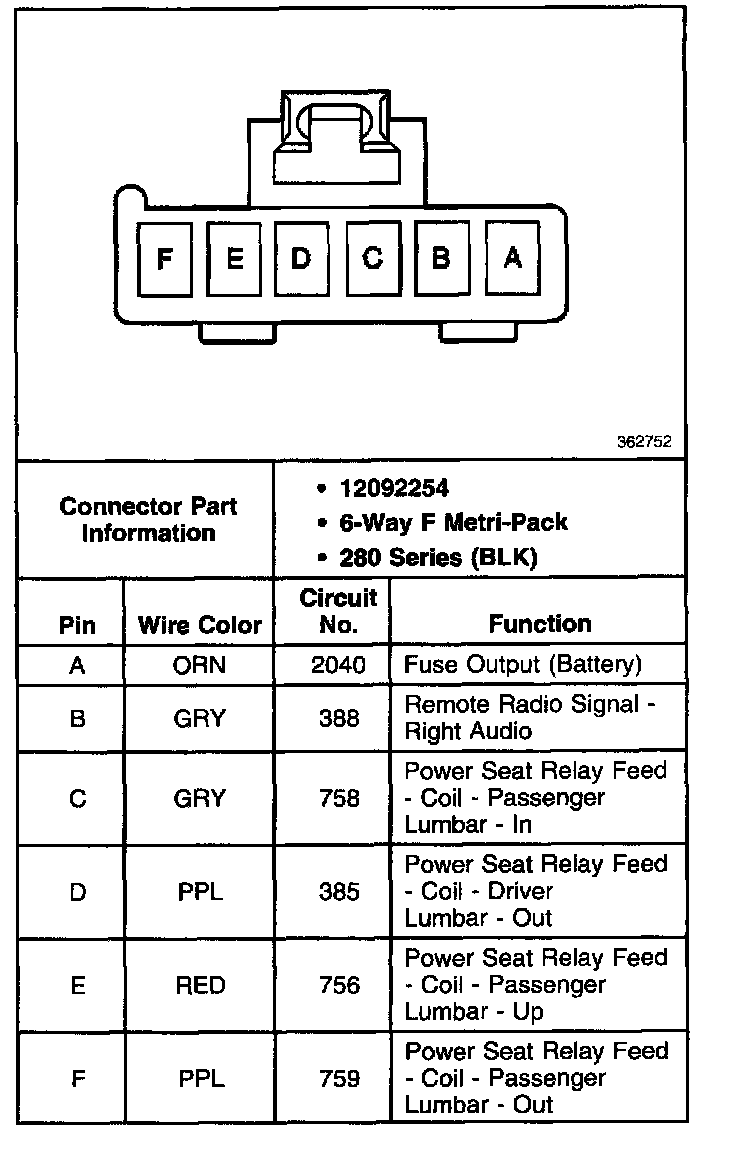

Lumbar Seat Module (C1)

Lumbar Seat Module (C1):
