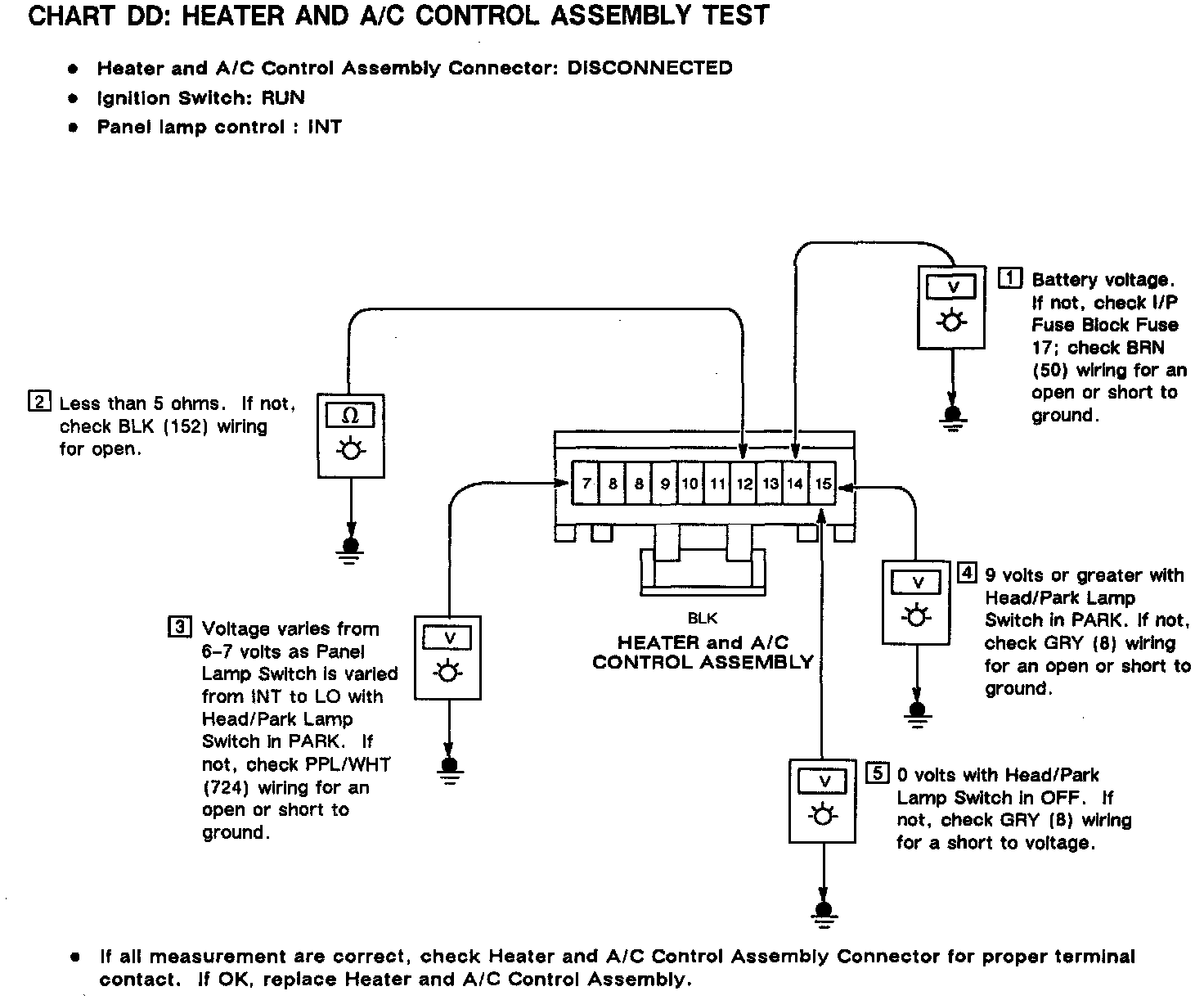

Chart DD: Heater & A/C Control Assembly Test
Chart DD: Heater & A/C Control Assembly Test

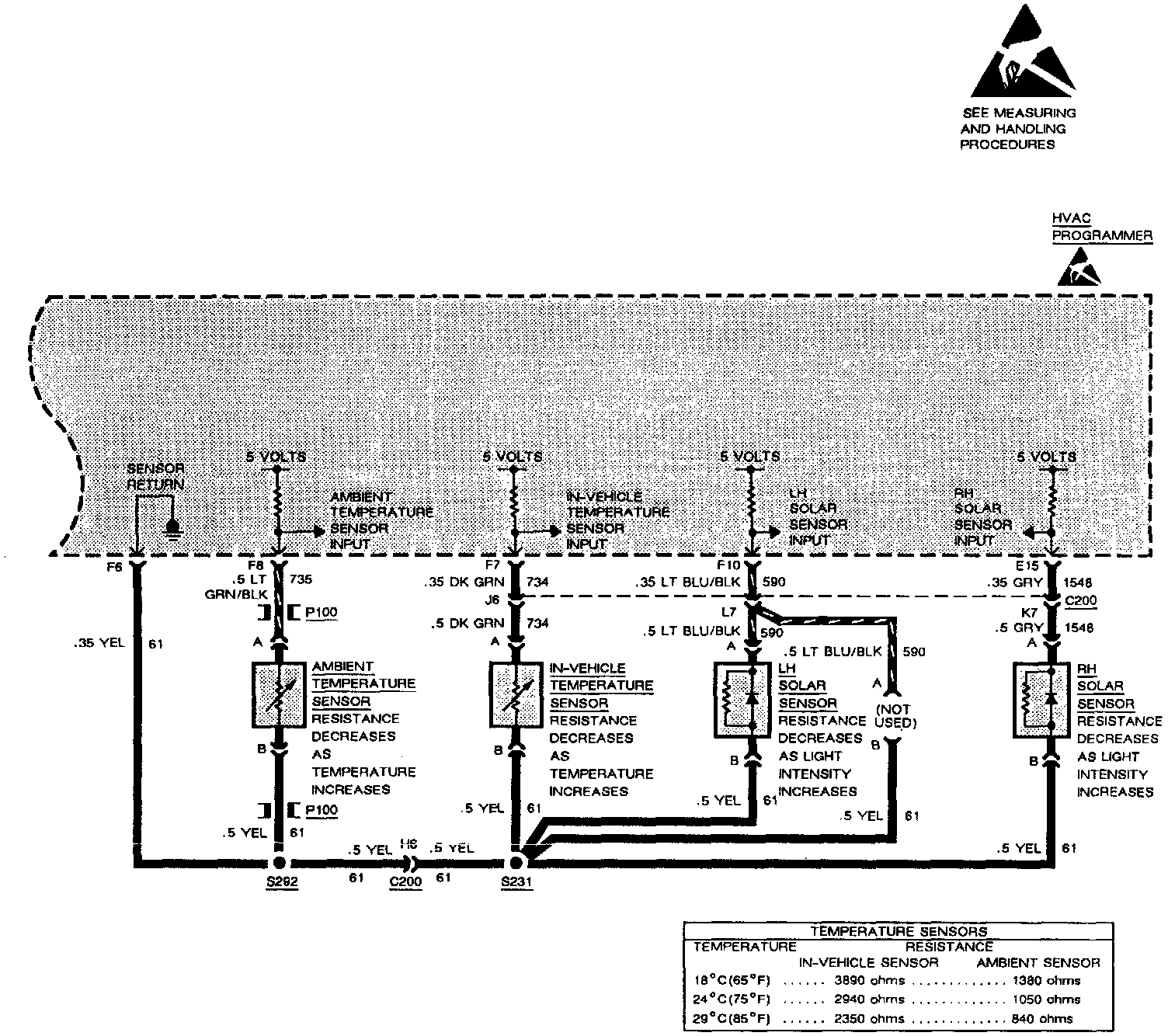

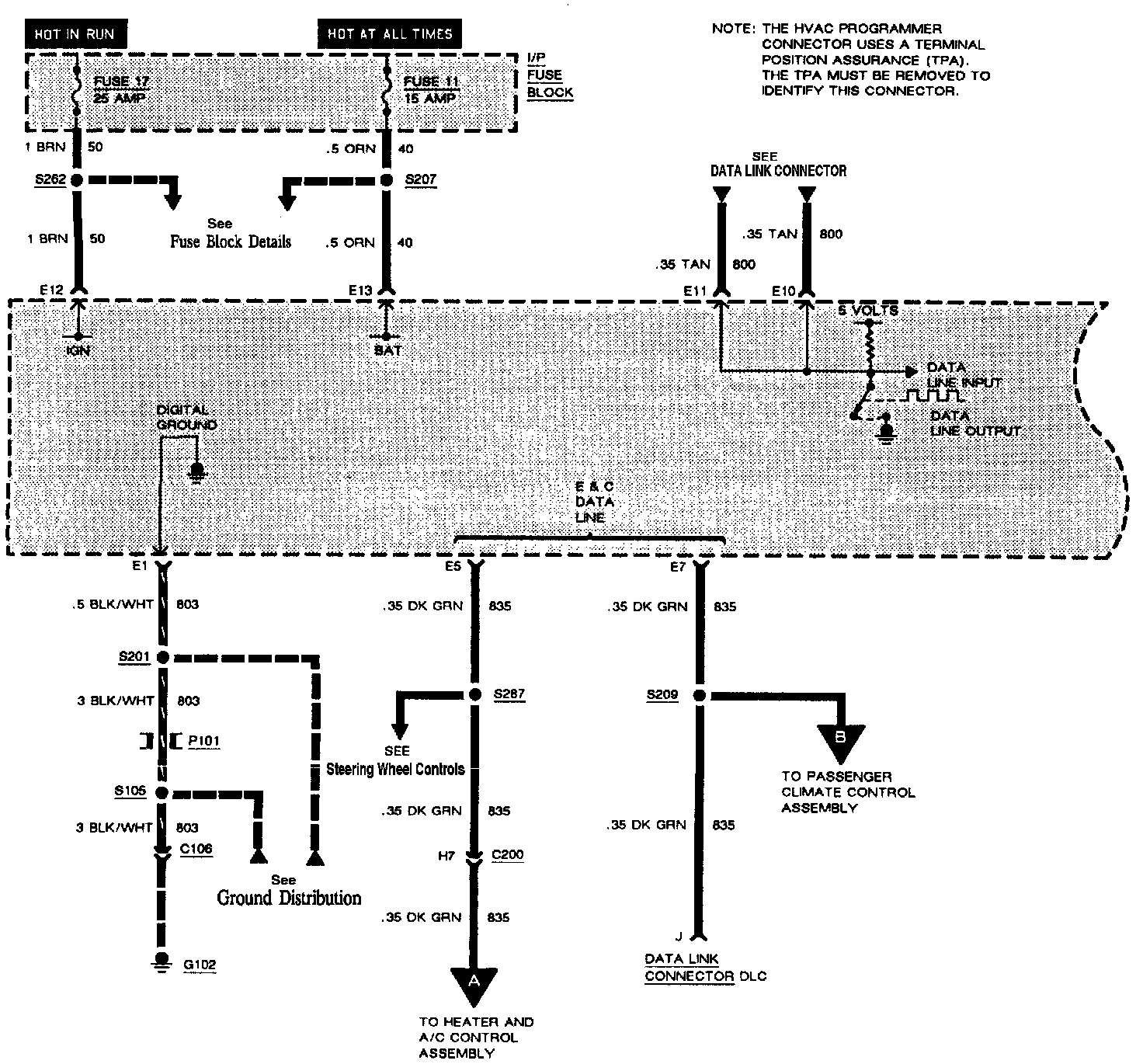

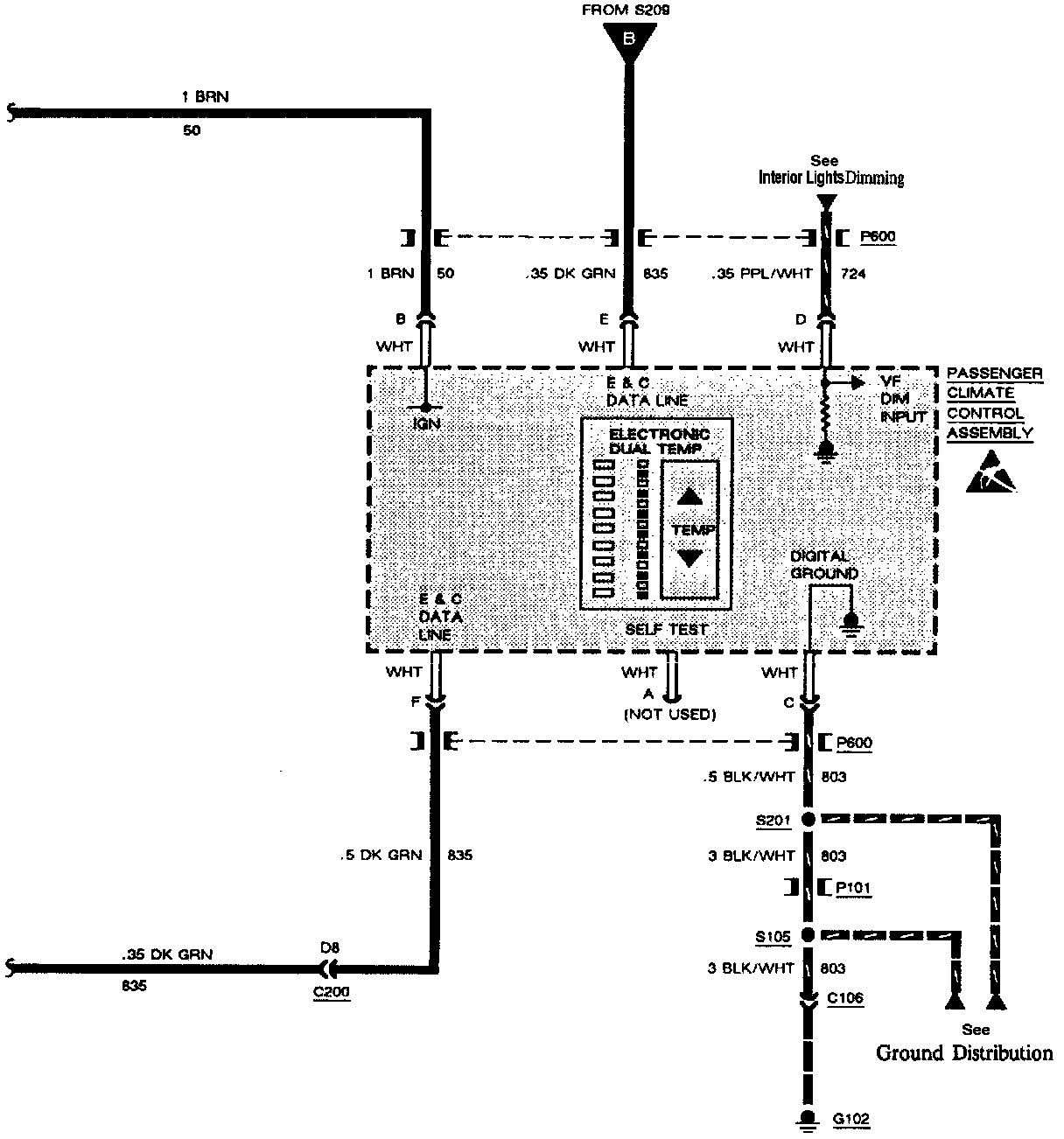

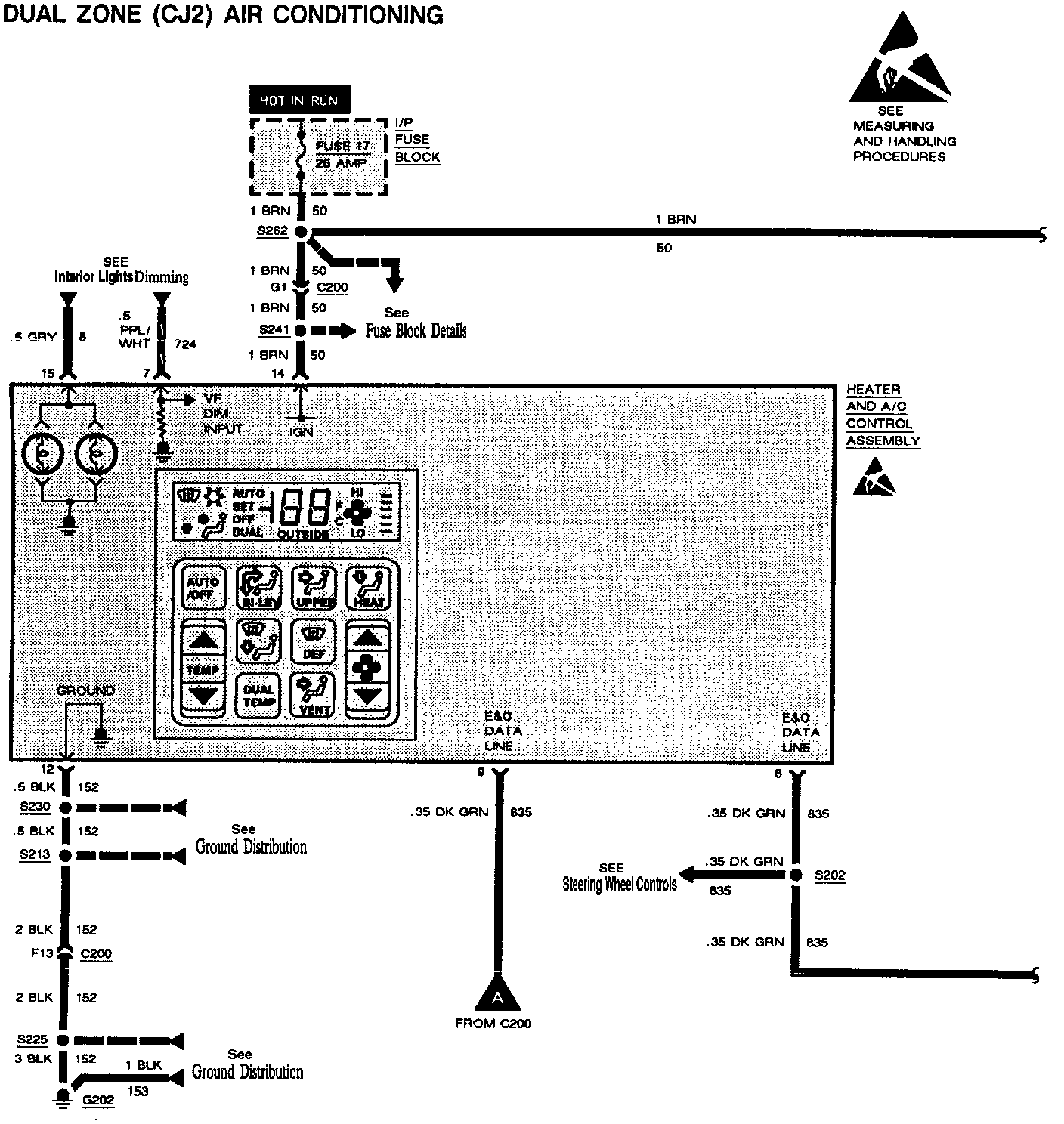

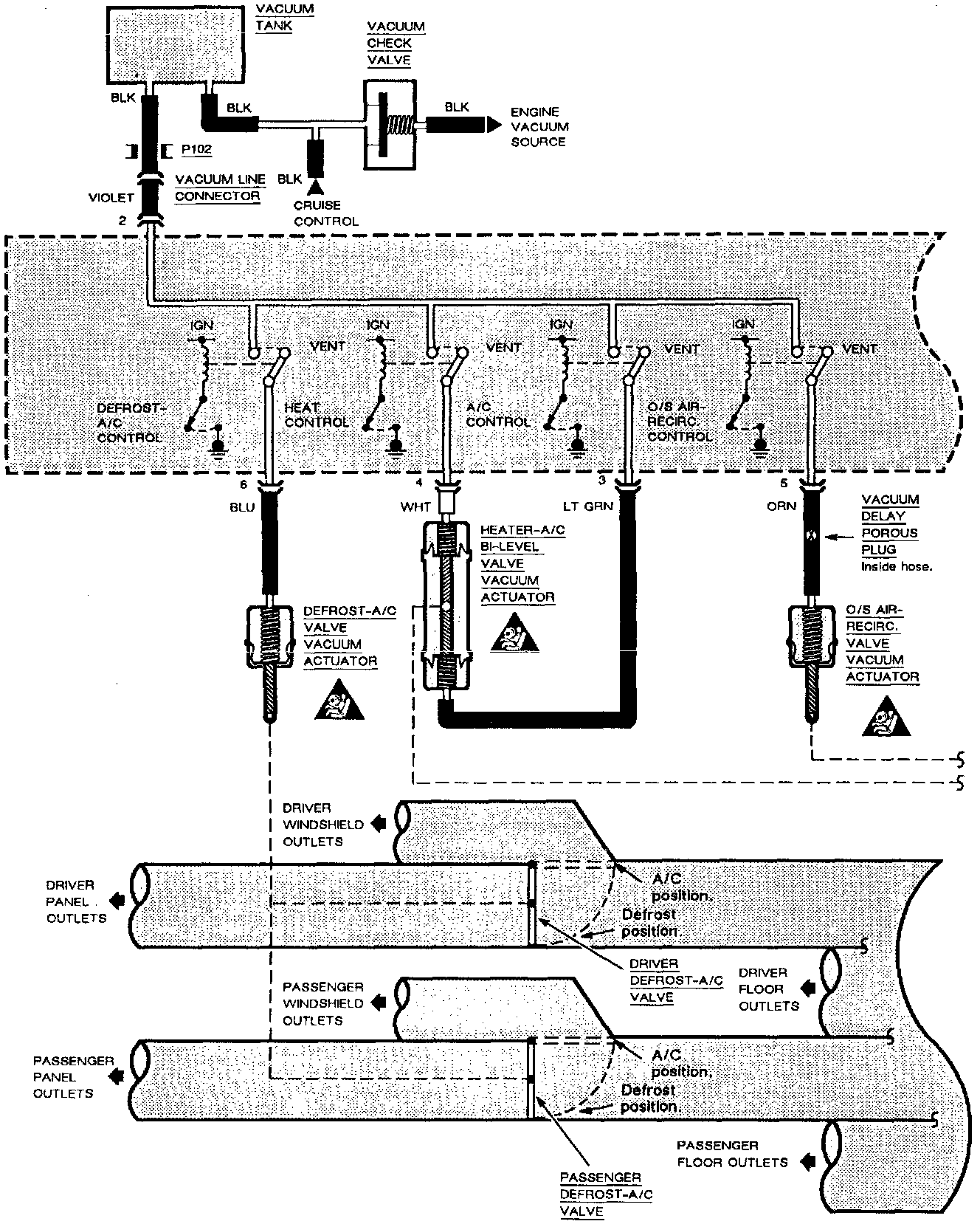

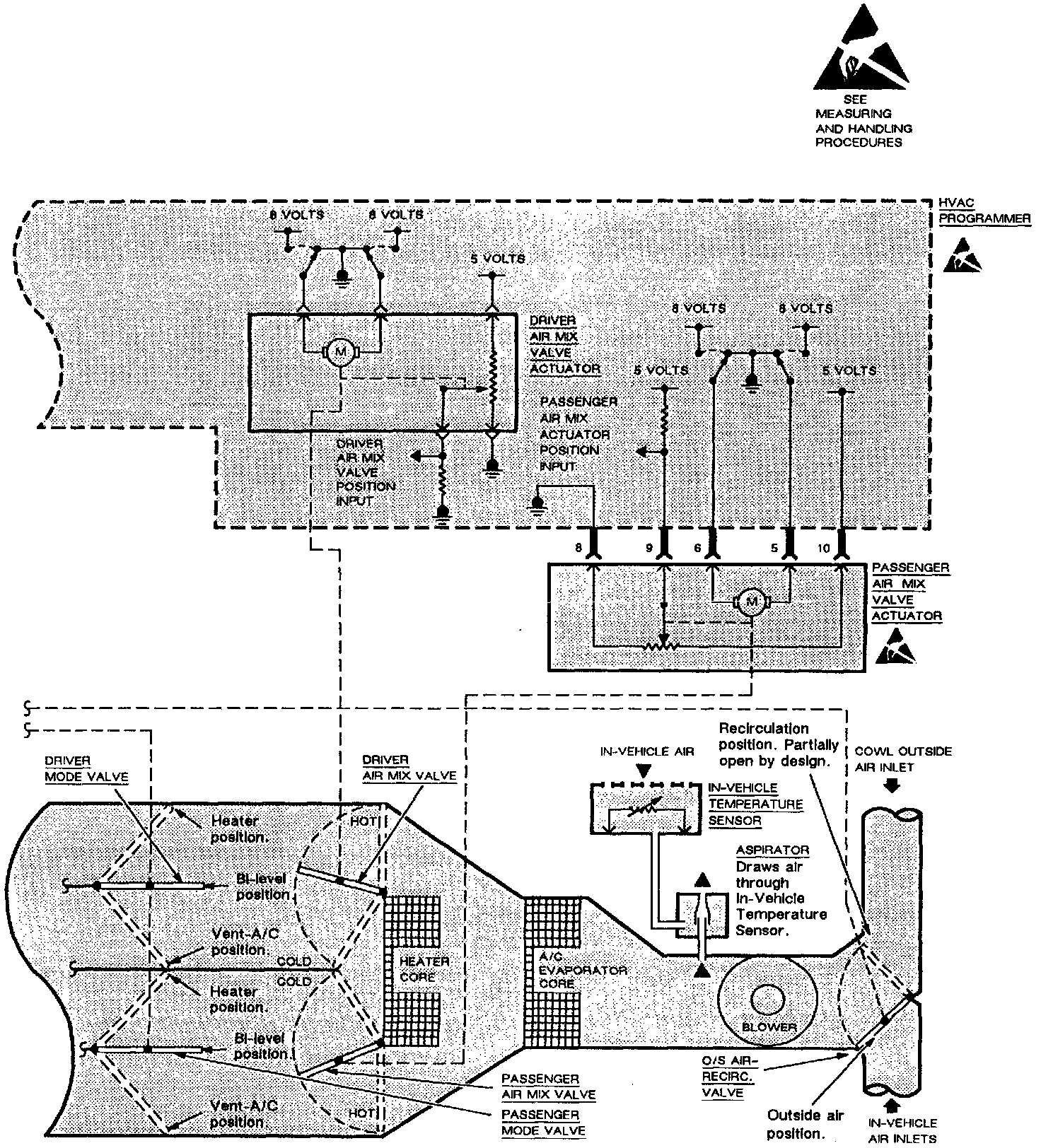

Electrical Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
