Home >> Oldsmobile >> 1991 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> With Electronic A/C >> Test D - ECM Compressor Control Test >> Table 2

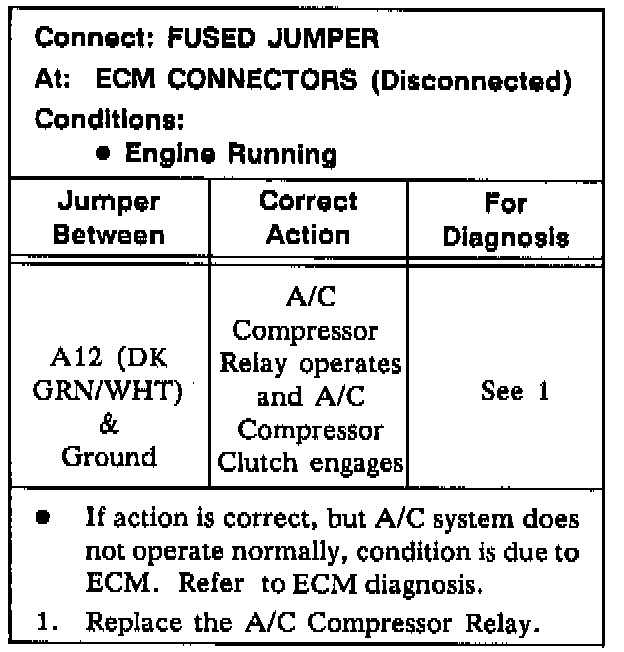

Table 2

D-ECM Compressor Control Test (Table 2):
