Home
>>
Oldsmobile
>>
1988
>>
Cutlass Supreme FWD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Housing Assembly HVAC
>>
Heater Module Assembly
Heater Module Assembly

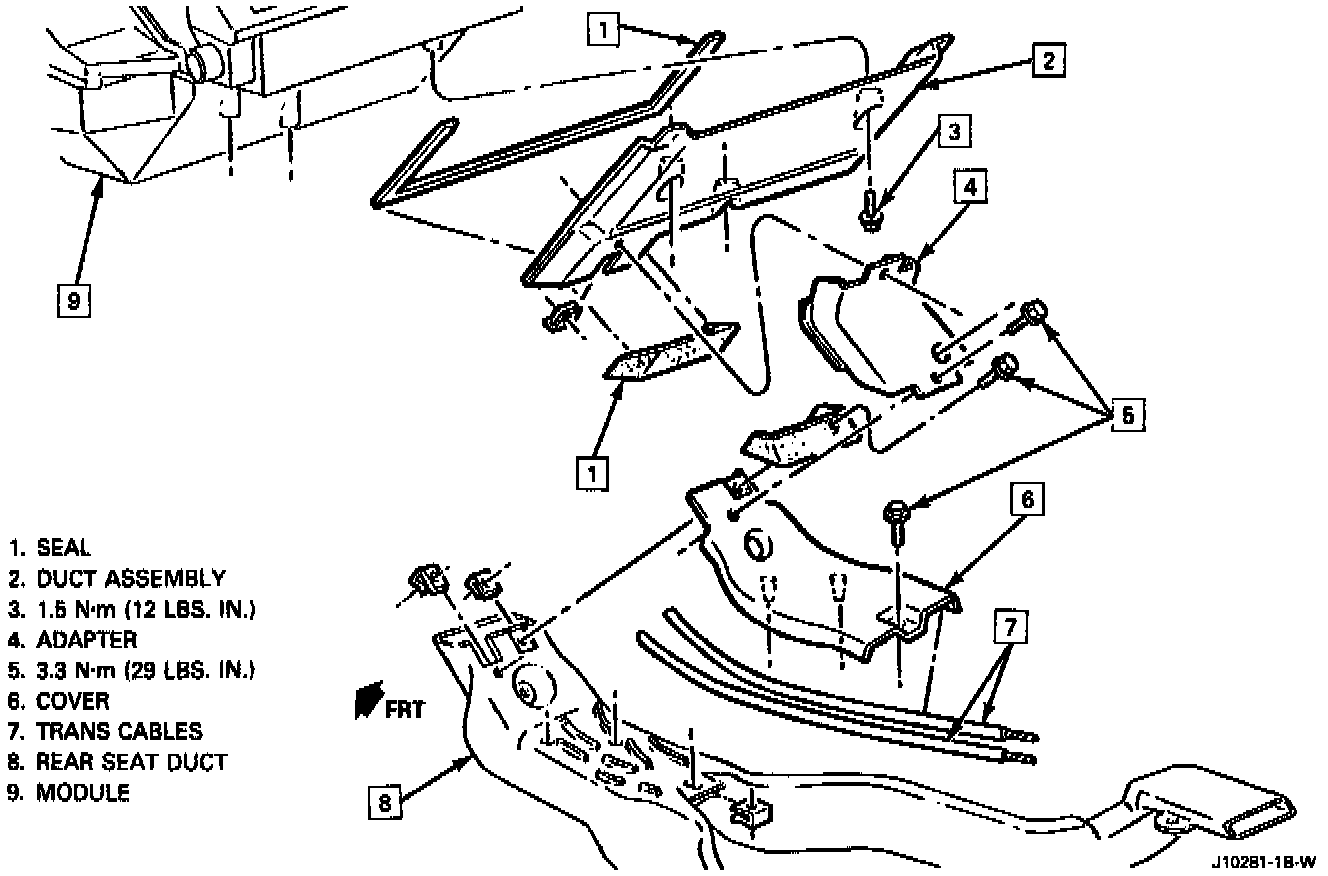

Heater Module And Air Inlet Assembly:
