Engine Control - Updated Code 54 (Fuel Pump CKT) Chart
88olds10SUBJECT SERVICE MANUAL REVISION NUMBER: 88-T-41
CODE 54 - FUEL PUMP CIRCUIT CORP. REF. NO.: 816515
DATE: March 1988
MODELS/YEARS 1988 CUTLASS CIERA WITH A 2.8L LB6
(VIN CODE W) V6 ENGINE
SECTION: 6E

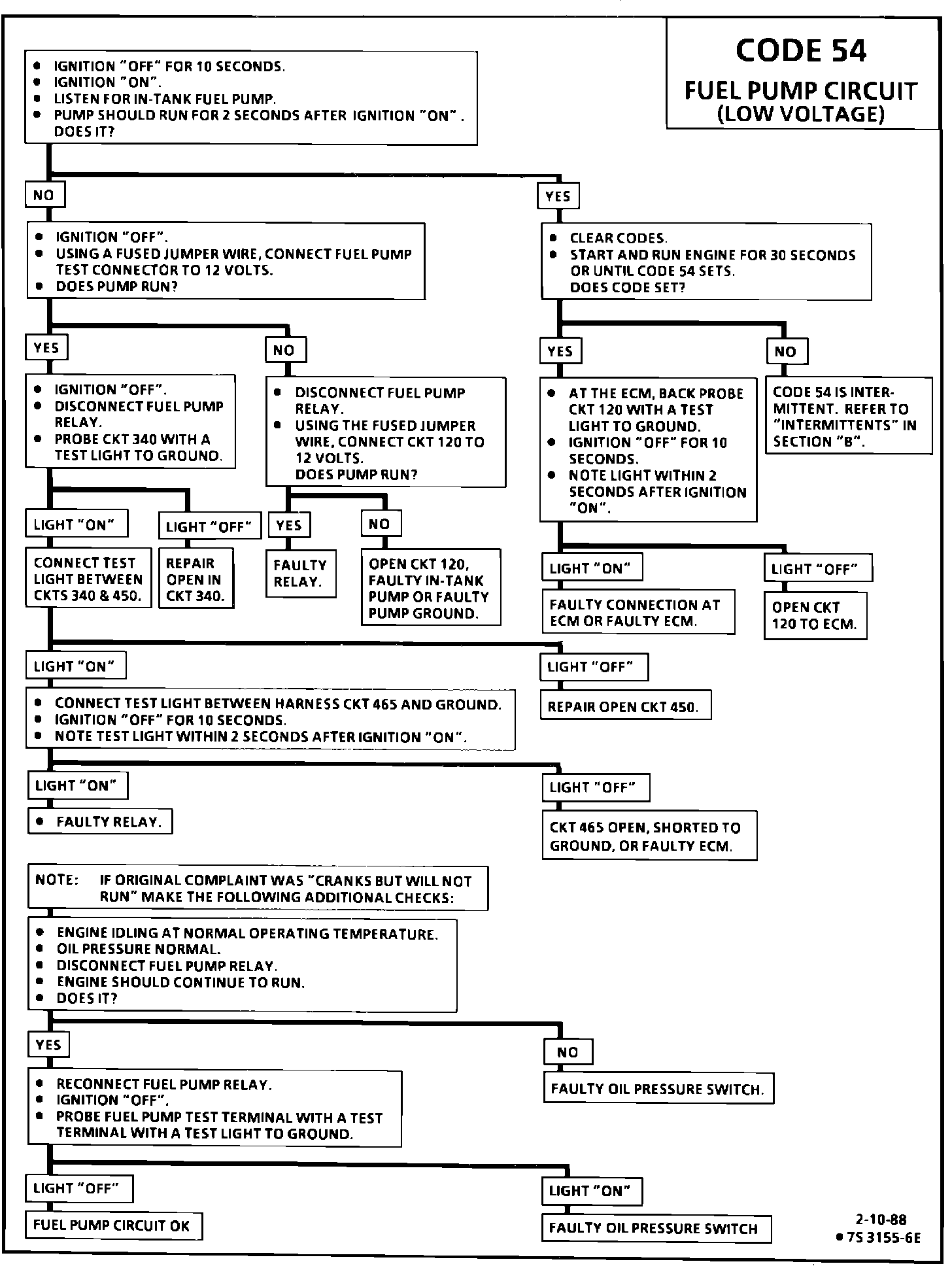

The revised Code 54 diagnostic chart is presented to accurately diagnose the Fuel Pump Circuit. This chart replaces the Code 54 charts found in the 1988 Chassis Service Manual for the previously mentioned engine application.
