Isolation Test

Trouble Isolation Test:

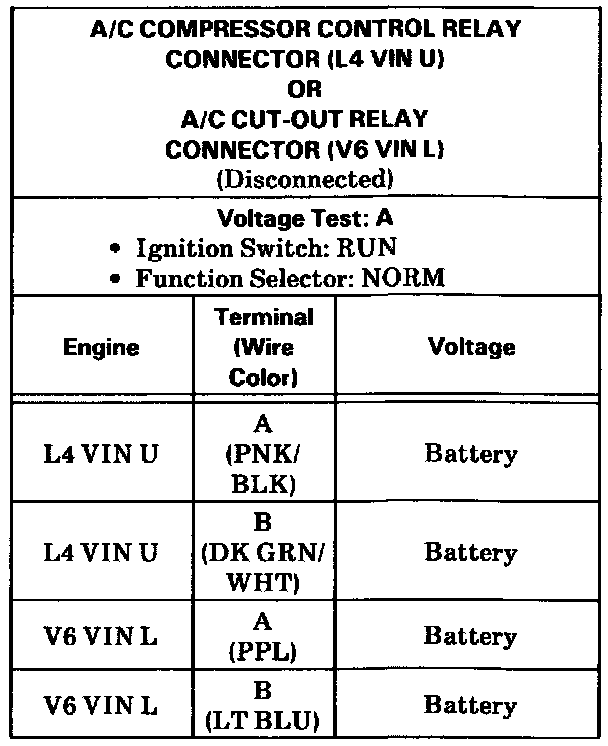

Turn the Ignition Switch to RUN but do not start the engine. Remove the connector from the A/C Compressor Control Relay and measure the voltage to ground at the terminals of the connector shown in the chart.

^ If all voltages are correct, proceed to A/C Compressor Clutch Tests. A/C Compressor Clutch Test
