Transfer Case
>>
System Diagram
>>
New Venture 233 (Electric Shift Transfer Case)
>>
Transfer Case Select Switch W/Auto. Trans.
Transfer Case Select Switch W/Auto. Trans.

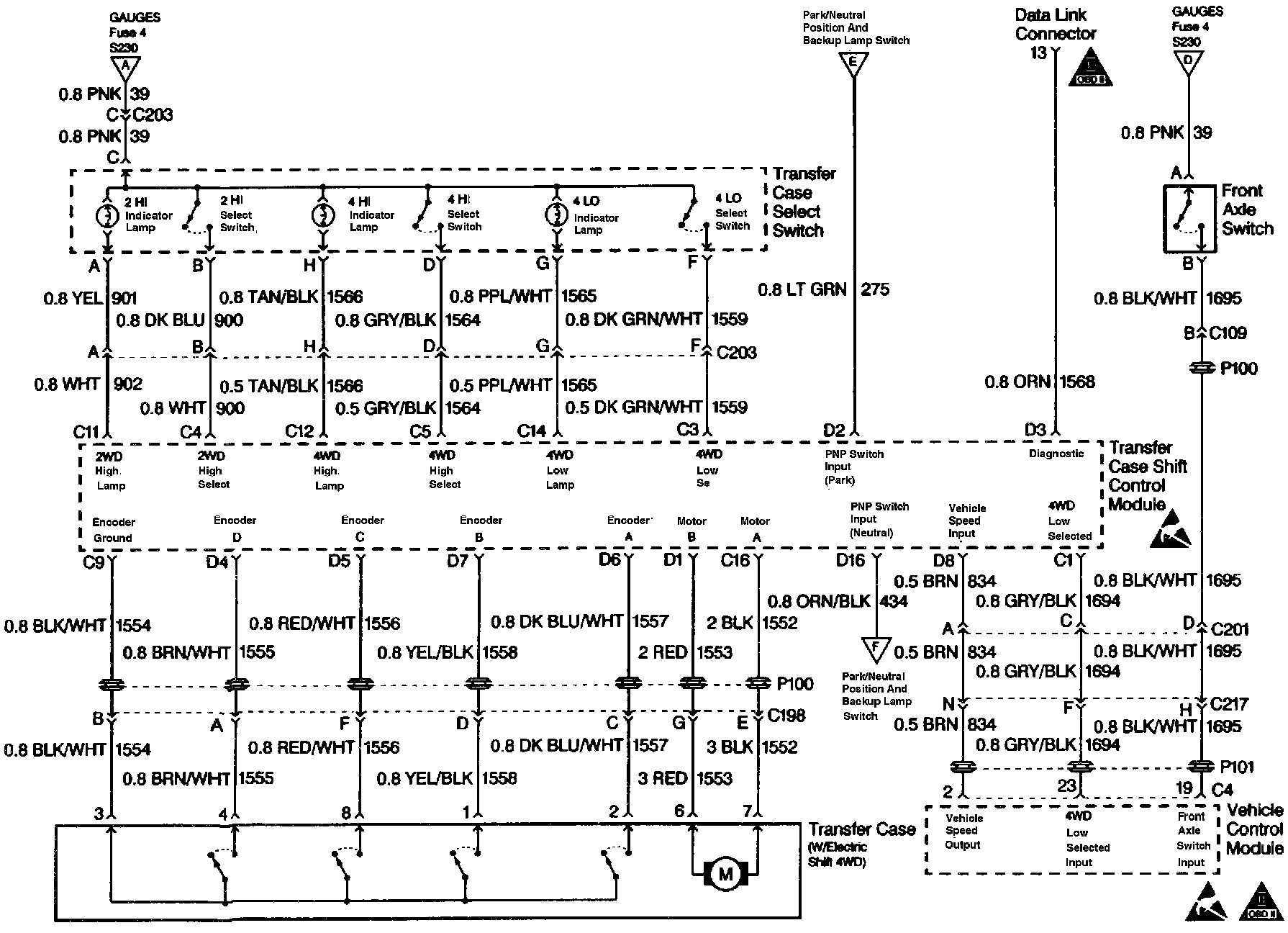

Electric Shift 4WD (NP1): Transfer Case Select Switch With A/T:
