Oldsmobile Truck
>>
1990
>>
Silhouette V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
Compressor Cross Section
Compressor Cross Section

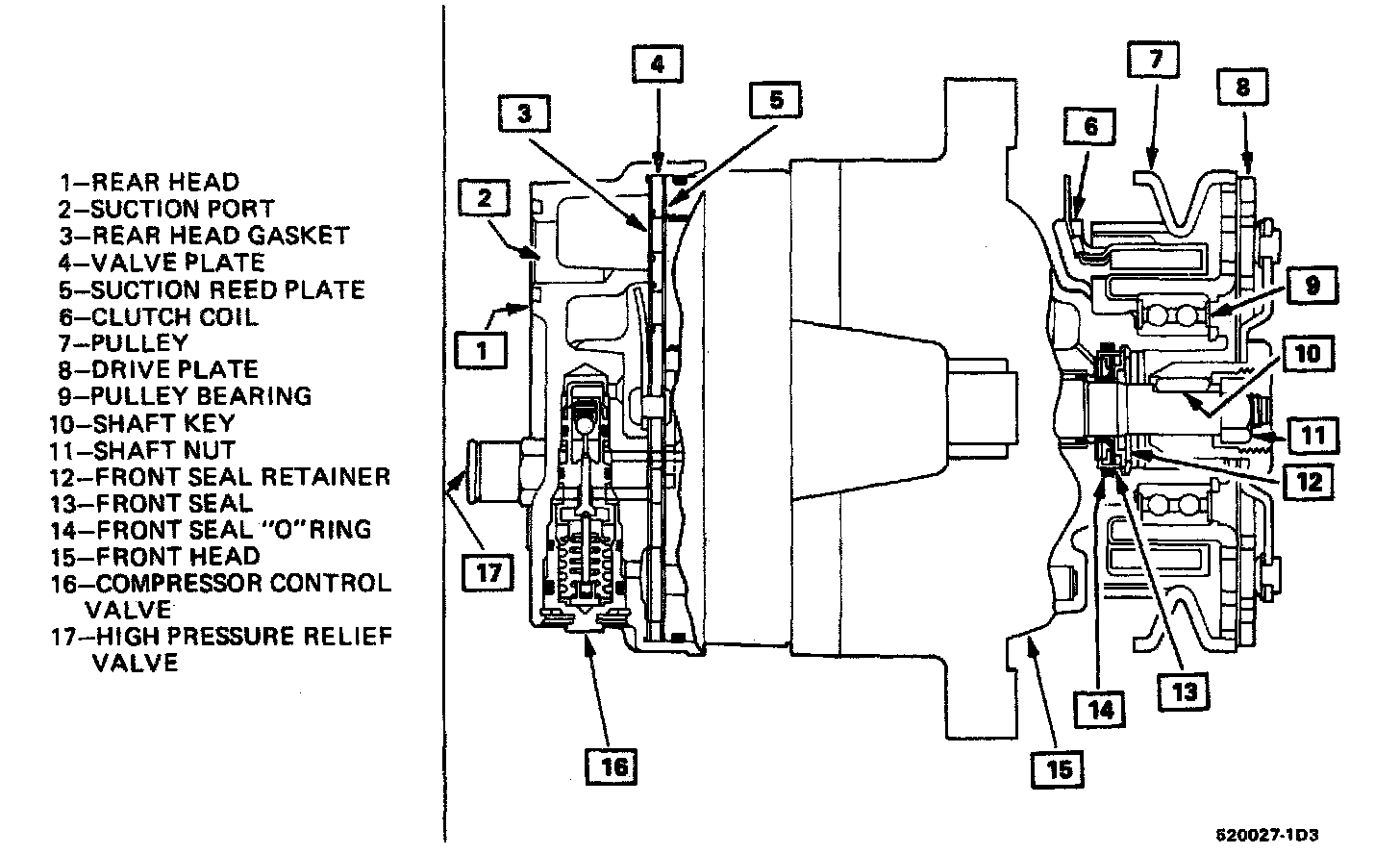

V5 Compressor - Cross Section:
