Terminal And Reference Value
>>
Audio Unit (Mid System) Audio Without Navigation
Audio Unit (Mid System) Audio Without Navigation
AUDIO

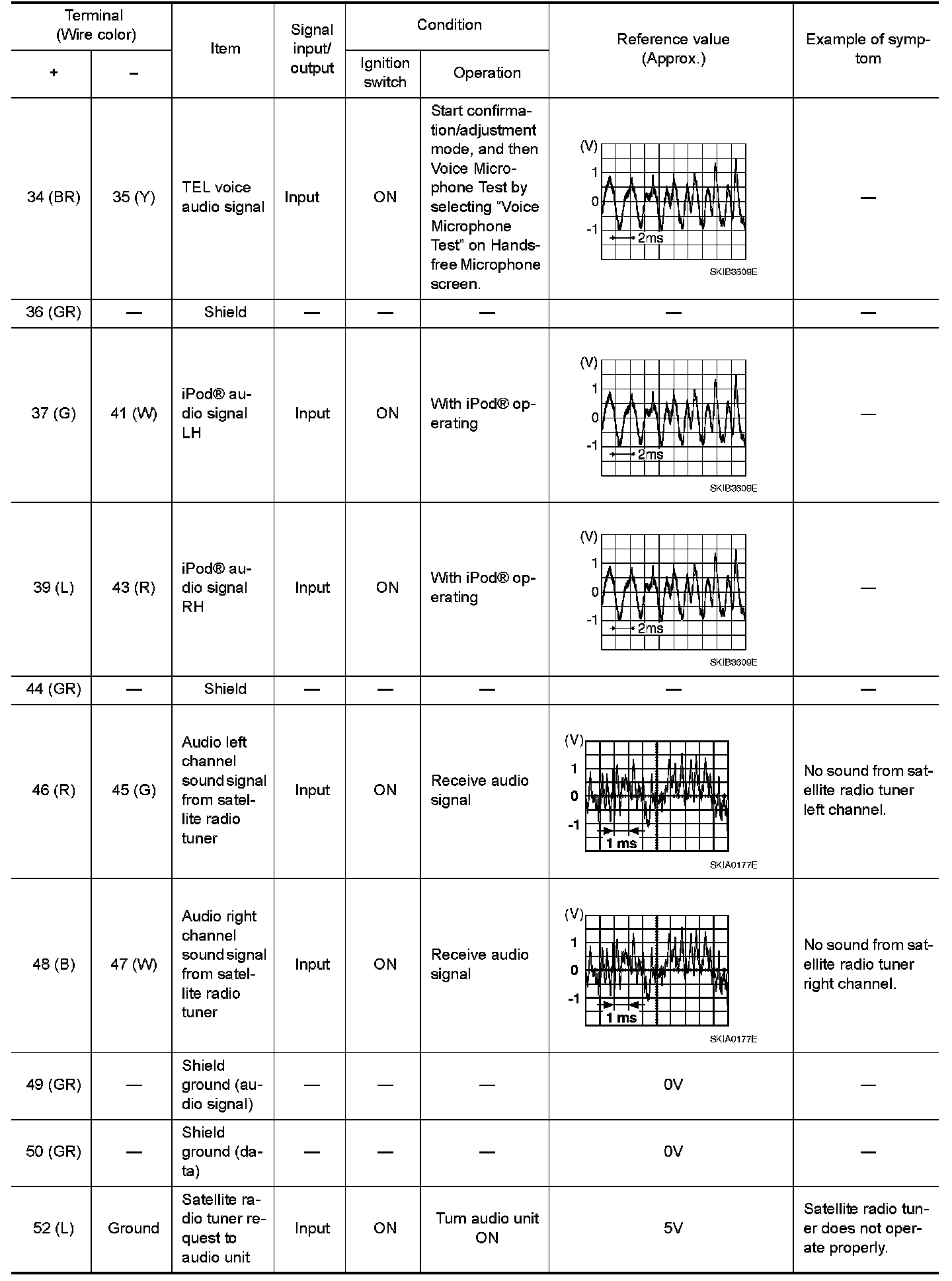

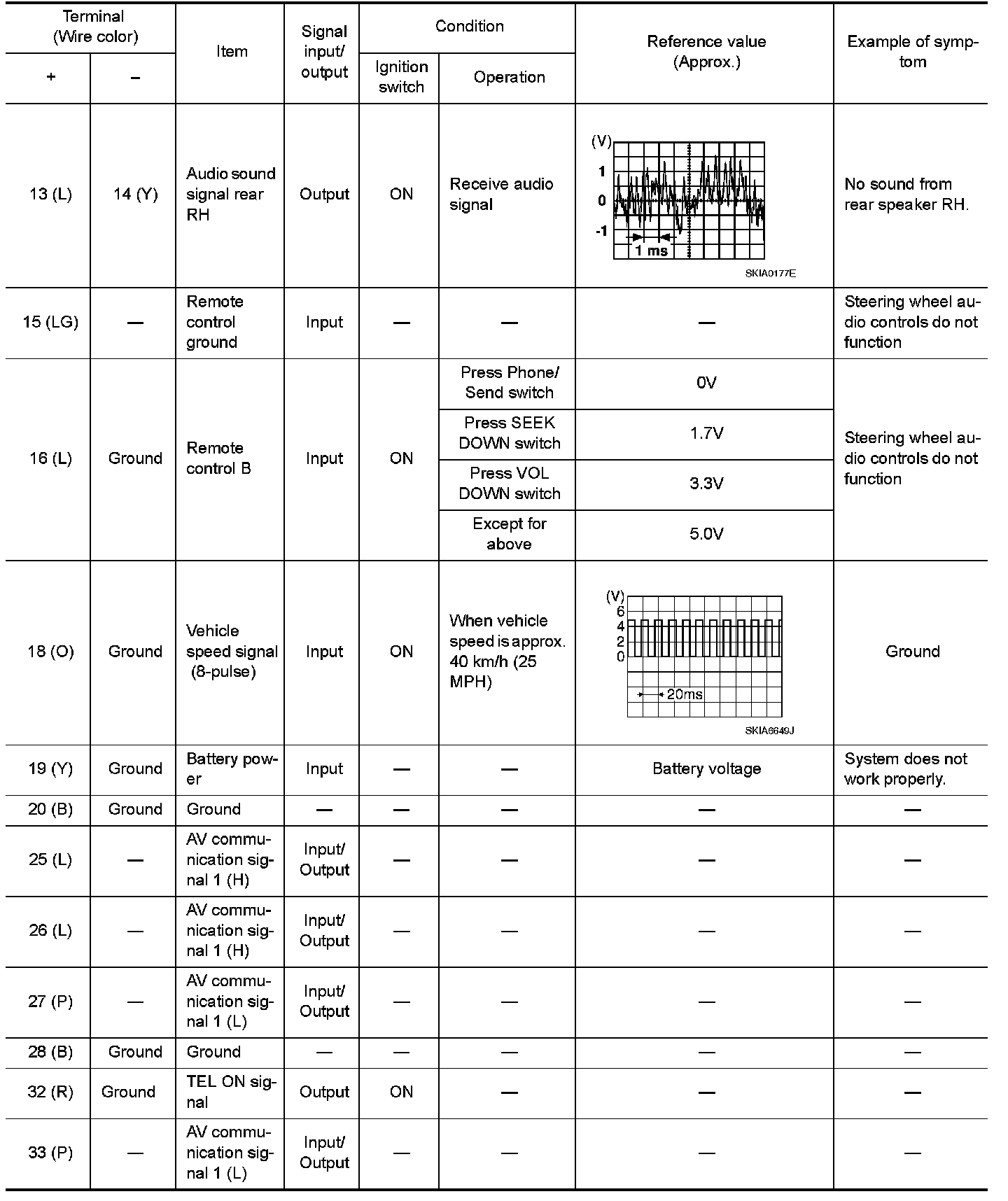

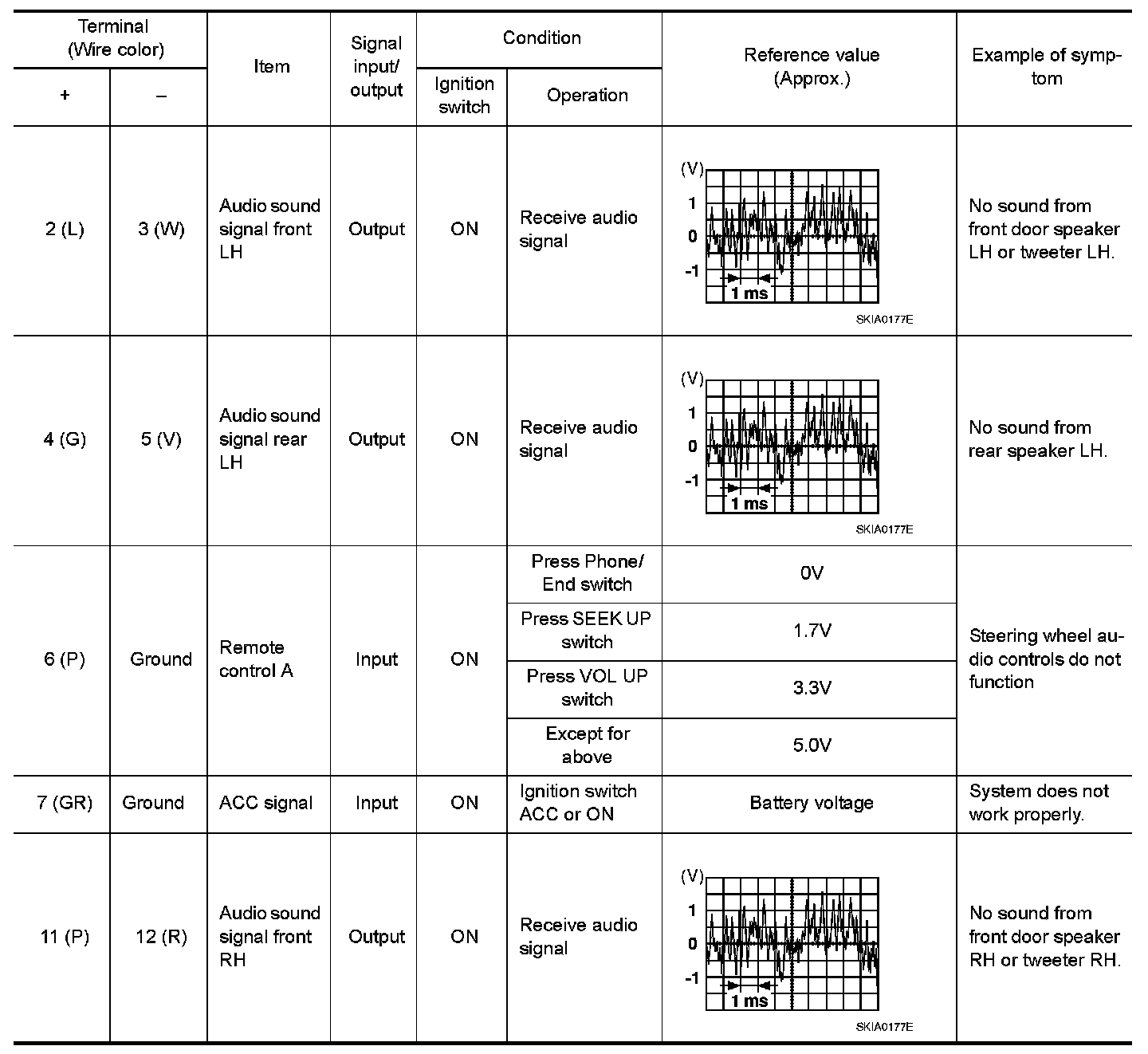

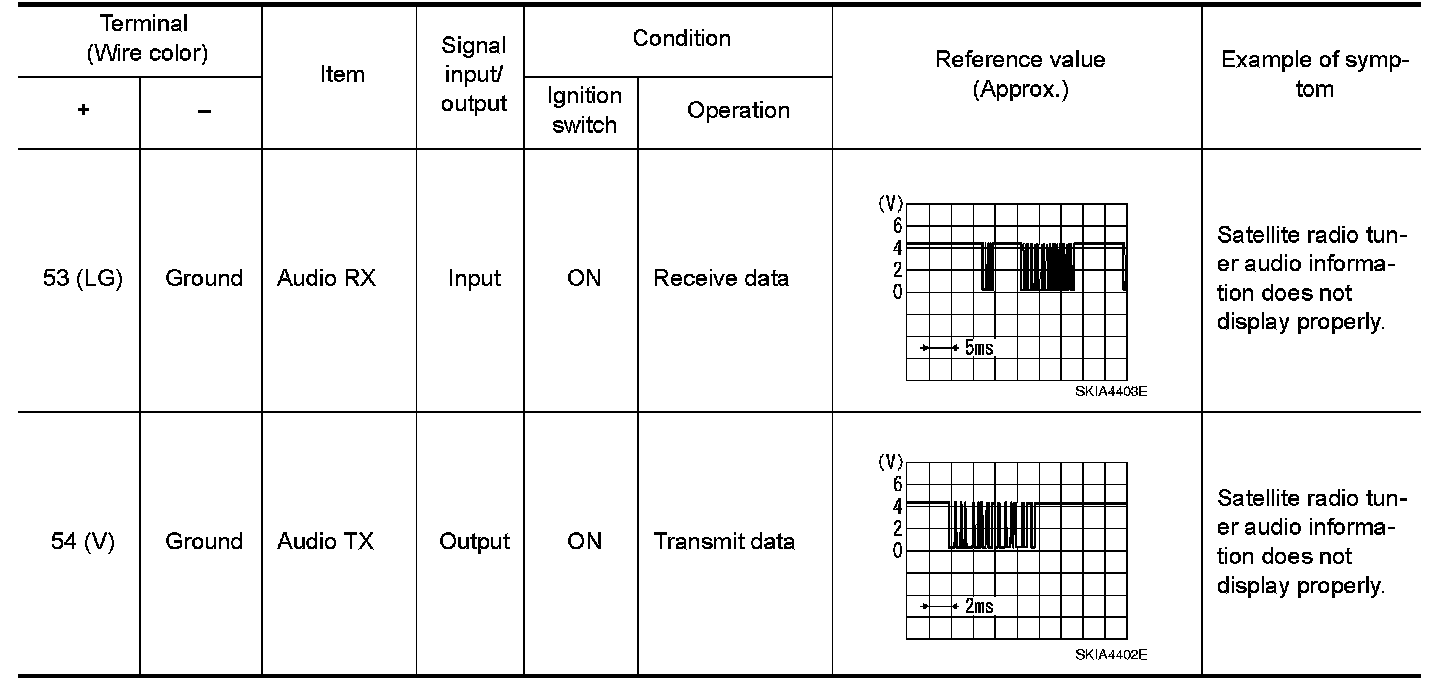

Terminal and Reference Value for Audio Unit (Mid System)
