Nissan-Datsun
>>
2009
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
Engine Control System
>>
For California
For California

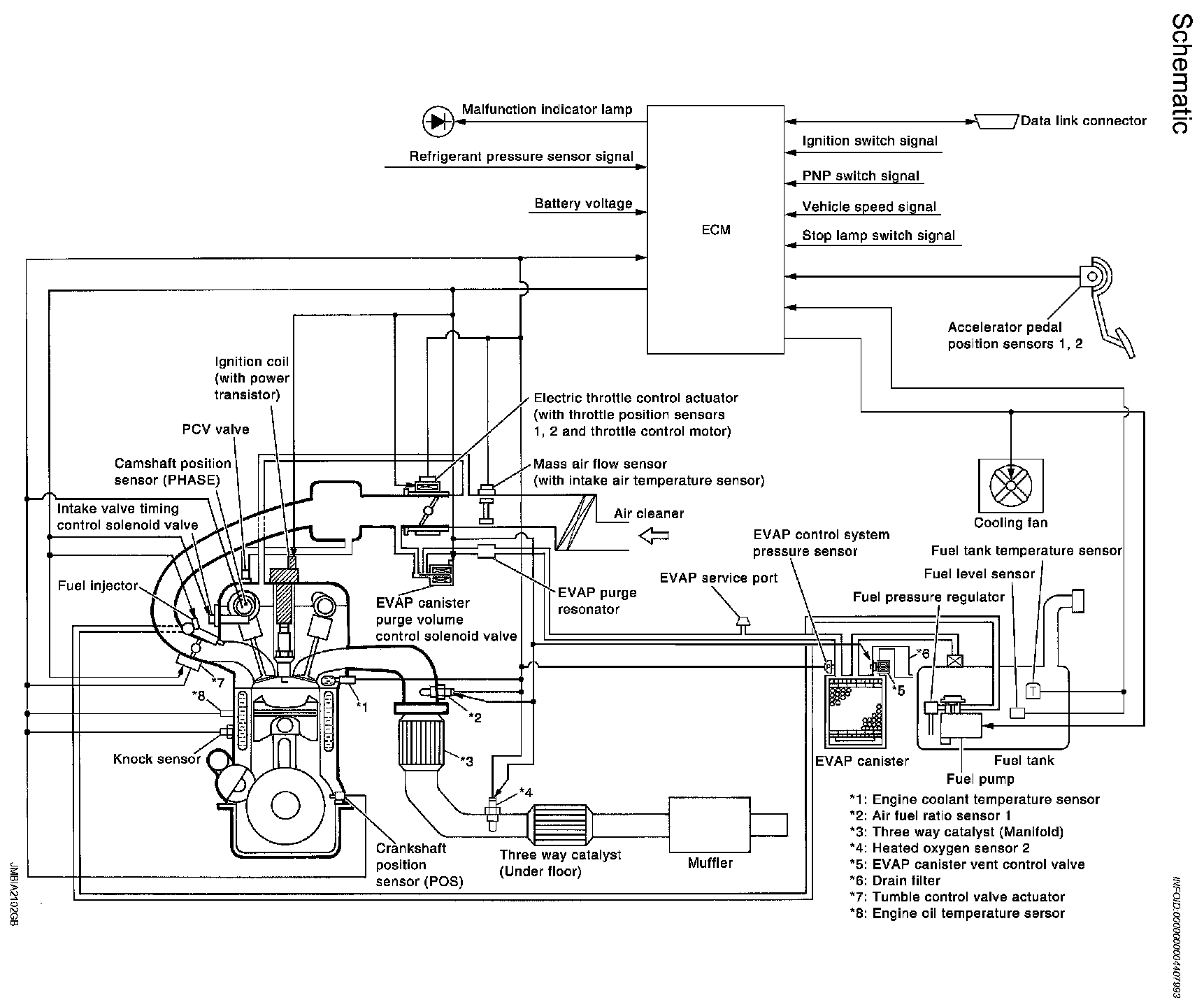

ENGINE CONTROL SYSTEM
Schematic
