Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Component Tests and General Diagnostics >> Main Line Between ABS and DLC Circuit

Main Line Between ABS and DLC Circuit

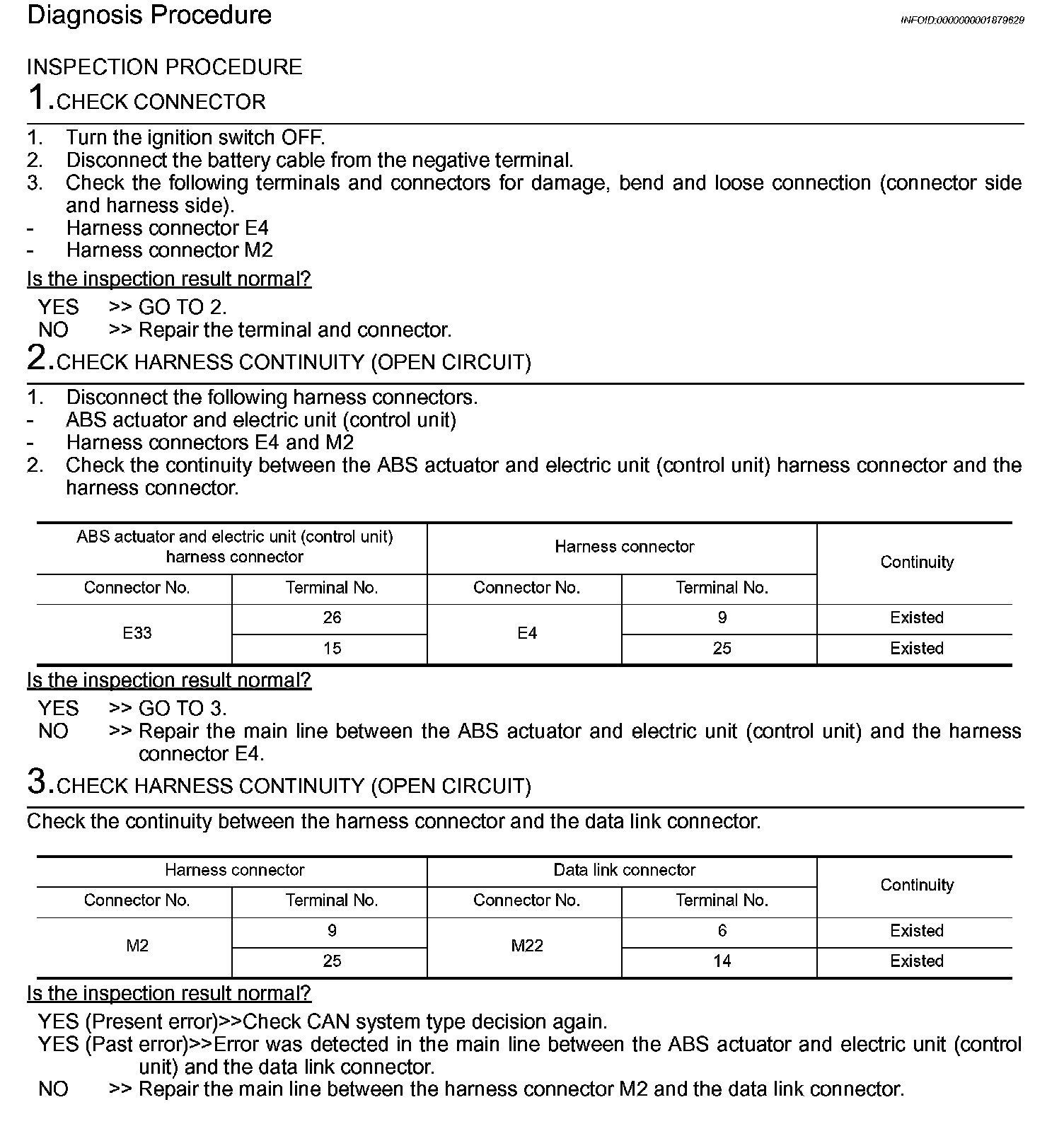

Step 1-3:
