Intelligent Key Unit Branch Line Circuit
Intelligent Key Unit Branch Line Circuit

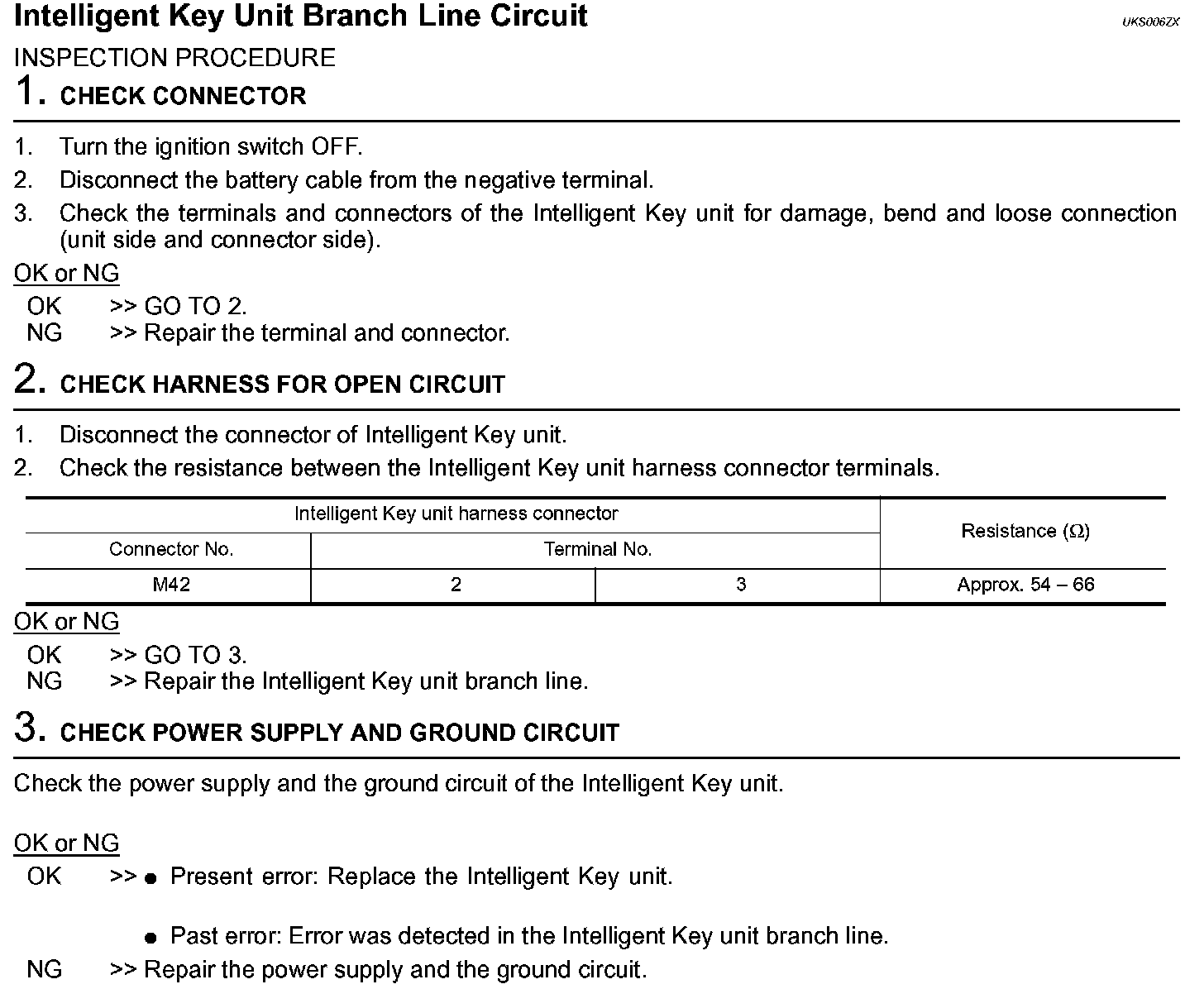

Intelligent Key Unit Branch Line Circuit:
