Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.5L (QR25DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminals and Reference Values For Audio Unit (Base System)

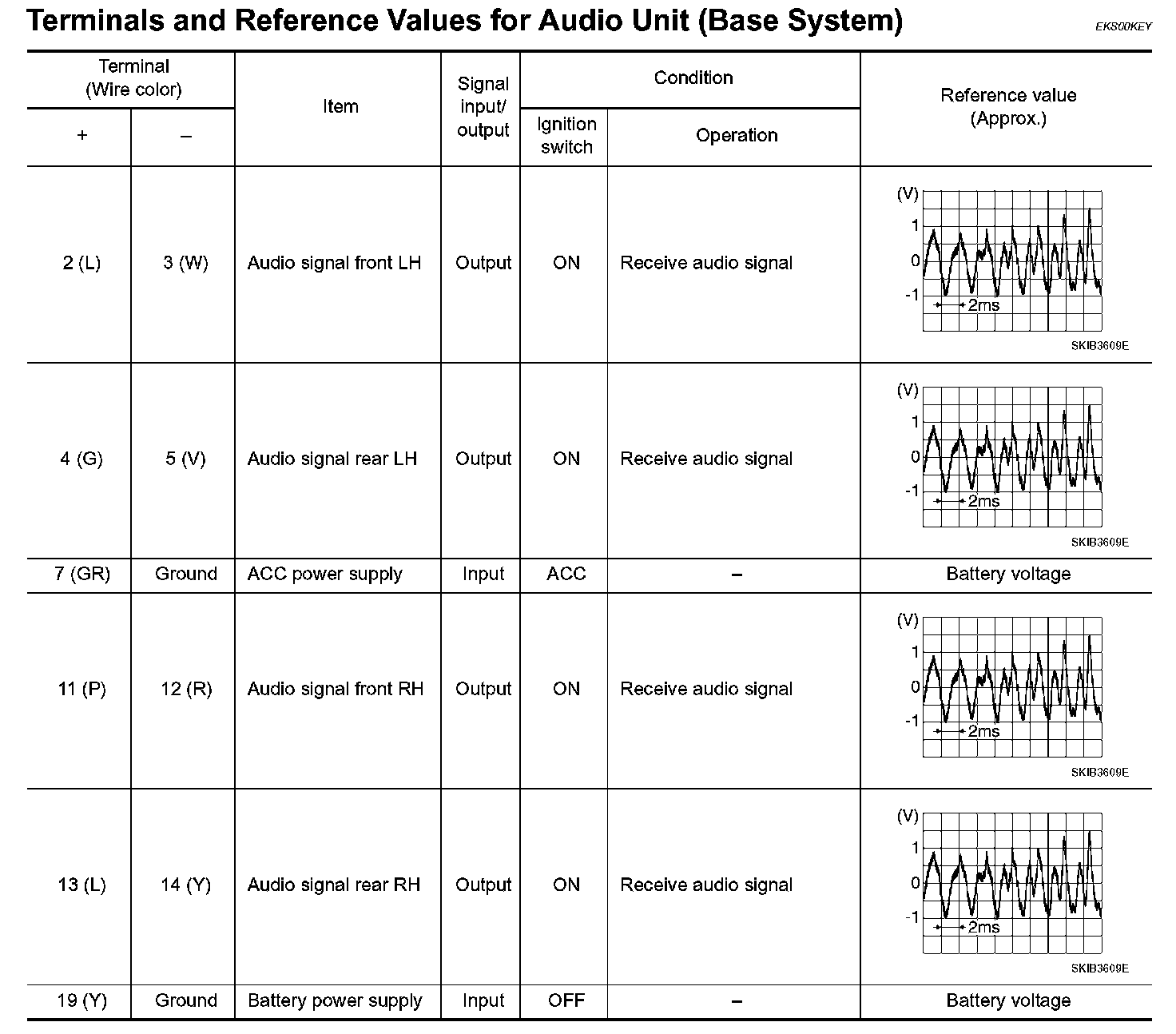

Terminals and Reference Values For Audio Unit (Base System)

Terminals And Reference Values For Audio Unit (Base System):
