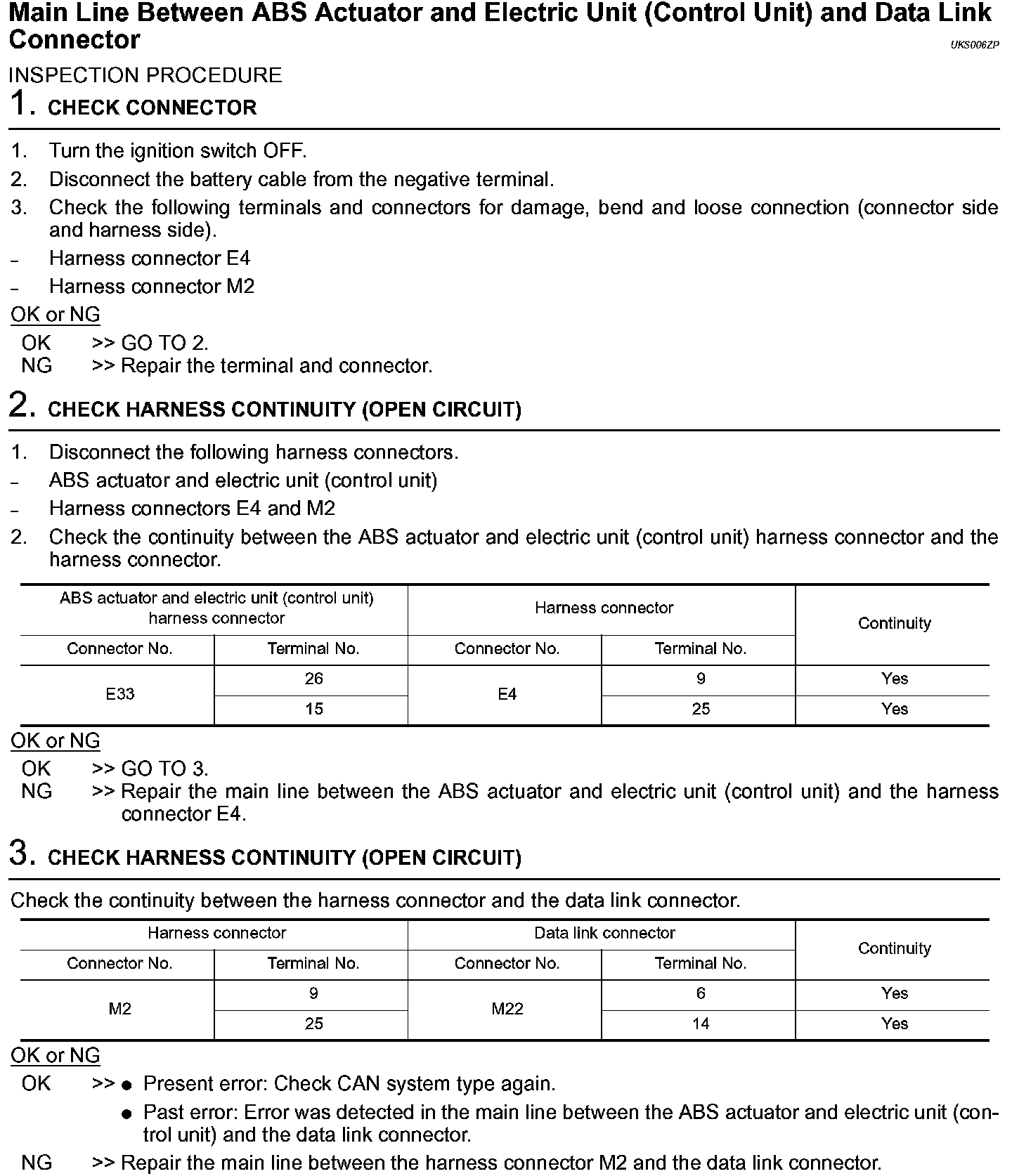

Main Line Between ABS Actuator and Electric Unit (Control Unit) and Data Link Connector
Main Line Between ABS Actuator And Electric Unit (Control Unit) And Data Link Connector:
