A/T (5 Spd) - Cold Up-Shift Shock: Overview

Classification:
AT04-004

Reference:
NTB04-045

Date:
April 19, 2004

2004 MAXIMA WITH 5 SPEED A/T ONLY; TRANSMISSION SHIFT SHOCK WHEN COLD

APPLIED VEHICLE:
2004 Maxima (A34) with 5 speed A/T only

NOTE:
Models with 4 speed A/T or 6 speed M/T are not covered by this TSB.

APPLIED VIN:
Vehicles built before 1N4BA41E(*)4C 868337

APPLIED DATE:
Vehicles built before November 3, 2003

IF YOU CONFIRM:

When the transmission is cold, there is "shift-shock" during transmission "up-shifts",

ACTIONS:

A. Confirm this bulletin applies:

^ Check the Current TCM Part Number.

^ Compare your Current TCM Part Number to Chart A.

If that part number does not match one in Chart A, this bulletin does not apply. Go back to ASIST for further diagnostic and repair information.

B. Check to see if ECM reprogramming is needed.

C. Perform reprogramming by "special ID lookup" -a special process for this TSB only.

IMPORTANT:
The purpose of "ACTIONS" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

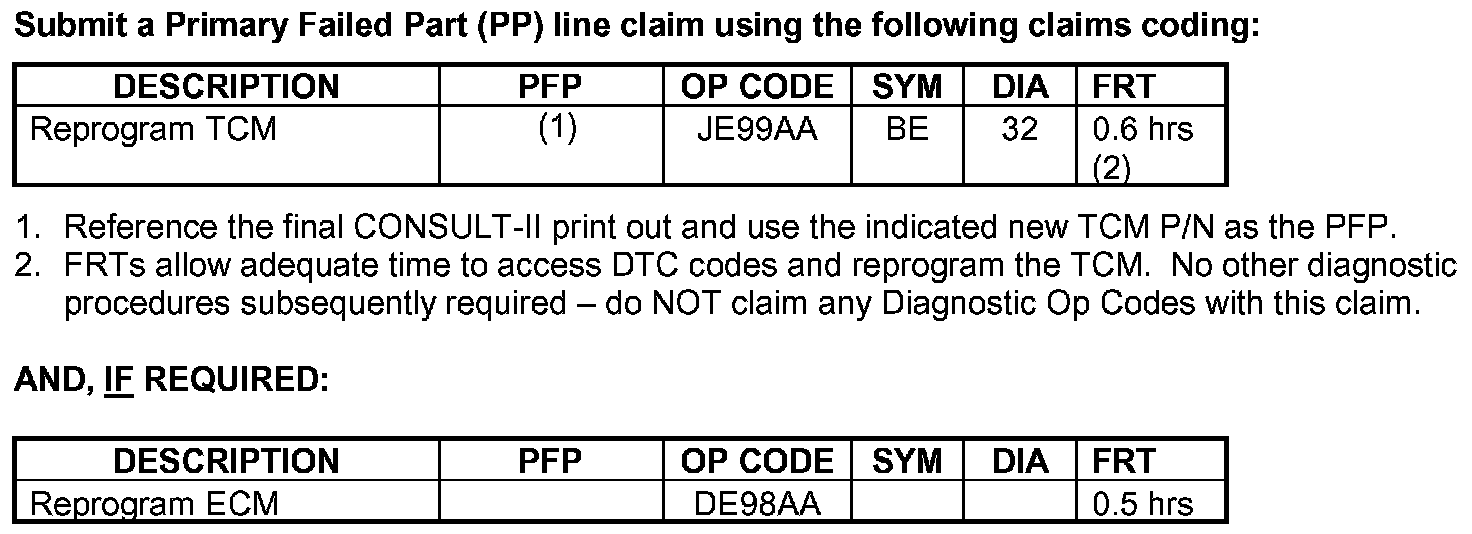

CLAIMS INFORMATION
